Rittal

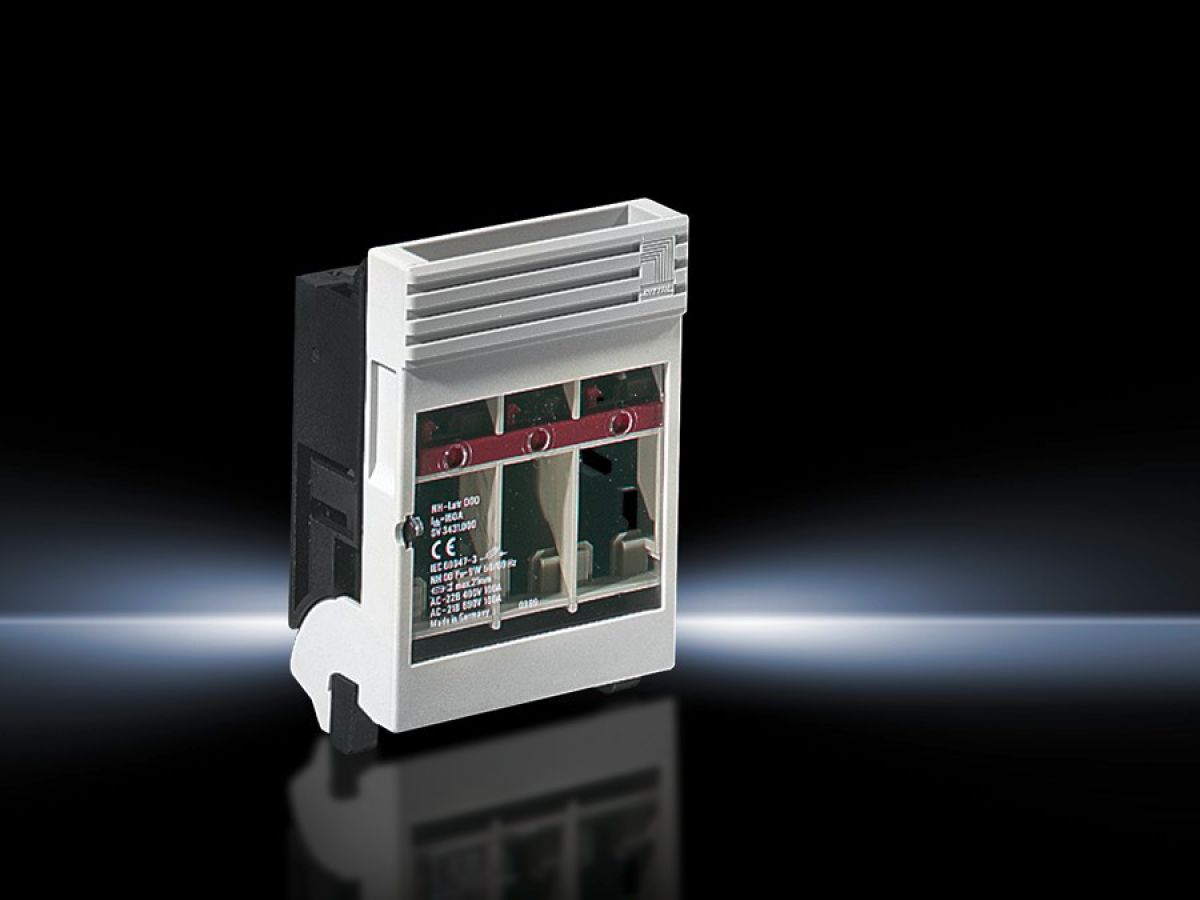

Rittal SV 3431.000, NH fuse-switch-disconnectors, size 000 for mounting plate assembly
Rittal SV 3431.000, NH fuse-switch-disconnectors, size 000 for mounting plate assembly
Regular price
€48,05
Regular price
Sale price
€48,05
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 3431.000
NH fuse-switch-disconnectors, size 000 for mounting plate assembly
| Article number: | SV 3431.000 |
| Design | For mounting plate assembly |
| Material | Fibreglass-reinforced polyamideFire protection corresponding to UL 94Contact tracks: Silver-plated hard copper |
| Colour | Chassis: RAL 9011Cover: RAL 7035 |
| Clamping area for laminated copper bars | Clamping area width: 10 mmClamping area height: 10 mm |
| for mounting plate assembly | Yes |
| Cable outlet | Top/bottom |
| Type of electrical connection | Box terminal |
| Rated operating current max. | 100 A |
| Rated operating voltage | 690 V, 3~ |
| For NH size | 000 |
| Test specification | IEC/DIN EN 60 947-3 |
| Dimensions | Width: 89 mmHeight: 141.5 mm |
| Connection of round conductors | 1.5 ‐ 50 mm² |
| Number of poles | 3-pole |
| Packs of | 1 pc(s). |
| Net weight | 0.401 kg |
| Gross weight | 0.453 kg |
| Copper weight (kg per piece) | 0.15 |
| Customs tariff number | 85369095 |
| EAN | 4028177042391 |
| ETIM 9 | EC000249 |
| ETIM 8 | EC001040 |
| ECLASS 8.0 | 27371401 |
| Product description | SV NH fuse-switch disconnector, size 000, 100 A, 690 V, 3-pole, box terminal, for mounting plate assembly |
