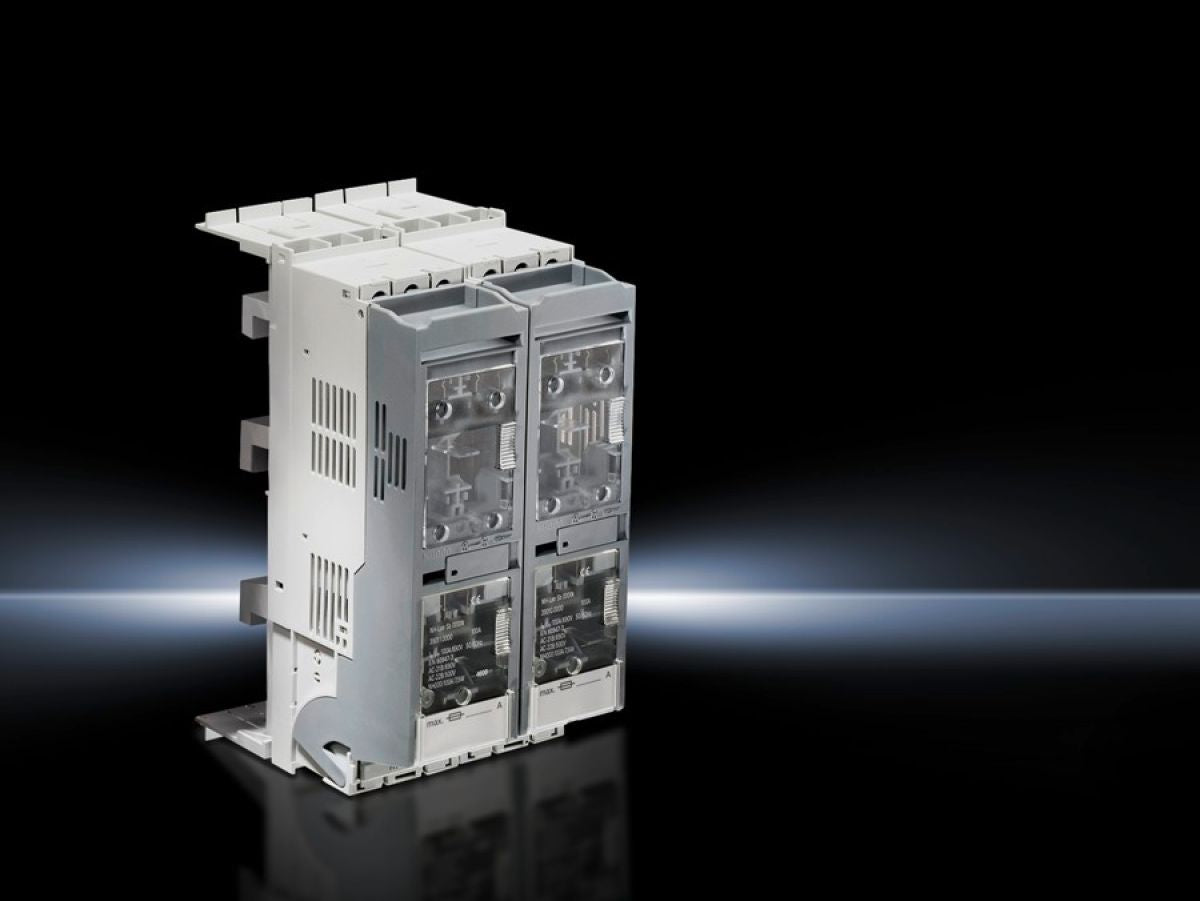

Rittal SV 3431.020, NH fuse-switch-disconnectors, size 000
Rittal SV 3431.020, NH fuse-switch-disconnectors, size 000
Regular price
€70,18
Regular price
Sale price
€70,18
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 3431.020
NH fuse-switch-disconnectors, size 000
| Article number: | SV 3431.020 |
| Material | Fibreglass-reinforced polyamideFire protection corresponding to UL 94Contact tracks: Silver-plated hard copper |
| Colour | Chassis: RAL 7035Cover: RAL 7001 |
| For bar systems with centre-to-centre spacing | 60 mm |
| Cable outlet | Top |
| Type of electrical connection | Box terminal |
| Rated operating current max. | 100 A |
| Rated operating voltage | 690 V, 3~ |
| For NH size | 000 |
| Test specification | IEC/DIN EN 60 947-3 |
| Dimensions | Width: 53 mmHeight: 213 mm |
| Connection of round conductors | 2.5 ‐ 50 mm² |
| To fit busbars | Height: 5, 10 mm |
| Number of poles | 3-pole |
| Packs of | 1 pc(s). |
| Net weight | 0.619 kg |
| Gross weight | 0.64 kg |
| Copper weight (kg per piece) | 0.15 |
| Customs tariff number | 85369095 |
| EAN | 4028177628724 |
| ETIM 9 | EC000249 |
| ETIM 8 | EC001040 |
| ECLASS 8.0 | 27371401 |
| Product description | SV NH fuse-switch disconnector, size 000, 100 A, 690 V, 3-pole, box terminal, cable outlet top |
