Rittal

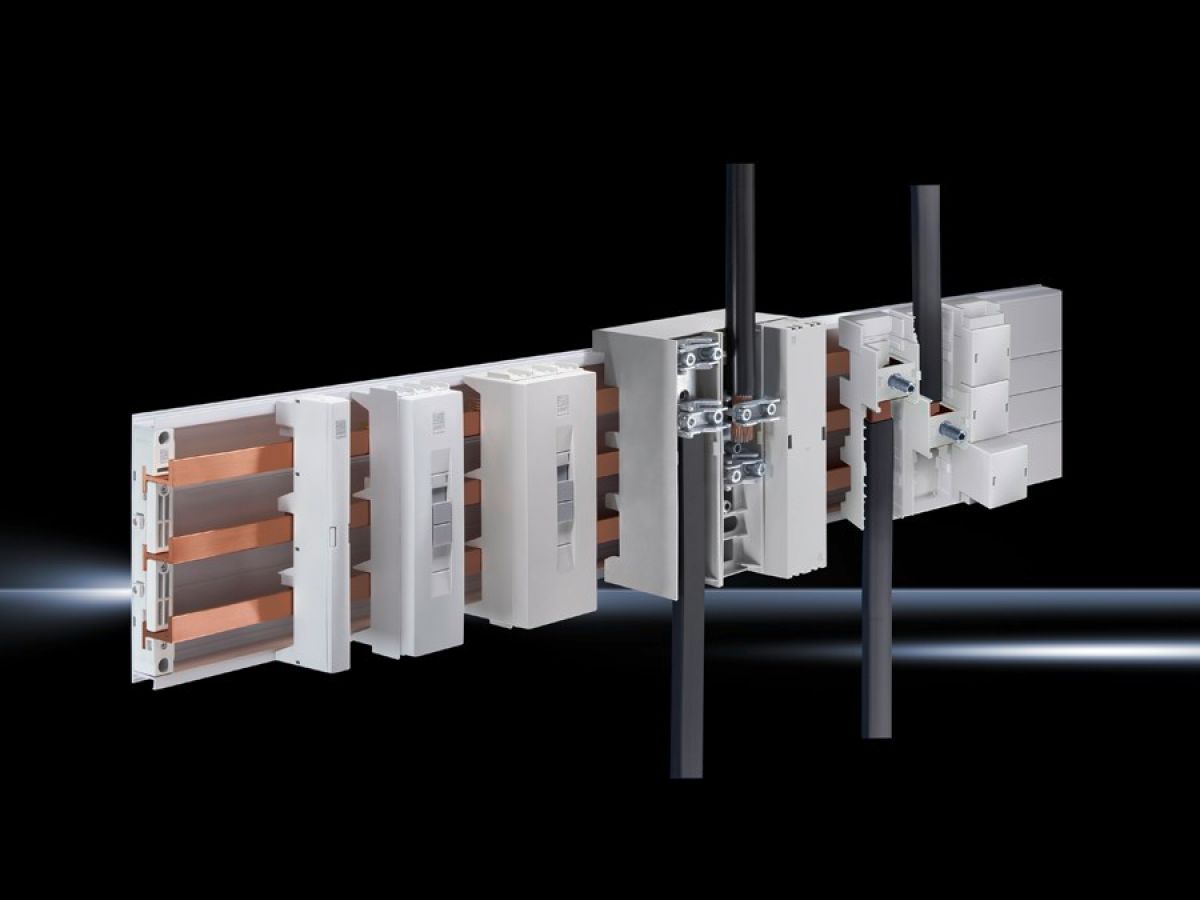

Rittal SV 3439.010, Connection adaptor
Rittal SV 3439.010, Connection adaptor
Regular price
€153,29
Regular price
Sale price
€153,29
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 3439.010
For bar systems with 60 mm centre-to-centre spacing.
| Article number: | SV 3439.010 |
| Material | Cover: ABSChassis: Fibreglass-reinforced, thermoplastic polyester (PBT)Fire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Rated current max. | 600 A |
| Rated operating voltage | 690 V, 3~ |
| Cable outlet | Top/bottom |
| For bar systems with centre-to-centre spacing | 60 mm |
| Note | The technical data may vary for UL applications |
| Number of poles | 3-pole |
| Dimensions | Width: 180 mmHeight: 247 mm |
| Connection of round conductors, multi-wire | 35 ‐ 240 mm² |
| To fit busbars | Height: 5, 10 mm |
| Clamping area for laminated copper bars (W x H) | 24 x 21 mm |
| Packs of | 1 pc(s). |
| Net weight | 4.36 kg |
| Gross weight | 4.635 kg |
| Copper weight (kg per piece) | 0.732 |
| Customs tariff number | 85369010 |
| EAN | 4028177236295 |
| ETIM 9 | EC001531 |
| ETIM 8 | EC001531 |
| ECLASS 8.0 | 27370304 |
| Product description | SV Connection adaptor, 600 A, 690 V, 3-pole, cable outet top/bottom, round conductor connection 35-240 mm², clamping area WH: 24x21 mm |
