Rittal SV 3451.500, Conductor connection clamp
Rittal SV 3451.500, Conductor connection clamp
Regular price
€20,51
Regular price
Sale price
€20,51
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 3451.500

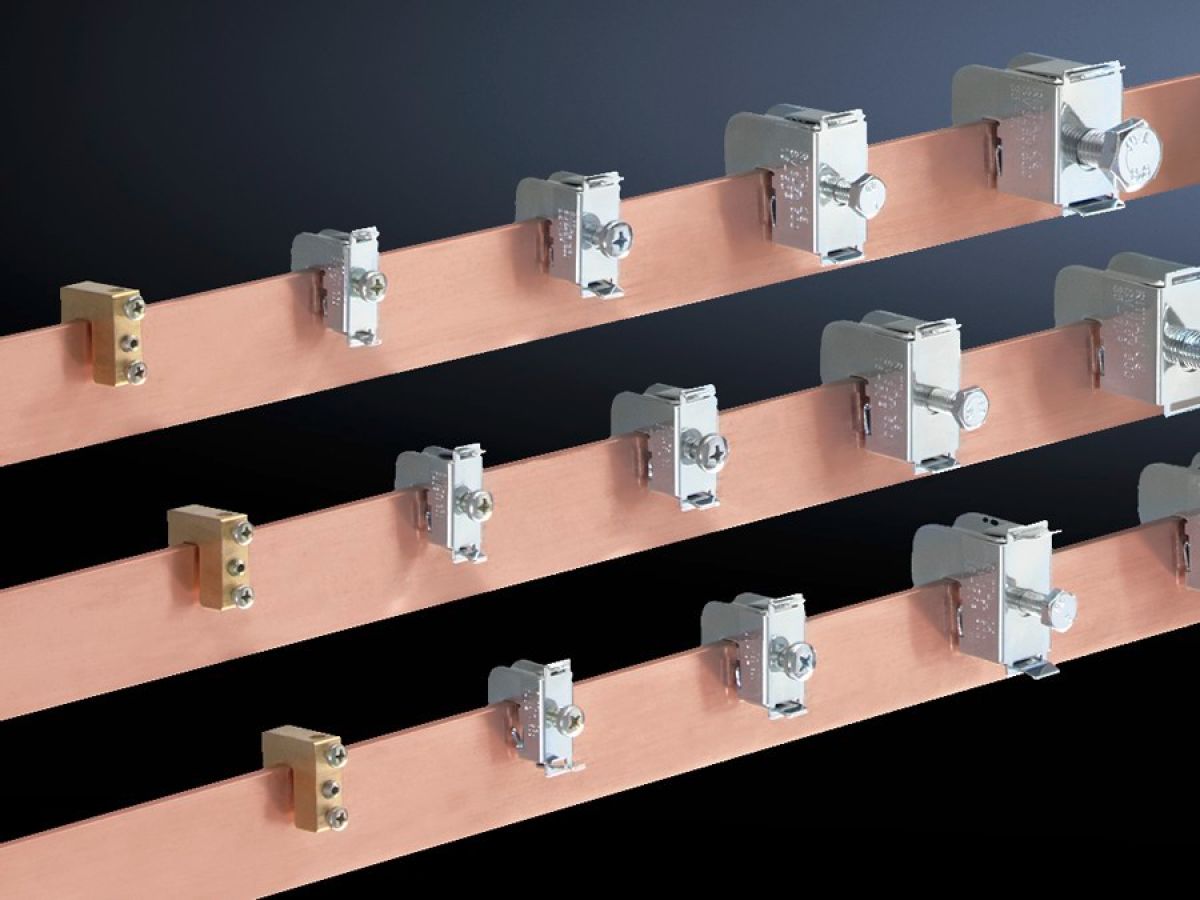

For connecting round conductors and laminated copper bars.
| Article number: | SV 3451.500 |
| Product description | For connecting round conductors and laminated copper bars. |
| Material | Sheet steel |
| Surface finish | Zinc-plated, passivated |
| Clamping area for laminated copper bars (W x H) | 8 x 8 mm |
| Note | Wire end ferrules should be used with fine wire conductors |
| Connection of round conductors | 2.5 ‐ 16 mm² |
| For bar thickness | 5 mm |
| Packs of | 15 pc(s). |
| Net weight | 0.375 kg |
| Gross weight | 0.44 kg |
| PCF per pack (cradle-to-gate) | 1.6 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 85369010 |
| EAN | 4028177042681 |
| ETIM 9 | EC000001 |
| ETIM 8 | EC000001 |
| ECLASS 8.0 | 27141146 |
| Product description | SV Conductor connection clamp, 2,5-16 mm², clamping area WH: 8x8 mm, for bar thickness 5 mm |
