Rittal

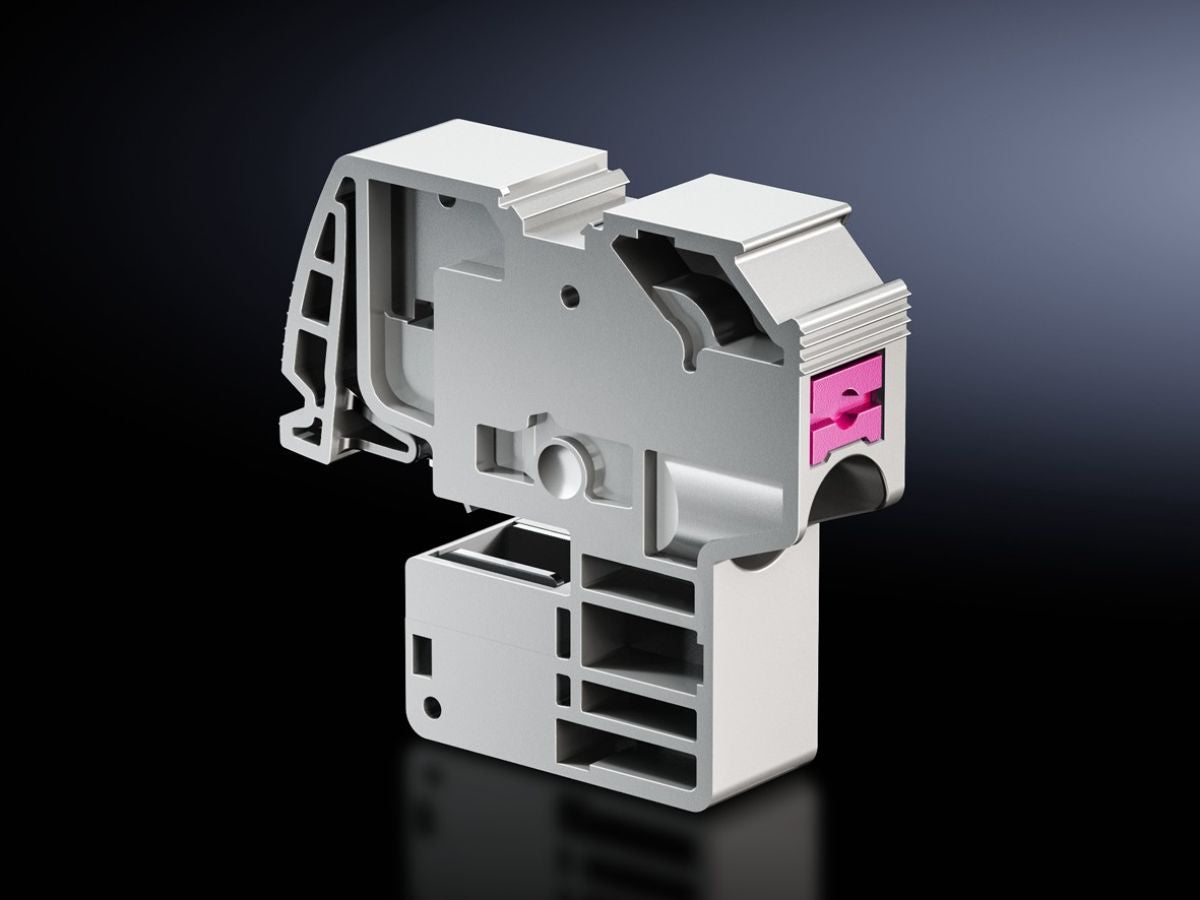

Rittal SV 3451.505, Conductor connection clamp Push-in
Rittal SV 3451.505, Conductor connection clamp Push-in
Regular price
€29,63
Regular price
Sale price
€29,63
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 3451.505
For the connection of round conductors.
| Article number: | SV 3451.505 |
| Benefits | Maintenance-free |
| Applications | For use as busbar pick-off of L, N or PE conductors in switchgear and controlgear, and as a conductor connection clamp in meter boxes. |
| Function principle | Fully insulated terminal for tool-free conductor connection |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7042 |
| Test specification | IEC 60 999-1 |
| Connection of round conductors, fine wire with wire end ferrule | 1.5 ‐ 16 mm² |
| Connection of round conductors, fine wire without wire end ferrule | 1.5 ‐ 16 mm² |
| Connection of round conductors, multi-wire | 1.5 ‐ 16 mm² |
| Connection of round conductors, single-wire | 1.5 ‐ 16 mm² |
| For bar thickness | 5 mm |
| Packs of | 10 pc(s). |
| Net weight | 0.22 kg |
| Gross weight | 0.245 kg |
| PCF per pack (cradle-to-gate) | 0.9 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 85369010 |
| EAN | 4028177813977 |
| ETIM 9 | EC000001 |
| ETIM 8 | EC000001 |
| ECLASS 8.0 | 27141146 |
| Product description | SV Conductor connection clamp, 1.5 – 16 mm² (Push-in), for bar thickness 5 mm |
