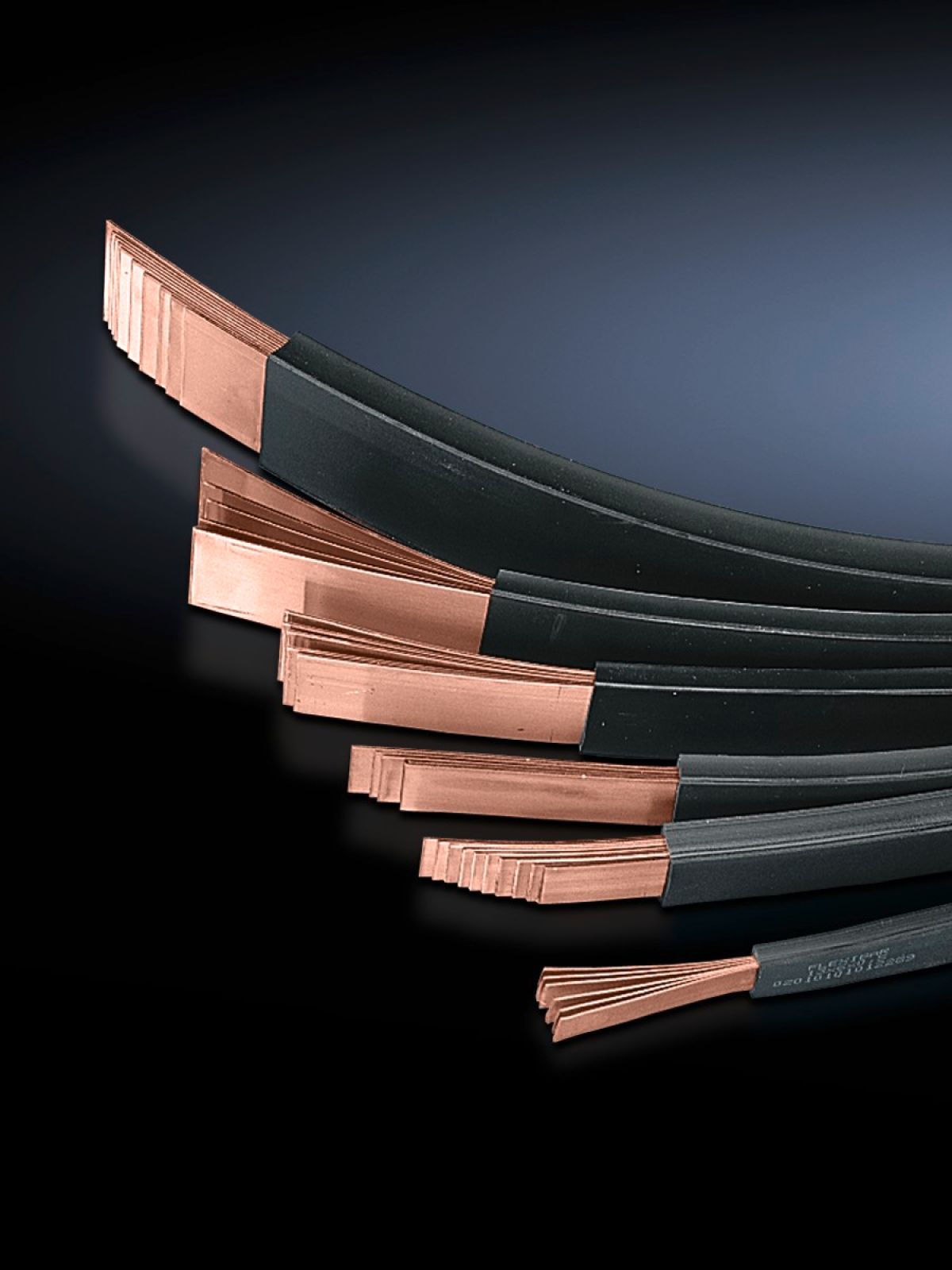

Rittal SV 3578.005, Laminated copper bars
Rittal SV 3578.005, Laminated copper bars
Regular price
€282,81
Regular price
Sale price
€282,81
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 3578.005
Cu lamina made of high-purity electrolyte copper 720, length: 2000 mm/bar.
| Article number: | SV 3578.005 |
| Material | Cu lamina High-purity electrolyte copper F20Insulation: Highly resistant vinyl compound, elongation 370%, temperature: -30 °C...+105 °C, fire protection corresponding to UL-94 V0, dielectric strength: 20 kV/mm |
| Length | 2,000 mm |
| Rated current for temperature increase 50 K | 1,365 A |
| Rated current for temperature increase 30 K | 1,030 A |
| Rated current for temperature increase 70 K | 1,635 A |
| Note | Construction = Number of lamina x lamina width x lamina thickness |
| Version – laminated flat copper | Number of lamina: 10Membrane width: 50 mmMembrane thickness: 1 mm |
| Packs of | 1 pc(s). |
| Net weight | 9.858 kg |
| Gross weight | 10.377 kg |
| Copper weight (kg per piece) | 8.96 |
| Customs tariff number | 74071000 |
| EAN | 4028177666849 |
| ETIM 9 | EC001522 |
| ETIM 8 | EC001522 |
| ECLASS 8.0 | 27370303 |
| Product description | SV Laminated copper bar, WH: 50x10 mm, L: 2000 mm |
