Rittal
Rittal SV 3582.020, CUPONAL busbars
Rittal SV 3582.020, CUPONAL busbars
Regular price
€203,98
Regular price
Sale price
€203,98
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 3582.020

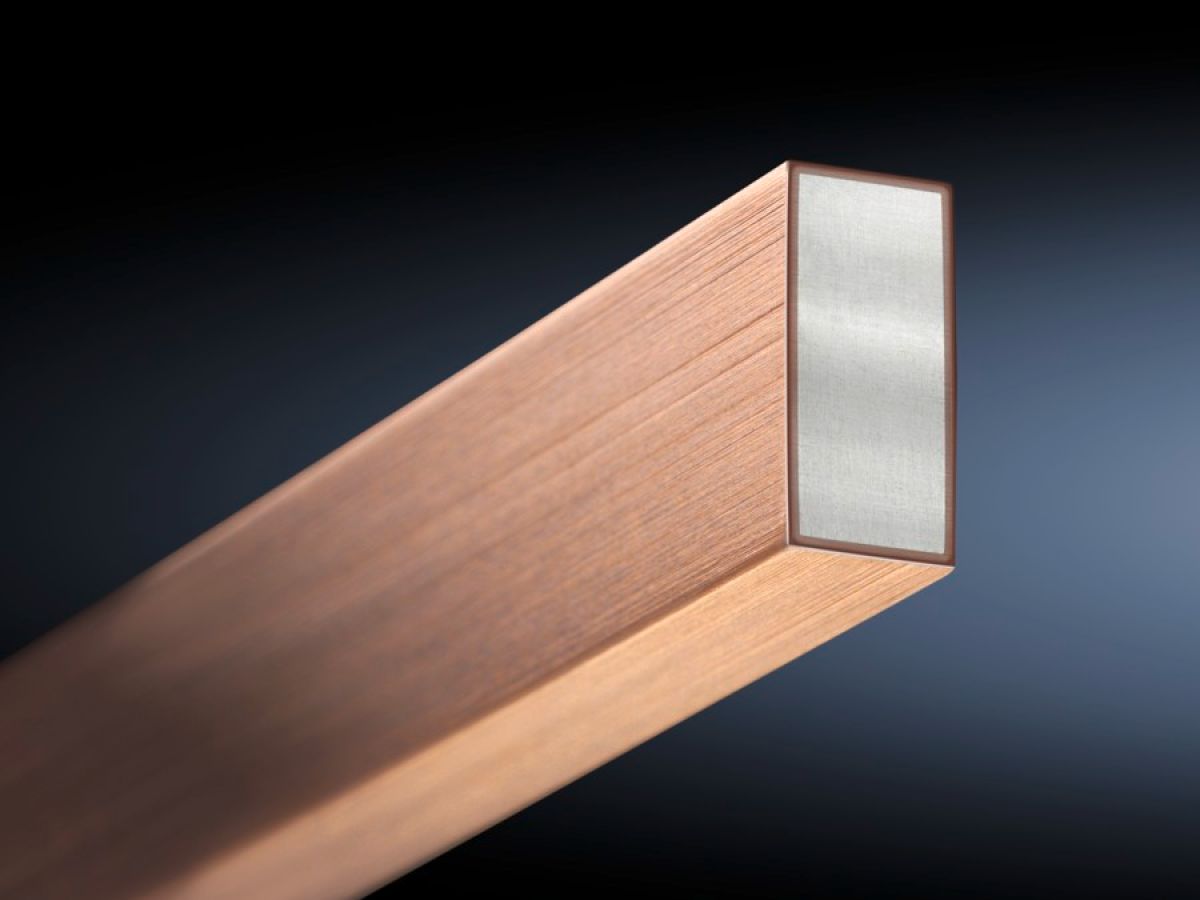

Copper-coated aluminium busbar
| Article number: | SV 3582.020 |
| Product description | Copper-coated aluminium busbars, suitable for configuring busbar systems with busbar supports 9340.000/9340.050. |
| Material | AluminiumCopper |
| Length | 2,400 mm |
| Rated current max. | 235 A |
| Note | The rated current is derived at 65 °C bar temperature and 35 °C ambient temperature |
| Standards | DIN EN 13 601 |
| Cross-section | 20 mm x 5 mm |
| Dimensions | Length: 2,400 mm |
| Packs of | 6 pc(s). |
| Net weight | 4.5 kg |
| Gross weight | 6.42 kg |
| Copper weight (kg per piece) | 0.35 |
| Customs tariff number | 74071000 |
| EAN | 4028177686557 |
| ETIM 9 | EC001522 |
| ETIM 8 | EC001522 |
| ECLASS 8.0 | 27370303 |
| Product description | SV Busbar CUPONAL, WH: 20x5 mm, L: 2400 mm |
