Rittal
Rittal SV 3586.020, CUPONAL busbars
Rittal SV 3586.020, CUPONAL busbars
Regular price
€309,10
Regular price
Sale price
€309,10
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 3586.020

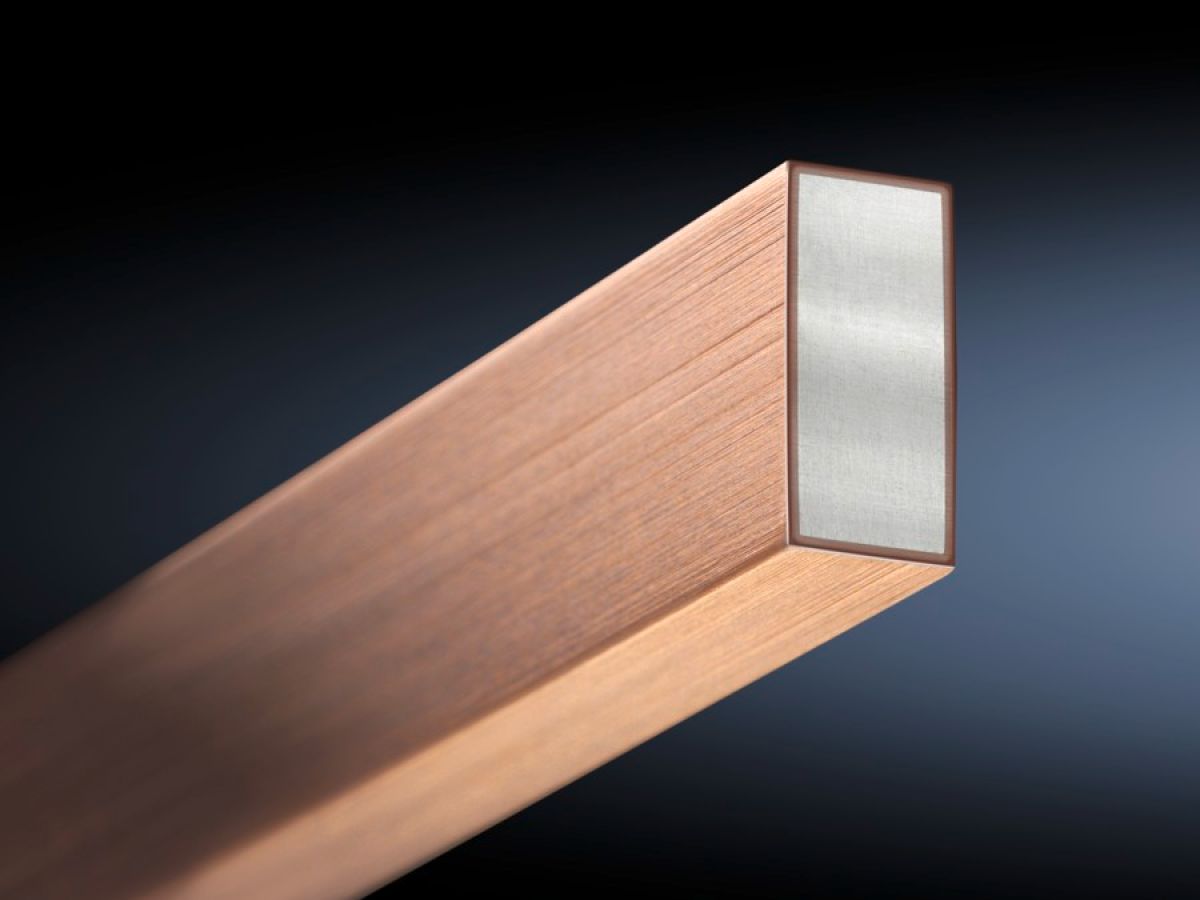

Copper-coated aluminium busbar
| Article number: | SV 3586.020 |
| Product description | Copper-coated aluminium busbars, suitable for configuring busbar systems with busbar supports 9340.000/9340.050. |
| Material | AluminiumCopper |
| Length | 2,400 mm |
| Rated current max. | 493 A |
| Note | The rated current is derived at 65 °C bar temperature and 35 °C ambient temperature |
| Standards | DIN EN 13 601 |
| Cross-section | 30 mm x 10 mm |
| Dimensions | Length: 2,400 mm |
| Packs of | 3 pc(s). |
| Net weight | 26.85 kg |
| Copper weight (kg per piece) | 1.05 |
| Customs tariff number | 74071000 |
| EAN | 4028177686588 |
| ETIM 9 | EC001522 |
| ETIM 8 | EC001522 |
| ECLASS 8.0 | 27370303 |
| Product description | SV Busbar CUPONAL, WH: 30x10 mm, L: 2400 mm |
