Rittal
Rittal SV 9320.030, Busbar connector
Rittal SV 9320.030, Busbar connector
Regular price
€77,03
Regular price
Sale price
€77,03
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9320.030

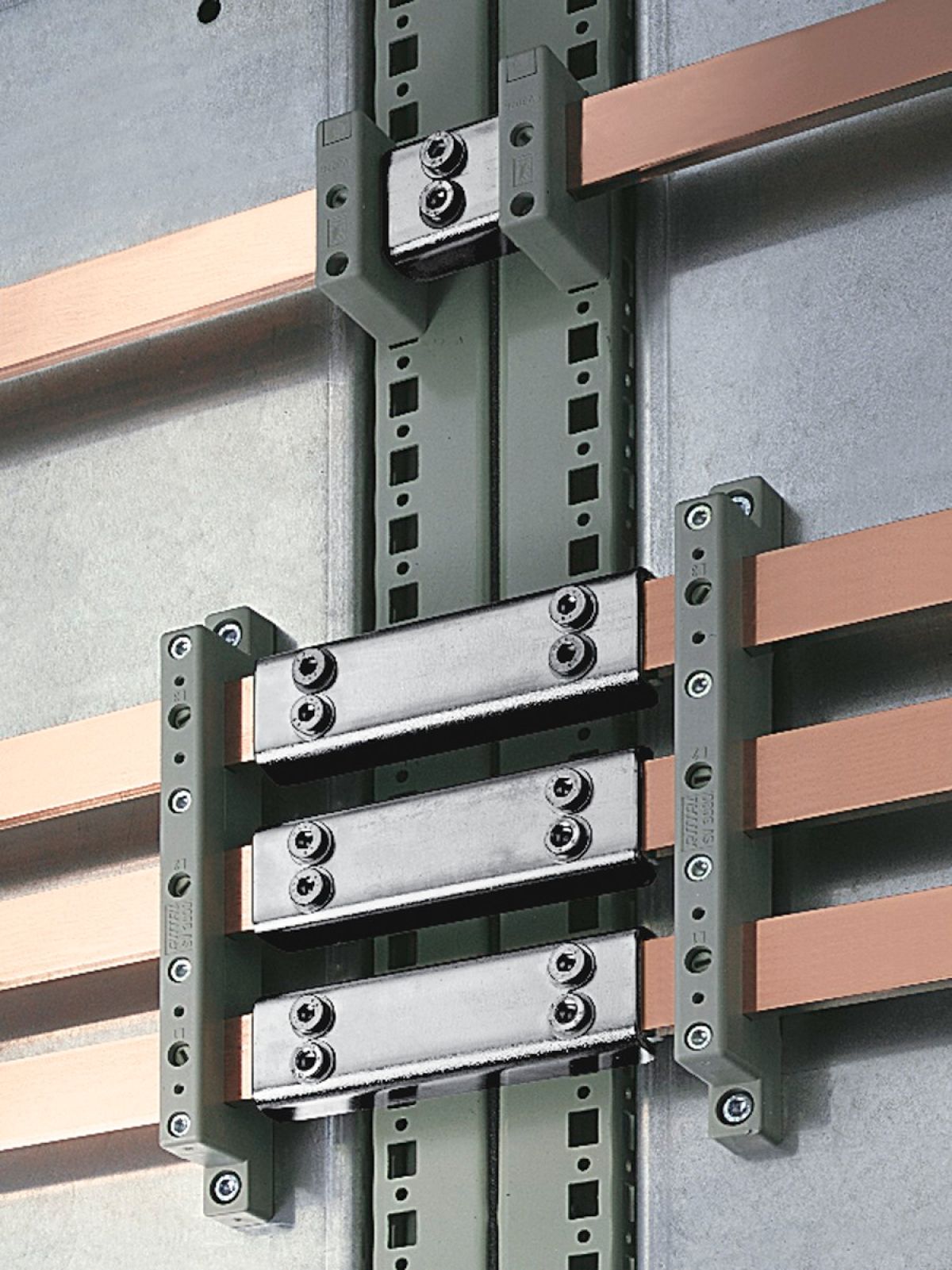

For connecting busbars, no drilling required.
| Article number: | SV 9320.030 |
| Product description | For connecting rectangular busbars, no drilling required. |
| Material | Top piece: Sheet steel, zinc-plated, passivatedContact plate: E-Cu, silver-plated |
| Connection type | Baying connection from enclosure to enclosure |
| To fit busbars | 20 x 5 - 30 x 10 mm |
| Packs of | 3 pc(s). |
| Net weight | 1.881 kg |
| Gross weight | 2.02 kg |
| Copper weight (kg per piece) | 0.35 |
| PCF per pack (cradle-to-gate) | 7.9 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 85369010 |
| EAN | 4028177149830 |
| ETIM 9 | EC000713 |
| ECLASS 8.0 | 27400606 |
| Product description | SV Busbar connector, for E-Cu 20x5-30x10 mm, bayed connection |
