Rittal

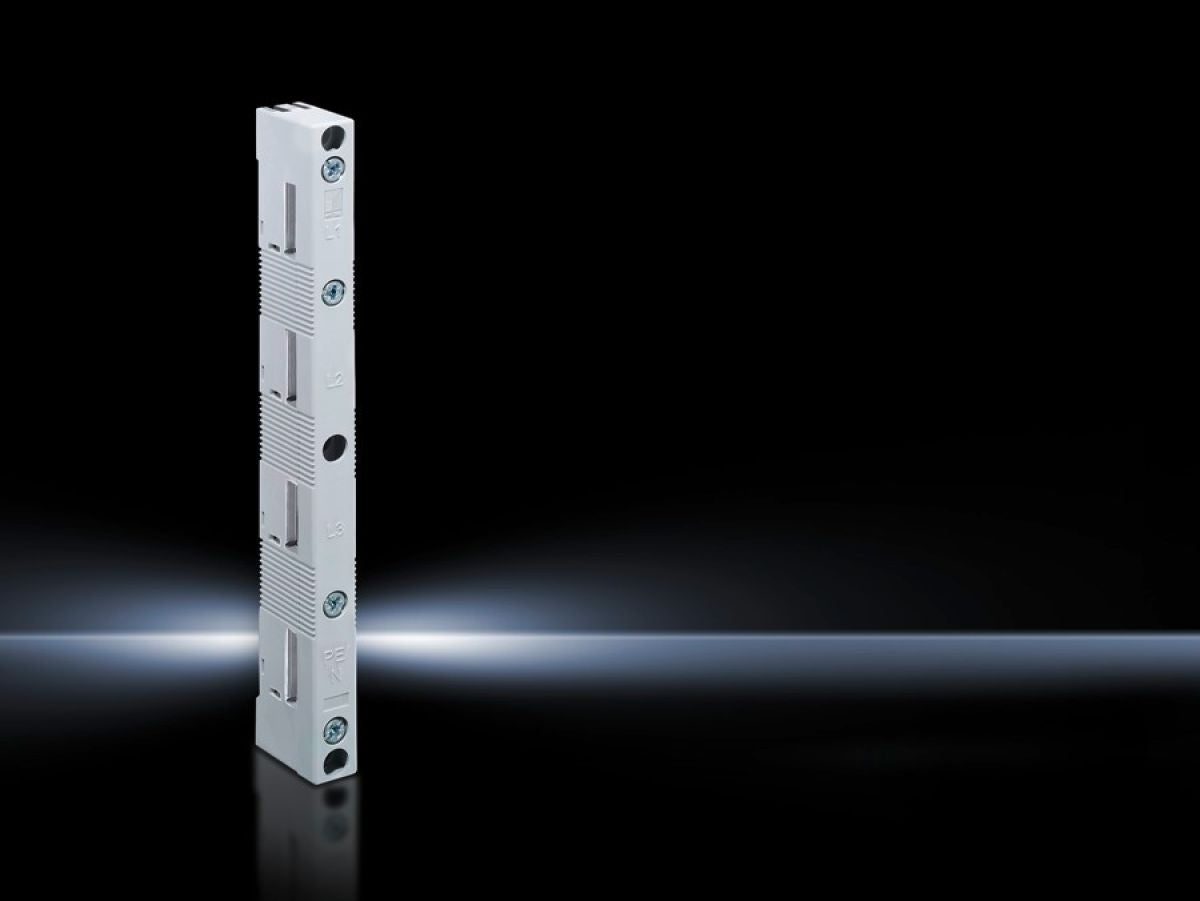

Rittal SV 9340.004, Busbar support for flat copper busbars
Rittal SV 9340.004, Busbar support for flat copper busbars
Regular price
€58,47
Regular price
Sale price
€58,47
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9340.004
For flat copper bars up to 800 A.
| Article number: | SV 9340.004 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Rated operating voltage | 1000 V, 3~ |
| Electrical ratings UL (SCCR) | 22 kA - 600 V, support spacing 500 mm, 15 x 5 - 25 x 10 mm busbars |
| Note on Model No. | If 12 x 5/10 mm busbars are used, spacer 9340.090 is additionally required |
| Number of poles | 4-pole |
| Internal attachment | Yes |
| Centre-to-centre spacing of busbars | 60 mm |
| To fit busbars | 12 x 5 - 30 x 10 mm |
| Packs of | 4 pc(s). |
| Net weight | 0.84 kg |
| Gross weight | 0.915 kg |
| Customs tariff number | 85369010 |
| EAN | 4028177536715 |
| ETIM 9 | EC001166 |
| ECLASS 8.0 | 27400607 |
| Product description | SV Busbar support, 4-pole, 60 mm bar centre distance, for busbar WH: 12x5-30x10 mm, UL design |
