Rittal

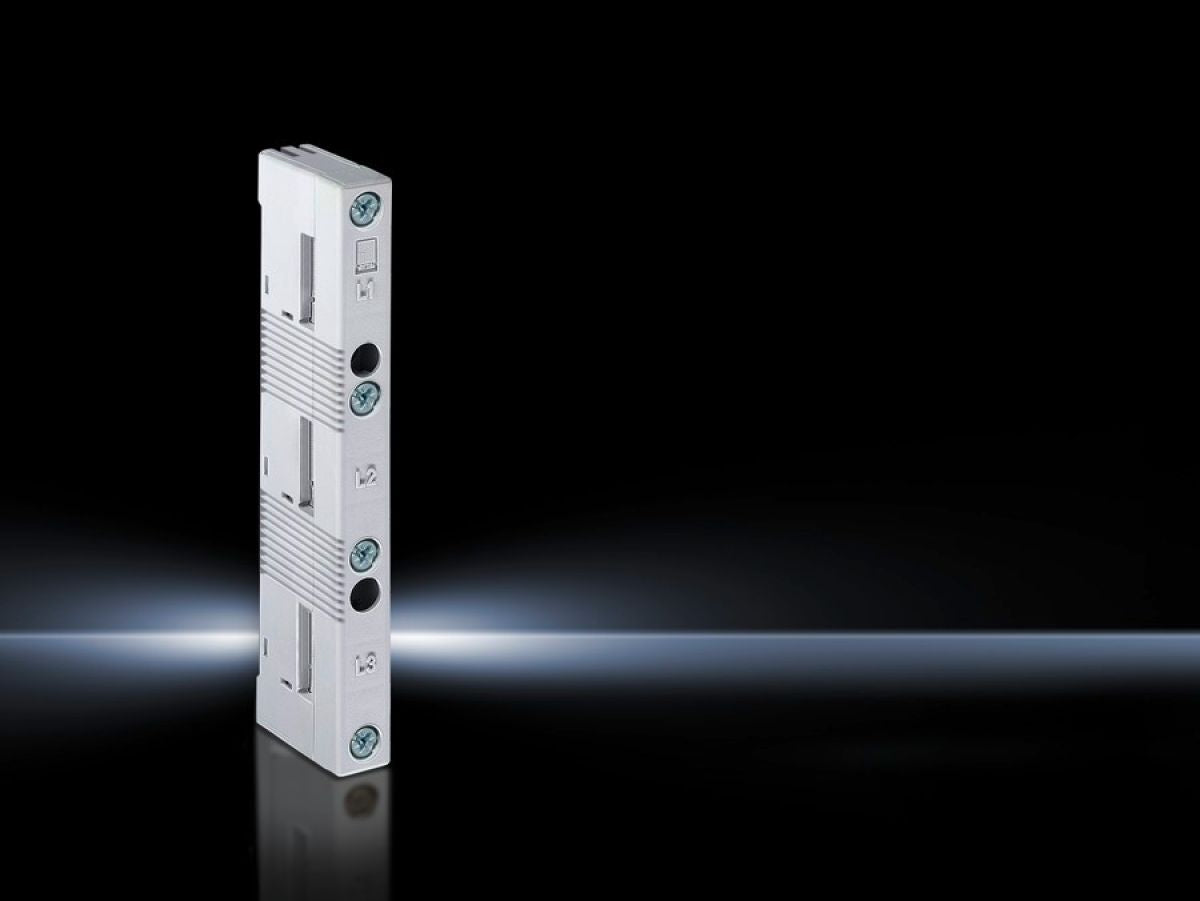

Rittal SV 9340.050, Busbar support for flat copper busbars
Rittal SV 9340.050, Busbar support for flat copper busbars
Regular price
€60,18
Regular price
Sale price
€60,18
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9340.050
For flat copper bars up to 800 A.
| Article number: | SV 9340.050 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Rated operating voltage | 1000 V, 3~ |
| Electrical ratings UL (SCCR) | 14 kA - 600 V, support spacing 500 mm, 12 x 5/10 mm busbars |
| Note on Model No. | The use of a base tray is required for UL applications |
| Number of poles | 3-pole |
| Internal attachment | Yes |
| Centre-to-centre spacing of busbars | 60 mm |
| To fit busbars | 12 x 5 - 30 x 10 mm |
| Packs of | 4 pc(s). |
| Net weight | 0.668 kg |
| Gross weight | 0.72 kg |
| Customs tariff number | 85369010 |
| EAN | 4028177525573 |
| ETIM 9 | EC001166 |
| ECLASS 8.0 | 27400607 |
| Product description | SV Busbar support, 3-pole, 60 mm centre-to-centre spacing, for busbar WxH: 12x5-30x10 mm, UL version |
