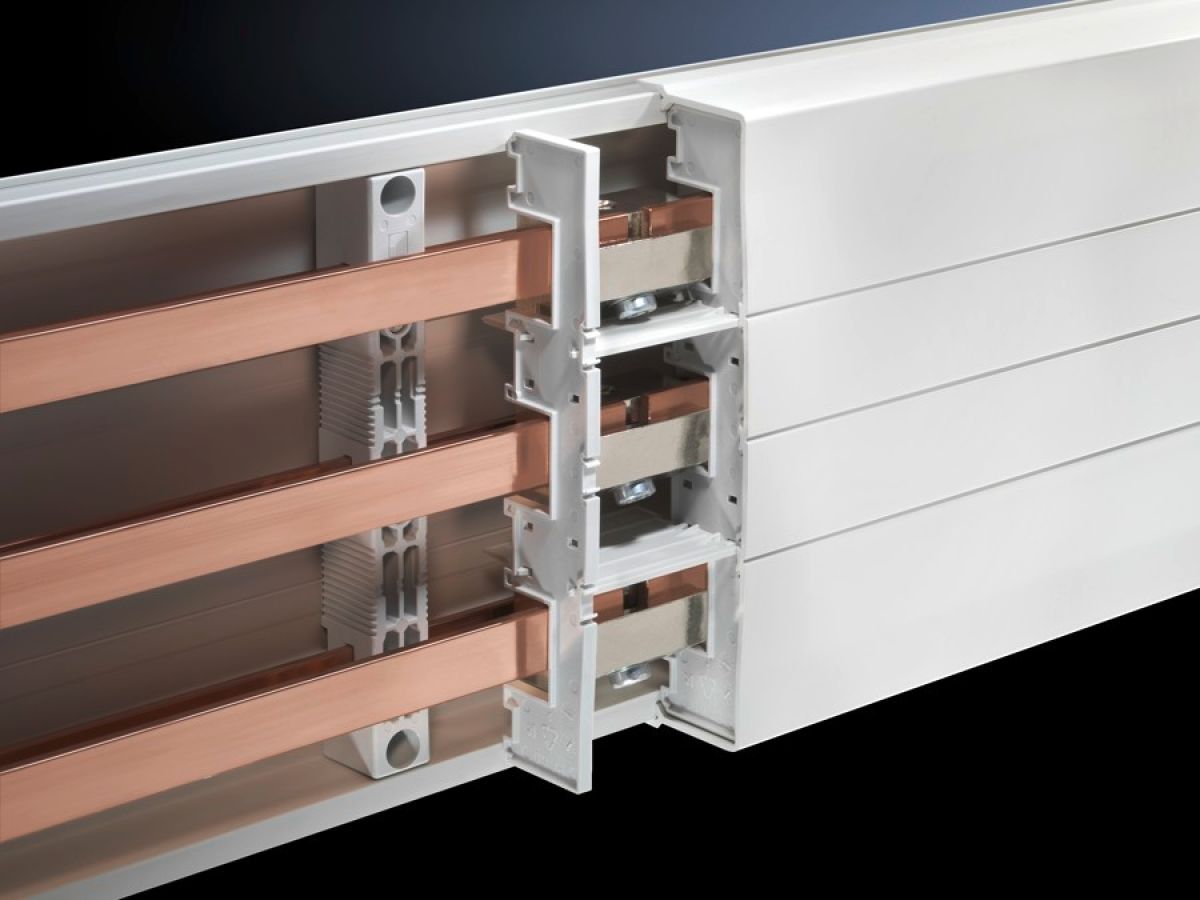

Rittal SV 9340.230, Cross member for RiLine busbar connections
Rittal SV 9340.230, Cross member for RiLine busbar connections
Regular price
€14,33
Regular price
Sale price
€14,33
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9340.230
To comply with the clearances required for “feeder circuits” under UL 508, for 3-pole RiLine busbar connections.
| Article number: | SV 9340.230 |
| Product description | To comply with the clearances required for "feeder circuits" under UL 508. For flat bar systems with 60 mm bar centre distance and PLS 800/1600. |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| For no. of poles | 3 |
| Note | 2 cross members are required for one busbar connection |
| To fit busbar system | 3-pole |
| Dimensions | Length: 160 mm |
| Packs of | 2 pc(s). |
| Net weight | 0.05 kg |
| Gross weight | 0.062 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177565555 |
| ETIM 9 | EC000775 |
| ECLASS 8.0 | 27142414 |
| Product description | SV Cross member, L: 160 mm, for support panel SV 9340220 |
