Rittal

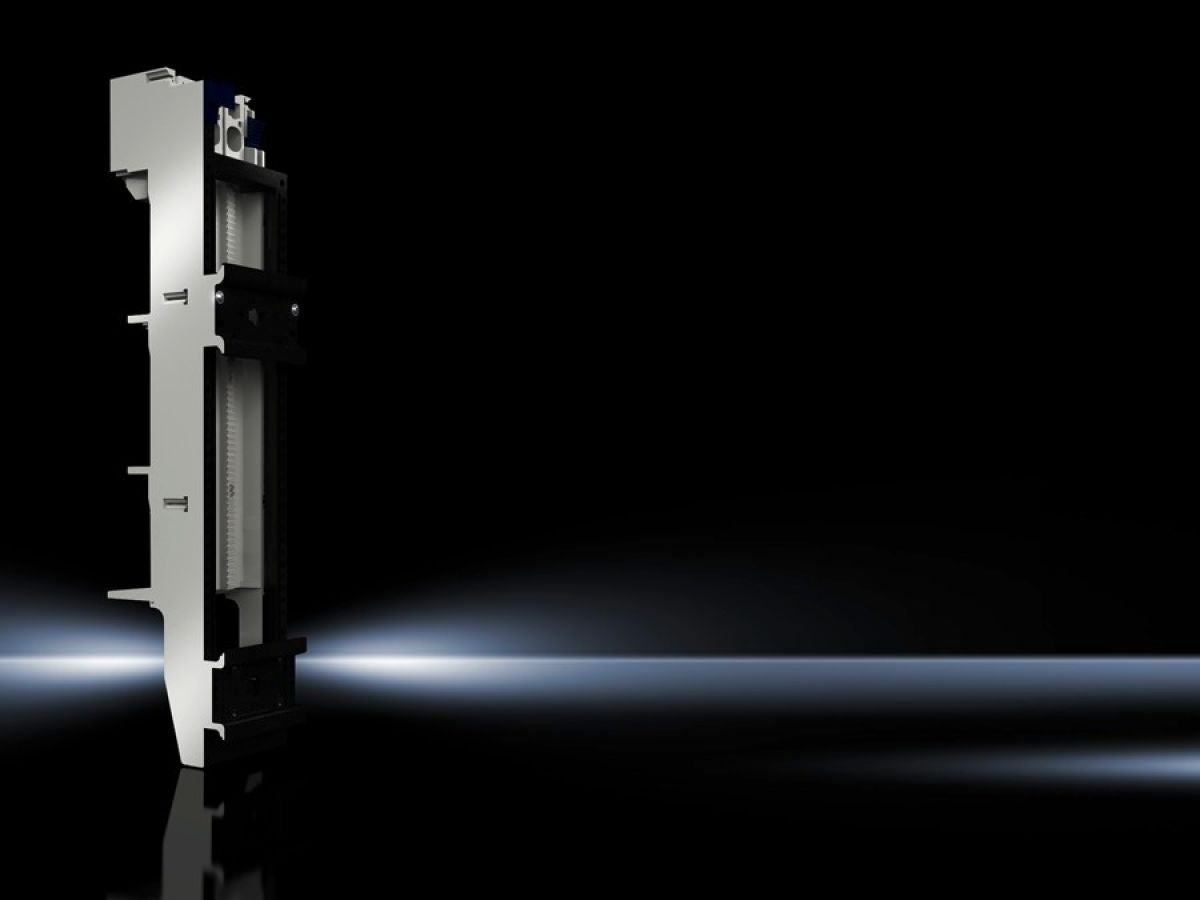

Rittal SV 9340.650, OM adaptors with spring terminals
Rittal SV 9340.650, OM adaptors with spring terminals
Regular price
€29,77
Regular price
Sale price
€29,77
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9340.650
OM adaptors with spring terminals
| Article number: | SV 9340.650 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | Chassis: RAL 7035 |
| Rated current max. | 65 A |
| Rated operating voltage | 690 V, 3~ |
| For bar systems with centre-to-centre spacing | 60 mm |
| Support rail type | TS 55E |
| Number of poles | 3-pole |
| Support frame support | Yes |
| Note on Model No. | According to a heat dissipation test to IEC 61 439-1, a current carrying capacity of up to 80 A is supported |
| Dimensions | Width: 55 mmHeight: 272 mm |
| Connection of round conductors | 2.5 ‐ 16 mm² |
| Support rails Qty/height | 2 / 10 mm |
| To fit busbars | Height: 5, 10 mm |
| Support frame (W x H) | 55 mm x 237 mm |
| Packs of | 1 pc(s). |
| Net weight | 0.339 kg |
| Gross weight | 0.377 kg |
| Copper weight (kg per piece) | 0.059 |
| Customs tariff number | 85369095 |
| EAN | 4028177502673 |
| ETIM 9 | EC001531 |
| ECLASS 8.0 | 27370304 |
| Product description | SV OM adaptor, 65 A, 690 V, 3-pole, tension spring clamp 2,5-16 mm², WH: 55x272 mm, support frame, support rail TS 55E, TS 55D-V |
