Rittal

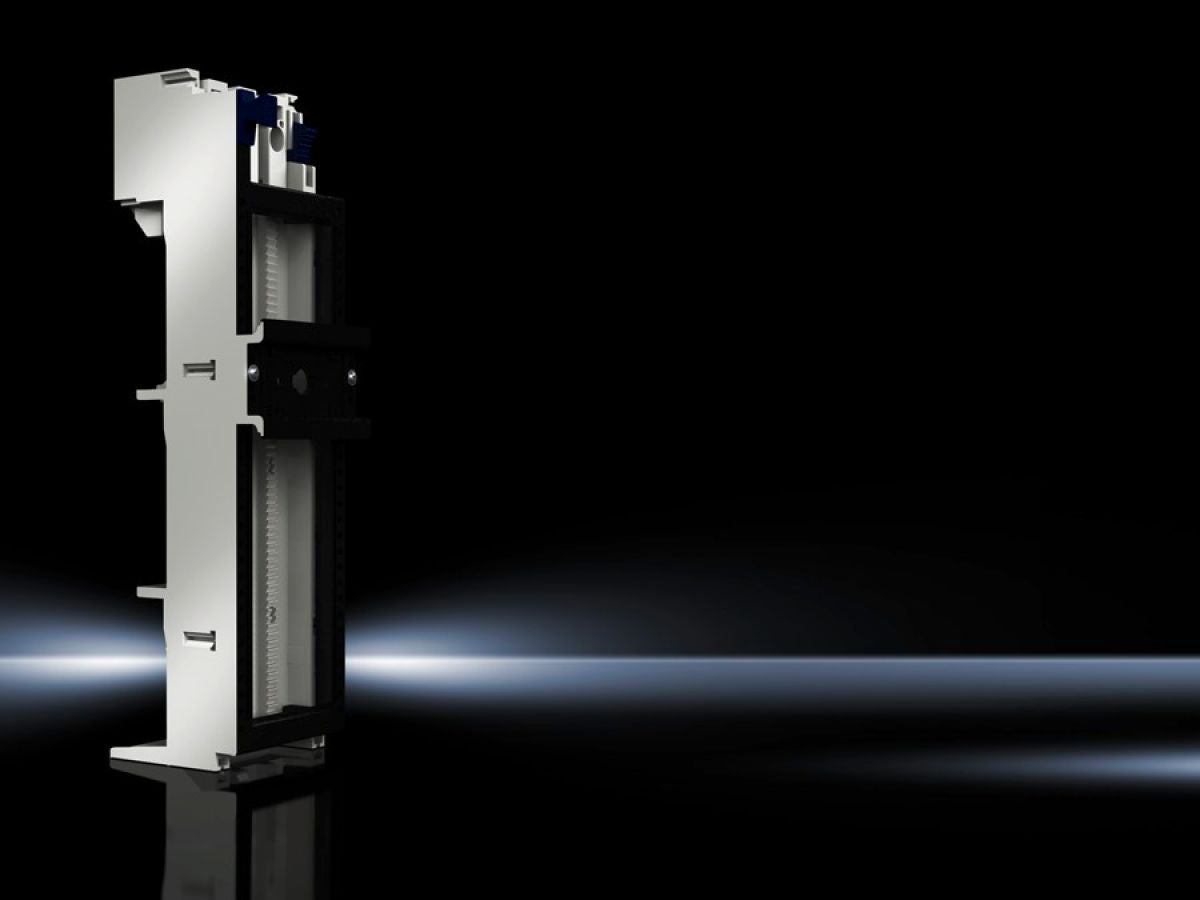

Rittal SV 9340.660, OM adaptors with spring terminals
Rittal SV 9340.660, OM adaptors with spring terminals
Regular price
€25,91
Regular price
Sale price
€25,91
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9340.660
OM adaptors with spring terminals
| Article number: | SV 9340.660 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | Chassis: RAL 7035 |
| Rated current max. | 32 A |
| Rated operating voltage | 690 V, 3~ |
| For bar systems with centre-to-centre spacing | 60 mm |
| Support rail type | TS 55D |
| Number of poles | 3-pole |
| Dimensions | Width: 55 mmHeight: 208 mm |
| Connection of round conductors | 1.5 ‐ 6 mm² |
| Support rails Qty/height | 1 / 10 mm |
| To fit busbars | Height: 5, 10 mm |
| Support frame (W x H) | 55 mm x 170 mm |
| Packs of | 1 pc(s). |
| Net weight | 0.29 kg |
| Gross weight | 0.315 kg |
| Copper weight (kg per piece) | 0.027 |
| Customs tariff number | 85369095 |
| EAN | 4028177502680 |
| ETIM 9 | EC001531 |
| ECLASS 8.0 | 27370304 |
| Product description | SV OM adaptor, 32 A, 690 V, 3-pole, tension spring clamp 1,5-6 mm², WH: 55x208 mm, support frame, support rail TS 45D |
