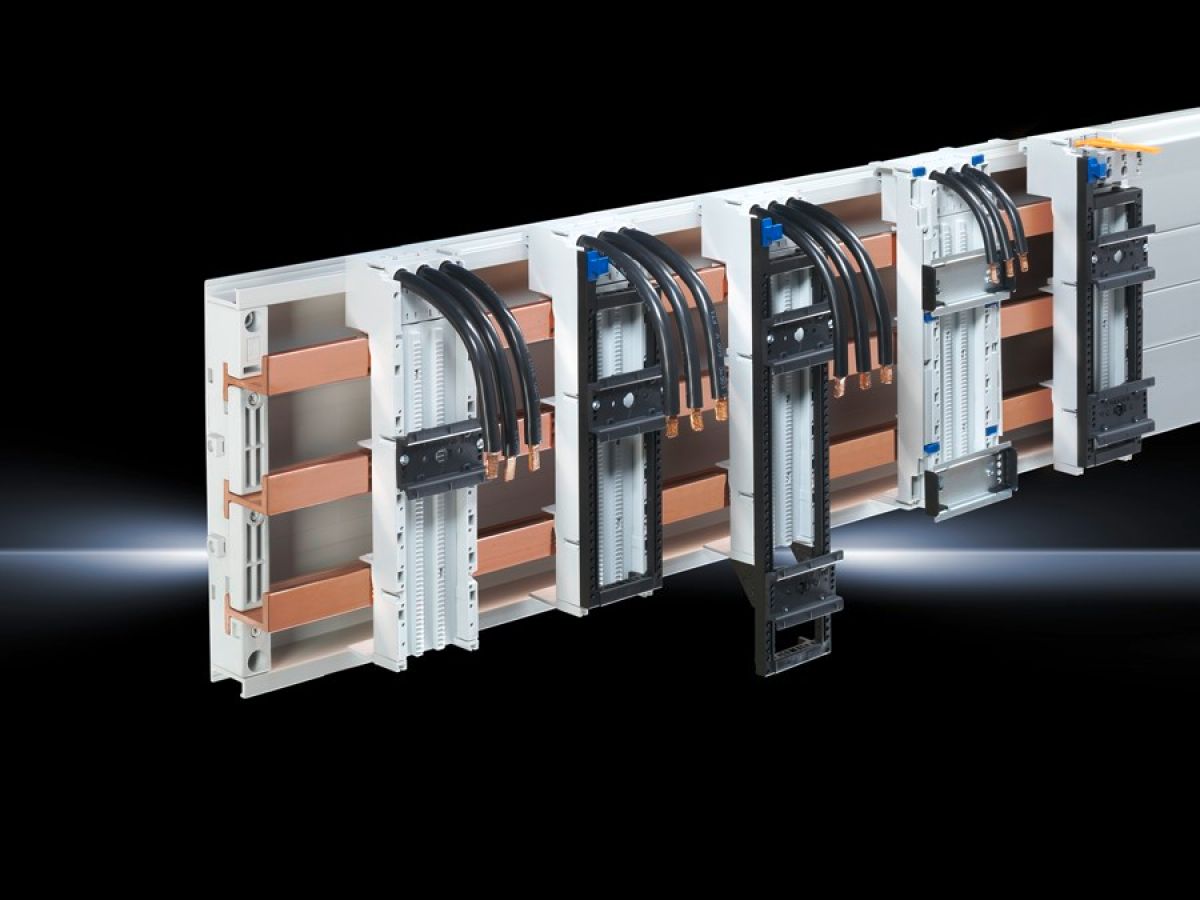

Rittal SV 9340.780, OM adaptors with connection cables
Rittal SV 9340.780, OM adaptors with connection cables
Regular price
€32,34
Regular price
Sale price
€32,34
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9340.780
OM adaptors with connection cables
| Article number: | SV 9340.780 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | Chassis: RAL 7035 |
| Connection cables (AWG) | AWG 12 |
| Rated current max. | 16 A |
| Rated operating voltage | 690 V, 3~ |
| Electrical ratings UL (SCCR) | 30 kA - 600 V, Fuse Class K5 max. 60 A, JDDZ/7 |
| For bar systems with centre-to-centre spacing | 60 mm |
| Length of connection cable | 165 mm |
| Support rail type | TS 45D |
| Note | The technical data may vary for UL applications |
| Number of poles | 3-pole |
| Dimensions | Width: 45 mmHeight: 208 mm |
| Support rails Qty/height | 2 / 10 mm |
| To fit busbars | Height: 5, 10 mm |
| Support frame (W x H) | 45 mm x 170 mm |
| Packs of | 1 pc(s). |
| Net weight | 0.25 kg |
| Gross weight | 0.3 kg |
| Copper weight (kg per piece) | 0.038 |
| Customs tariff number | 85369095 |
| EAN | 4028177701410 |
| ETIM 9 | EC001531 |
| ECLASS 8.0 | 27370304 |
| Product description | SV OM adaptor, 16 A, 690 V, 3-pole, connection cable AWG 12, WH: 45x208 mm, support frame, support rail TS 45D, TS 45D-V |
