Rittal

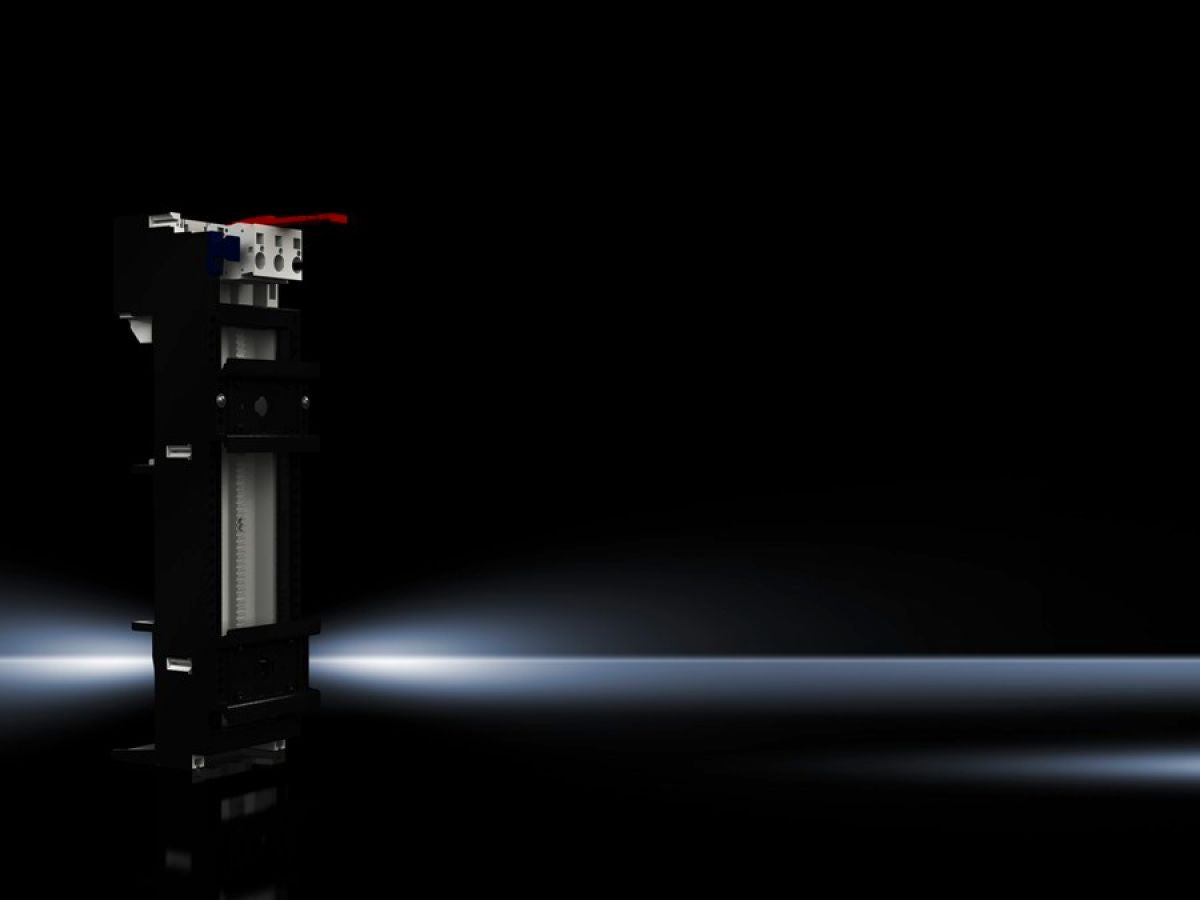

Rittal SV 9340.930, OM adaptors with plug-in cable outlet
Rittal SV 9340.930, OM adaptors with plug-in cable outlet
Regular price
€36,19
Regular price
Sale price
€36,19
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9340.930
OM adaptors with plug-in cable outlet
| Article number: | SV 9340.930 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | Chassis: RAL 7035 |
| Supply includes | Connector with connection facility for 3 main contacts (1.5 – 4 mm²) |
| Rated current max. | 25 A |
| Rated operating voltage | 690 V, 3~ |
| For bar systems with centre-to-centre spacing | 60 mm |
| Support rail type | TS 55D |
| Number of poles | 3-pole |
| Connector outlet | Connector with connection facility for 3 main contacts (1.5 – 4 mm²) |
| Dimensions | Width: 55 mmHeight: 208 mm |
| Connection of round conductors | 1.5 ‐ 4 mm² |
| Support rails Qty/height | 2 / 10 mm |
| To fit busbars | Height: 5, 10 mm |
| Support frame (W x H) | 55 mm x 170 mm |
| Packs of | 1 pc(s). |
| Net weight | 0.3 kg |
| Gross weight | 0.332 kg |
| Copper weight (kg per piece) | 0.025 |
| Customs tariff number | 85369095 |
| EAN | 4028177555471 |
| ETIM 9 | EC001531 |
| ETIM 8 | EC001531 |
| ECLASS 8.0 | 27370304 |
| Product description | SV OM adaptor, 25 A, 690 V, 3-pole, with plug-in cable outlet, WH: 55x208 mm, support frame, support rail TS 55D, TS 55D-V |
