Rittal

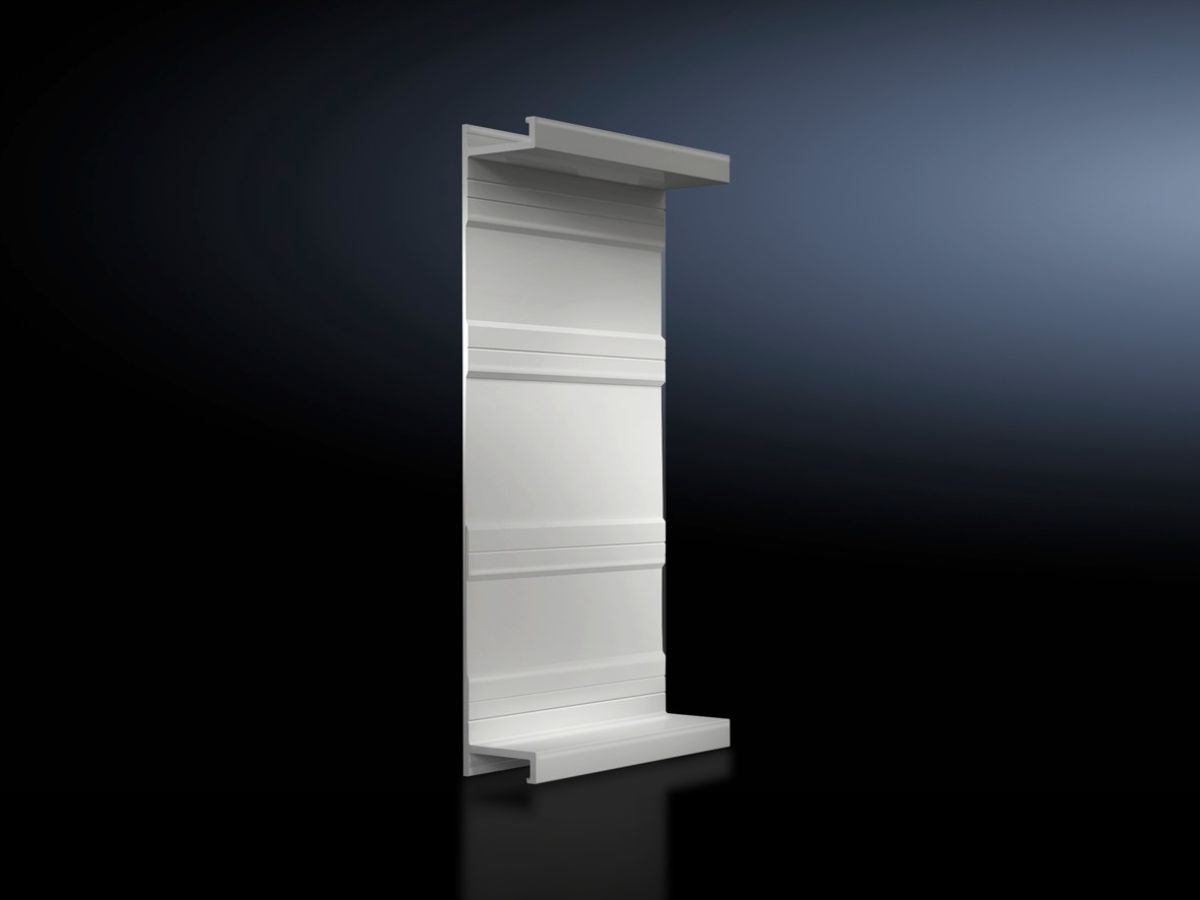

Rittal SV 9341.140, Base tray infill for RiLine busbar systems
Rittal SV 9341.140, Base tray infill for RiLine busbar systems
Regular price
€18,47
Regular price
Sale price
€18,47
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9341.140
Rear contact hazard protection when connecting the busbars from enclosure to enclosure.
| Article number: | SV 9341.140 |
| Product description | For rear contact hazard protection when connecting the busbars from enclosure to enclosure. |
| Material | Thermally modified hard PVC.Fire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Supply includes | Assembly parts |
| Number of poles | 3-pole |
| To fit busbar system | PLS 800, 3-pole |
| Connection type | Baying connection from enclosure to enclosure |
| Dimensions | Length: 100 mm |
| Packs of | 2 pc(s). |
| Net weight | 0.22 kg |
| Gross weight | 0.24 kg |
| Customs tariff number | 85472000 |
| EAN | 4028177502833 |
| ETIM 9 | EC002498 |
| ECLASS 8.0 | 27379201 |
| Product description | SV Base tray infill, L: 100 mm (PLS 800) |
