Rittal SV 9342.004, Busbar support PLS
Rittal SV 9342.004, Busbar support PLS
Regular price
€112,31
Regular price
Sale price
€112,31
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9342.004

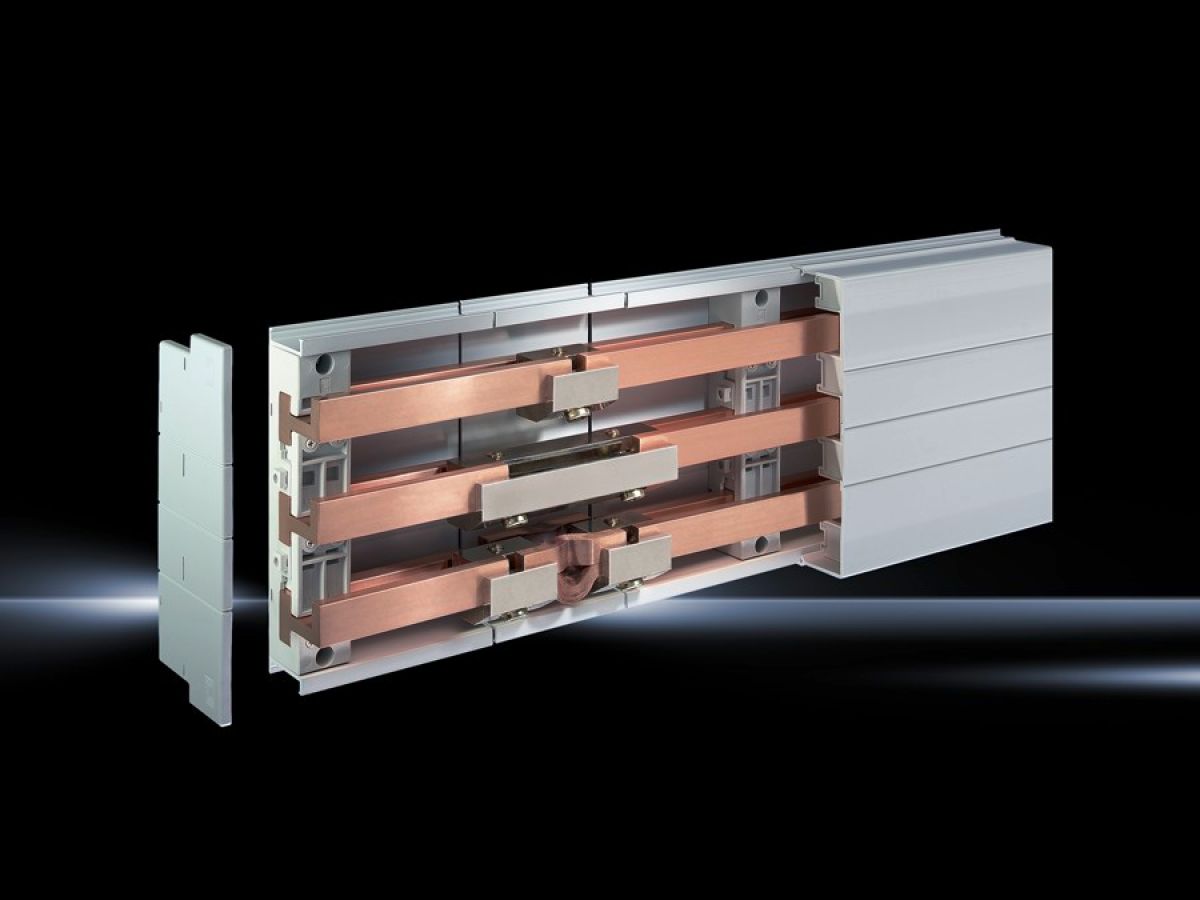

For PLS special busbars 800 A/1600 A, 3-pole and 4-pole, suitable for top-mounting.
| Article number: | SV 9342.004 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Rated operating voltage | 1000 V, 3~ |
| Electrical ratings UL (SCCR) | 65 kA - 480 V, support spacing 250 mm, PLS 1600 busbars, circuit breaker max. 1200 A, DIVQ/7 |
| Note on Model No. | The use of a base tray is required for UL applications |
| Busbar support design | PLS 1600 PLUS |
| Number of poles | 4-pole |
| To fit busbars | PLS 1600 |
| Internal attachment | Yes |
| Centre-to-centre spacing of busbars | 60 mm |
| Packs of | 4 pc(s). |
| Net weight | 2.2 kg |
| Gross weight | 2.321 kg |
| Customs tariff number | 85469010 |
| EAN | 4028177536760 |
| ETIM 9 | EC001166 |
| ECLASS 8.0 | 27400607 |
| Product description | SV Busbar support, PLS 1600, 4-pole, 60 mm bar centre distance, UL design |
