Rittal

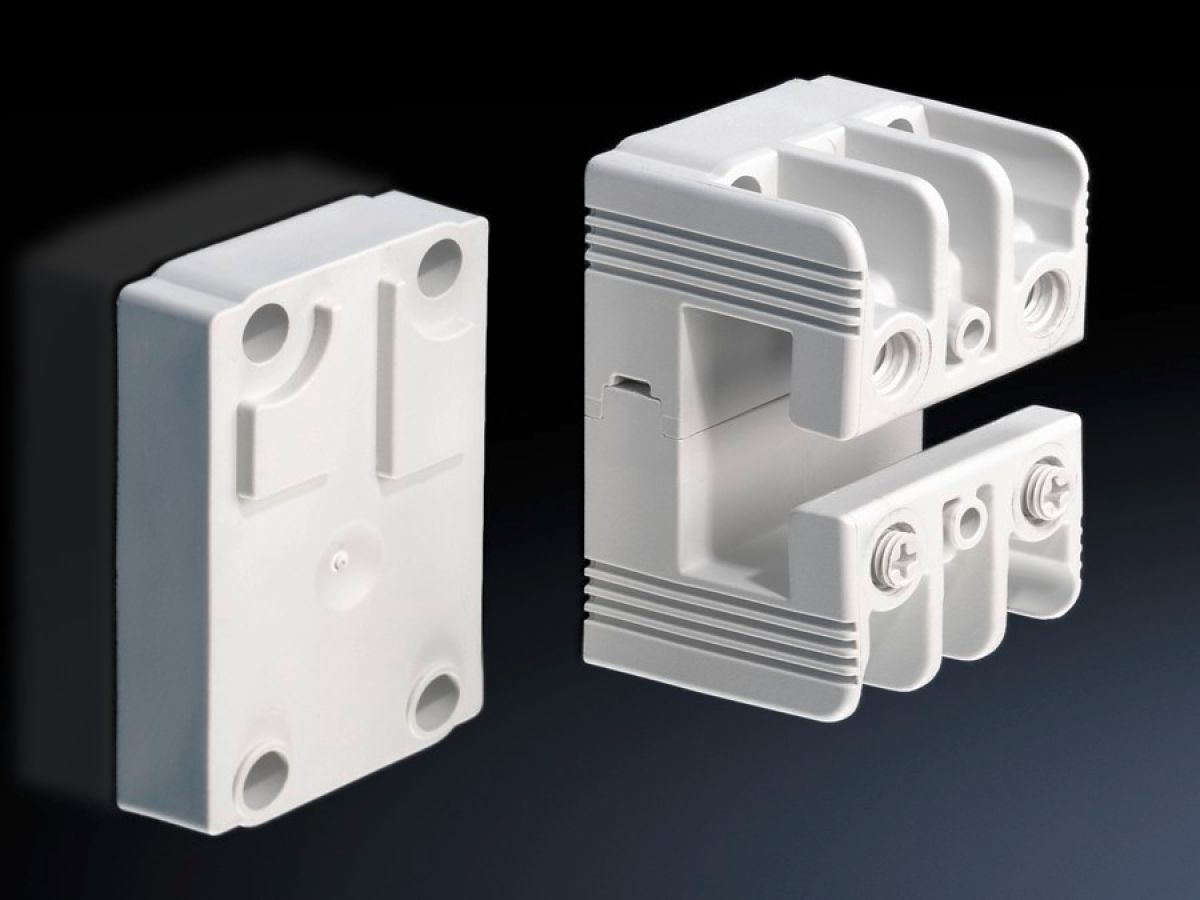

Rittal SV 9342.030, Busbar support 1-pole
Rittal SV 9342.030, Busbar support 1-pole
Regular price
€36,19
Regular price
Sale price
€36,19
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9342.030
Busbar support 1-pole
| Article number: | SV 9342.030 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Supply includes | Including raised section for stepped configuration of the PLS busbars |
| To fit busbars | PLS 1600 |
| Number of poles | Single-pole |
| Note | Multi-pole systems with 60 mm bar centre distance may be configured by baying the busbar supports |
| Rated operating voltage | 1000 V, 1~ |
| PEN/N/PE support | Yes |
| Packs of | 4 pc(s). |
| Net weight | 0.28 kg |
| Gross weight | 0.306 kg |
| Customs tariff number | 85469010 |
| EAN | 4028177614925 |
| ETIM 9 | EC001166 |
| ECLASS 8.0 | 27400607 |
| Product description | SV Busbar support, PLS 1600, 1-pole |
