Rittal

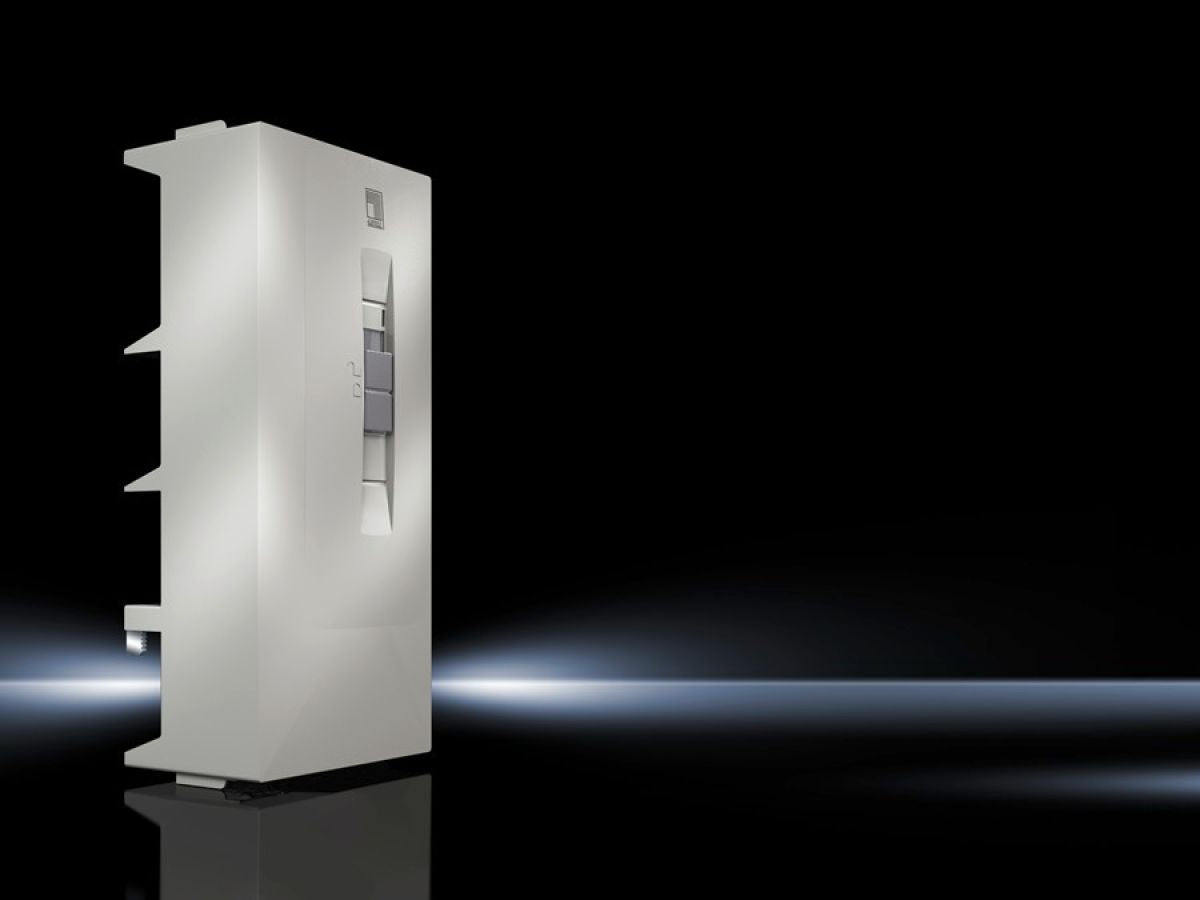

Rittal SV 9342.254, Connection adaptor
Rittal SV 9342.254, Connection adaptor
Regular price
€62,33
Regular price
Sale price
€62,33
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9342.254
For bar systems with 60 mm centre-to-centre spacing.
| Article number: | SV 9342.254 |
| Material | Cover: ABSPunched section: PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Rated current max. | 250 A |
| Rated operating voltage | 690 V, 4~ |
| Electrical ratings UL (SCCR) | 50 kA - 600 V, Fuse Class K5 max. 250 A, JDDZ/7 |
| Cable outlet | Top/bottom |
| For bar systems with centre-to-centre spacing | 60 mm |
| Note | The technical data may vary for UL applications |
| Number of poles | 4-pole |
| Dimensions | Width: 118 mmHeight: 270 mm |
| Connection of round conductors, fine wire with wire end ferrule | 35 ‐ 120 mm² |
| Connection of round conductors, multi-wire | 35 ‐ 120 mm² |
| To fit busbars | Height: 5, 10 mm |
| Clamping area for laminated copper bars (W x H) | 18.5 x 15.5 mm |
| Packs of | 1 pc(s). |
| Net weight | 1.17 kg |
| Gross weight | 1.18 kg |
| Copper weight (kg per piece) | 0.222 |
| Customs tariff number | 85369010 |
| EAN | 4028177536838 |
| ETIM 9 | EC001531 |
| ECLASS 8.0 | 27370304 |
| Product description | SV Connection adaptor, 250 A, 690 V, 4-pole, cable outet top/bottom, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm |
