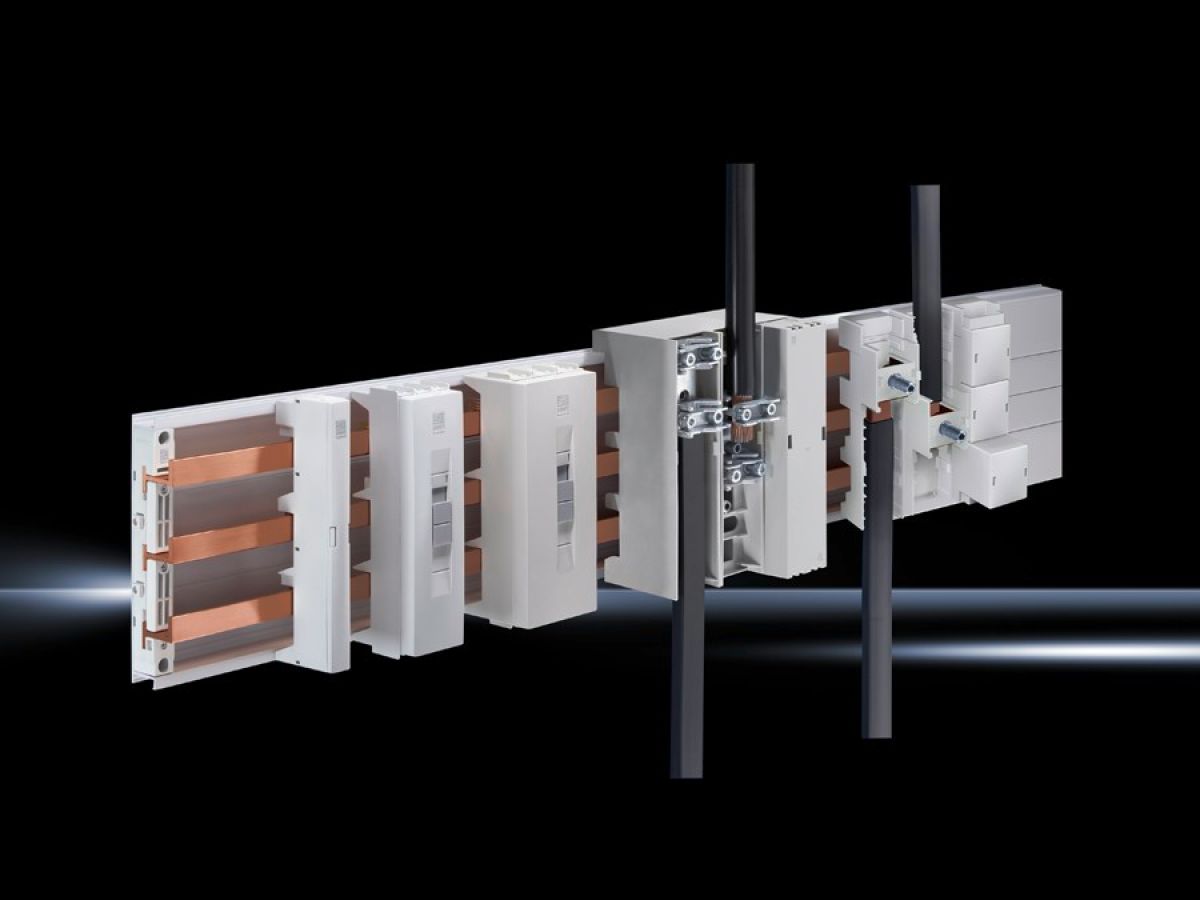

Rittal SV 9342.310, Connection adaptor
Rittal SV 9342.310, Connection adaptor
Regular price
€89,03
Regular price
Sale price
€89,03
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9342.310
For bar systems with 60 mm centre-to-centre spacing.
| Article number: | SV 9342.310 |
| Material | Cover: ABSPunched section: PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Rated current max. | 800 A |
| Rated operating voltage | 690 V, 3~ |
| Electrical ratings UL (SCCR) | 65 kA - 480 V, circuit breaker max. 600 A, DIVQ/7 |
| Cable outlet | Top/bottom |
| For bar systems with centre-to-centre spacing | 60 mm |
| Note | The technical data may vary for UL applications |
| Number of poles | 3-pole |
| Dimensions | Width: 150 mmHeight: 210 mm |
| Connection of round conductors, fine wire with wire end ferrule | 95 ‐ 185 mm² |
| Connection of round conductors, multi-wire | 95 ‐ 300 mm² |
| To fit busbars | Height: 5, 10 mm |
| Clamping area for laminated copper bars with 5 mm bar thickness (W x H) | 33 x 26 mm |
| Clamping area for laminated copper bars with 10 mm bar thickness (W x H) | 33 x 21 mm |
| Rated operating voltage (L1 + L2) | 1000 V (DC) |
| Rated operating voltage (L1 + L3) | 1500 V (DC) |
| Packs of | 1 pc(s). |
| Net weight | 1.74 kg |
| Gross weight | 1.772 kg |
| Copper weight (kg per piece) | 0.207 |
| Customs tariff number | 85369010 |
| EAN | 4028177525672 |
| ETIM 9 | EC001531 |
| ECLASS 8.0 | 27370304 |
| Product description | SV Connection adaptor, 800 A, 690 V, 3-pole, cable outet top/bottom, round conductor connection 95-300 mm², clamping area WH: 33x21/26 mm |
