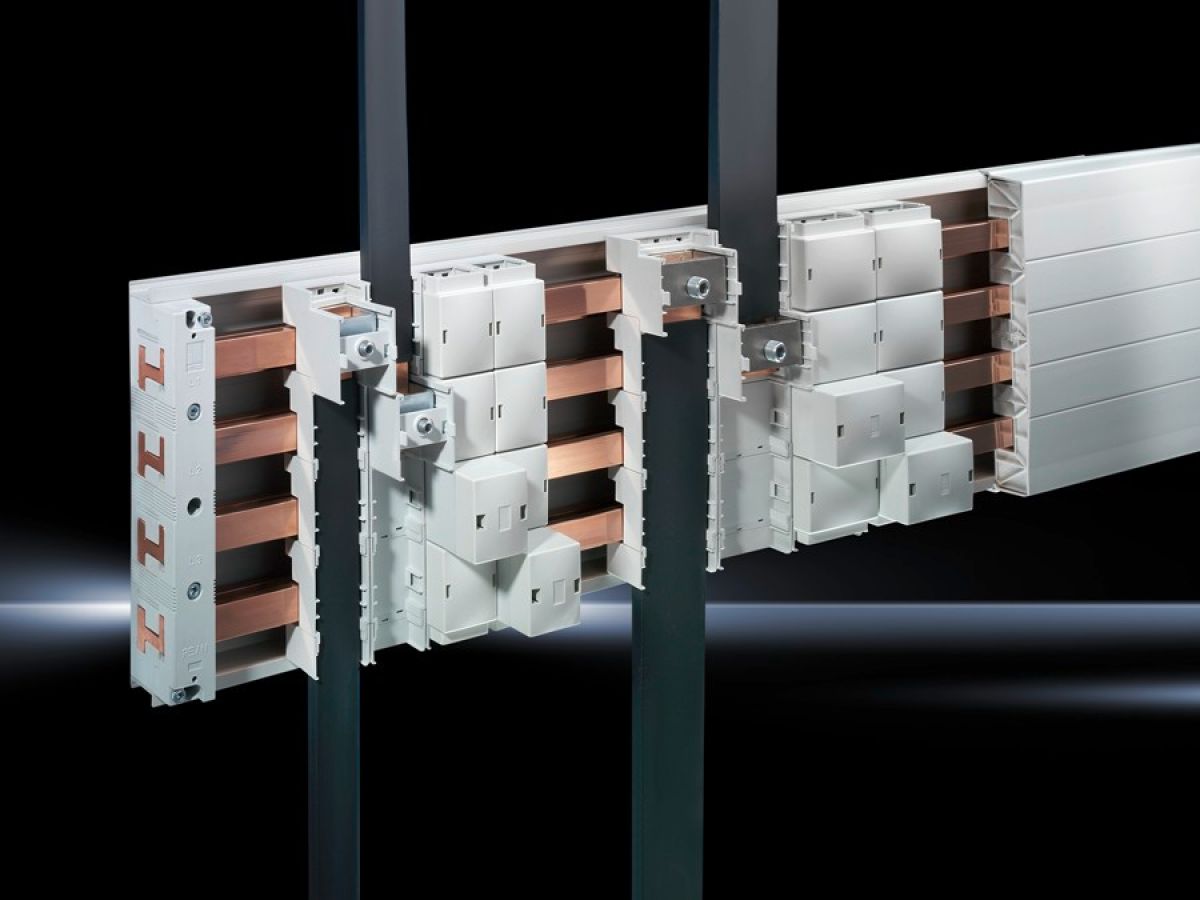

Rittal SV 9342.314, Connection adaptor expansion set for 4-pole configuration
Rittal SV 9342.314, Connection adaptor expansion set for 4-pole configuration
Regular price
€56,47
Regular price
Sale price
€56,47
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9342.314
Single-pole extra set to complement the 3-pole connection adaptor (SV 9342.310/9342.320) for 4-pole configurations.
| Article number: | SV 9342.314 |
| Product description | Single-pole extra set to complement the 3-pole connection adaptor for 4-pole configurations. |
| Material | Cover: ABSPunched section: PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Rated current max. | 800 A |
| Rated operating voltage | 690 V, 1~ |
| Electrical ratings UL (SCCR) | 65 kA - 480 V, circuit breaker max. 600 A, DIVQ/7 |
| For bar systems with centre-to-centre spacing | 60 mm |
| Note | The technical data may vary for UL applications |
| Number of poles | Single-pole |
| To fit Model No. | 9342.310 |
| Dimensions | Width: 50 mmHeight: 270 mm |
| Connection of round conductors, fine wire with wire end ferrule | 95 ‐ 185 mm² |
| Connection of round conductors, multi-wire | 95 ‐ 300 mm² |
| To fit busbars | Height: 5, 10 mm |
| Clamping area for laminated copper bars with 5 mm bar thickness (W x H) | 33 x 26 mm |
| Clamping area for laminated copper bars with 10 mm bar thickness (W x H) | 33 x 21 mm |
| Packs of | 1 pc(s). |
| Net weight | 0.8 kg |
| Gross weight | 0.88 kg |
| Copper weight (kg per piece) | 0.096 |
| Customs tariff number | 85369010 |
| EAN | 4028177536869 |
| ETIM 9 | EC001531 |
| ECLASS 8.0 | 27370304 |
| Product description | SV Connection adaptor, 800 A, 690 V, 1-pole, expansion set, for SV 9342310 (configuration 4-pole), round conductor connection 95-120 mm², clamping area WH: 33x21/26 mm |
