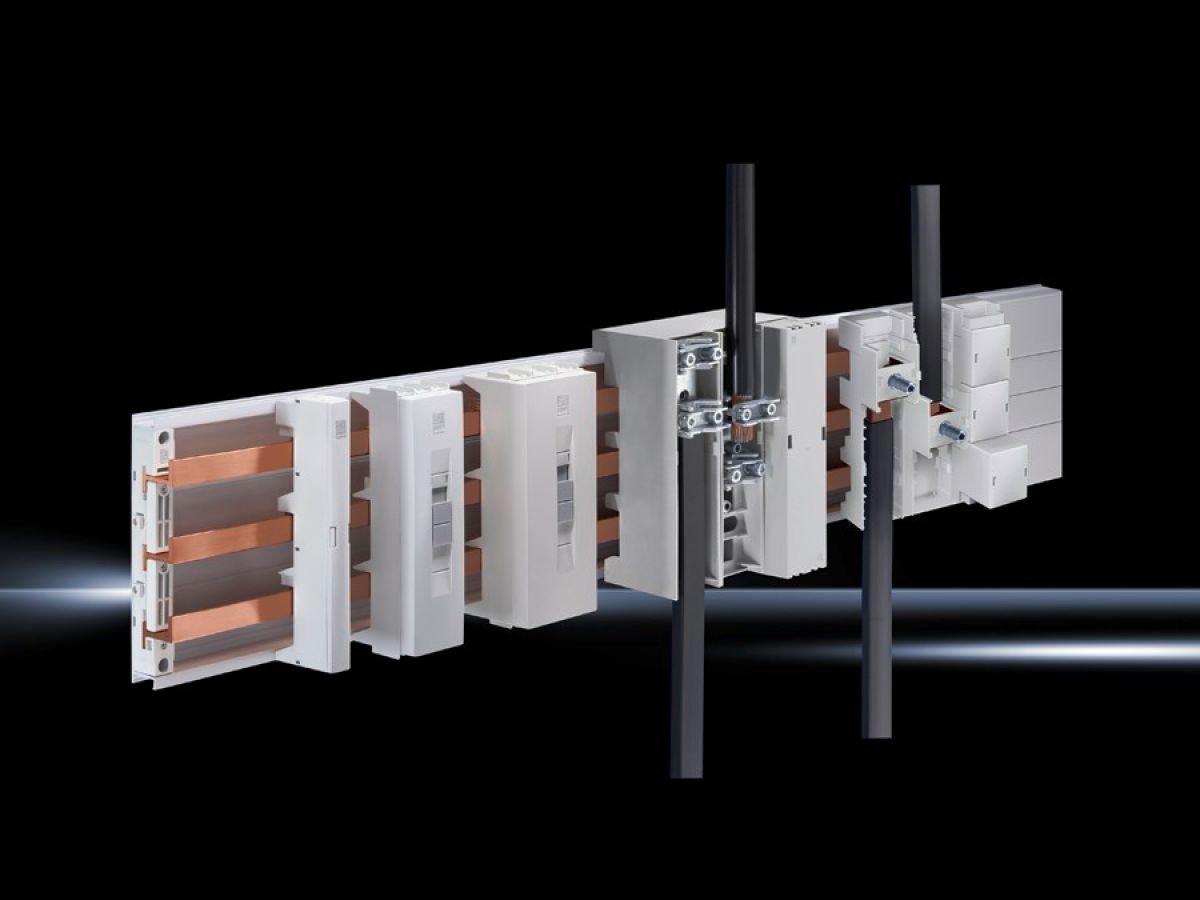

Rittal SV 9342.320, Connection adaptor
Rittal SV 9342.320, Connection adaptor
Regular price
€150,72
Regular price
Sale price
€150,72
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9342.320
For bar systems with 60 mm centre-to-centre spacing.
| Article number: | SV 9342.320 |
| Material | Cover: ABSPunched section: PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Rated current max. | 1,600 A |
| Rated operating voltage | 690 V, 3~ |
| Electrical ratings UL (SCCR) | 65 kA - 480 V, circuit breaker max. 1200 A, DIVQ/7 |
| Cable outlet | Top/bottom |
| For bar systems with centre-to-centre spacing | 60 mm |
| Note | The technical data may vary for UL applications |
| Number of poles | 3-pole |
| Dimensions | Width: 255 mmHeight: 210 mm |
| To fit busbars | Height: 5, 10 mm |
| Clamping area for laminated copper bars with 5 mm bar thickness (W x H) | 65 x 27 mm |
| Clamping area for laminated copper bars with 10 mm bar thickness (W x H) | 65 x 22 mm |
| Rated operating voltage (L1 + L2) | 1000 V (DC) |
| Rated operating voltage (L1 + L3) | 1500 V (DC) |
| Packs of | 1 pc(s). |
| Net weight | 2 kg |
| Gross weight | 2.72 kg |
| Copper weight (kg per piece) | 0.408 |
| Customs tariff number | 85369010 |
| EAN | 4028177525689 |
| ETIM 9 | EC001531 |
| ECLASS 8.0 | 27370304 |
| Product description | SV Connection adaptor, 1600 A, 690 V, 3-pole, cable outet top/bottom, clamping area WH: 65x22/27 mm |
