Rittal

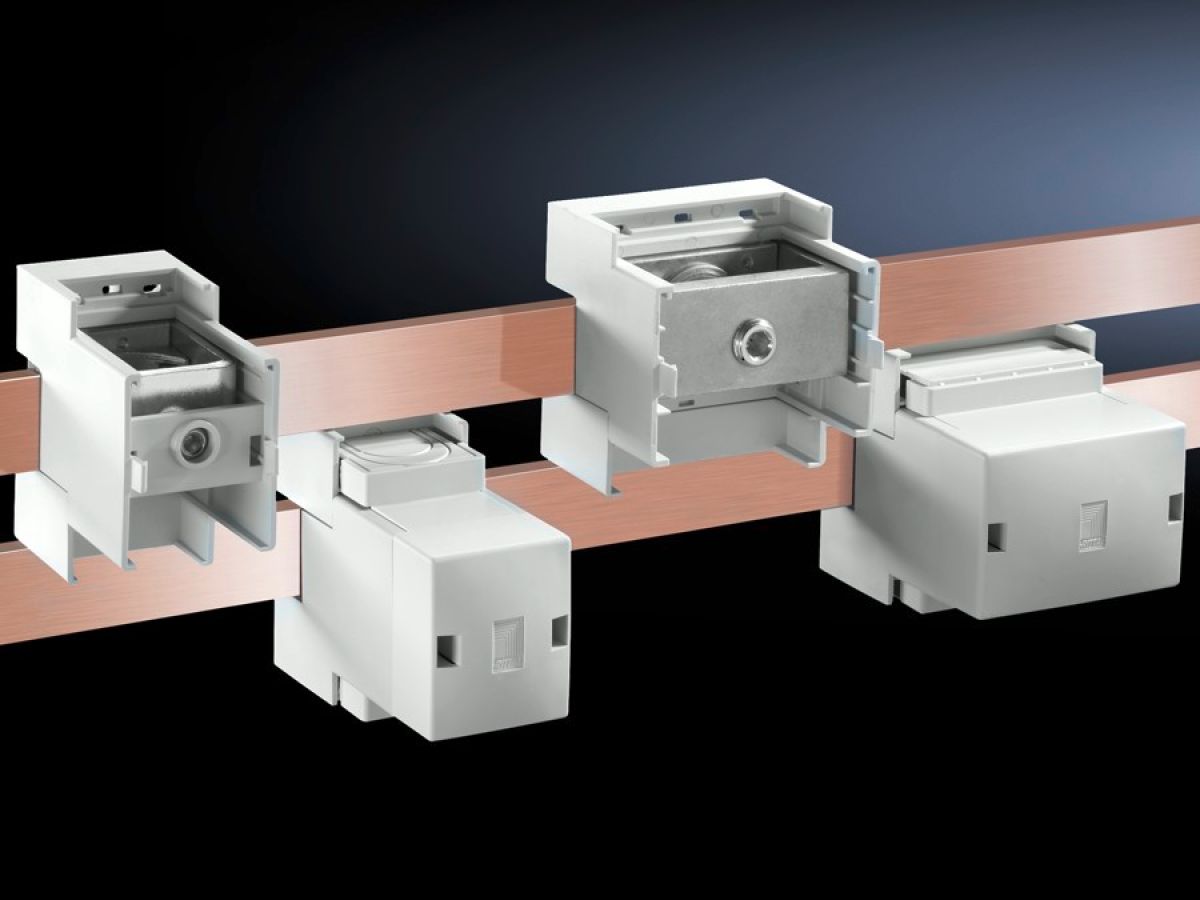

Rittal SV 9342.321, Connection block
Rittal SV 9342.321, Connection block
Regular price
€150,72
Regular price
Sale price
€150,72
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9342.321
For connecting round conductors and laminated copper bars. Suitable for busbars 12 x 5 to 30 x 10 mm and PLS 800/1600.
| Article number: | SV 9342.321 |
| Product description | Suitable for busbars 12 x 5 to 30 x 10 mm and PLS 800/1600. |
| Material | Punched section: PolyamideCover: ABSFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Supply includes | 3 terminals including cover |
| Clamping area for laminated copper bars with 5 mm bar thickness (W x H) | 65 x 27 mm |
| Clamping area for laminated copper bars with 10 mm bar thickness (W x H) | 65 x 22 mm |
| Cable outlet | Top/bottom |
| Rated current max. | 1,600 A |
| Electrical ratings UL (SCCR) | 65 kA - 480 V, circuit breaker max. 1200 A, DIVQ/7 |
| Note | With overvoltage category III, a rated operating voltage of 1,000 V (AC) is achieved. |
| Dimensions | Width: 85 mmHeight: 88 mm |
| Packs of | 3 pc(s). |
| Net weight | 2.1 kg |
| Gross weight | 2.197 kg |
| Copper weight (kg per piece) | 0.136 |
| Customs tariff number | 85369095 |
| EAN | 4028177625266 |
| ETIM 9 | EC002270 |
| ECLASS 8.0 | 27400613 |
| Product description | SV Connection block, 1600 A, 690 V, 1-pole, cable outet top/bottom, clamping area WH: 65x22/27 mm |
