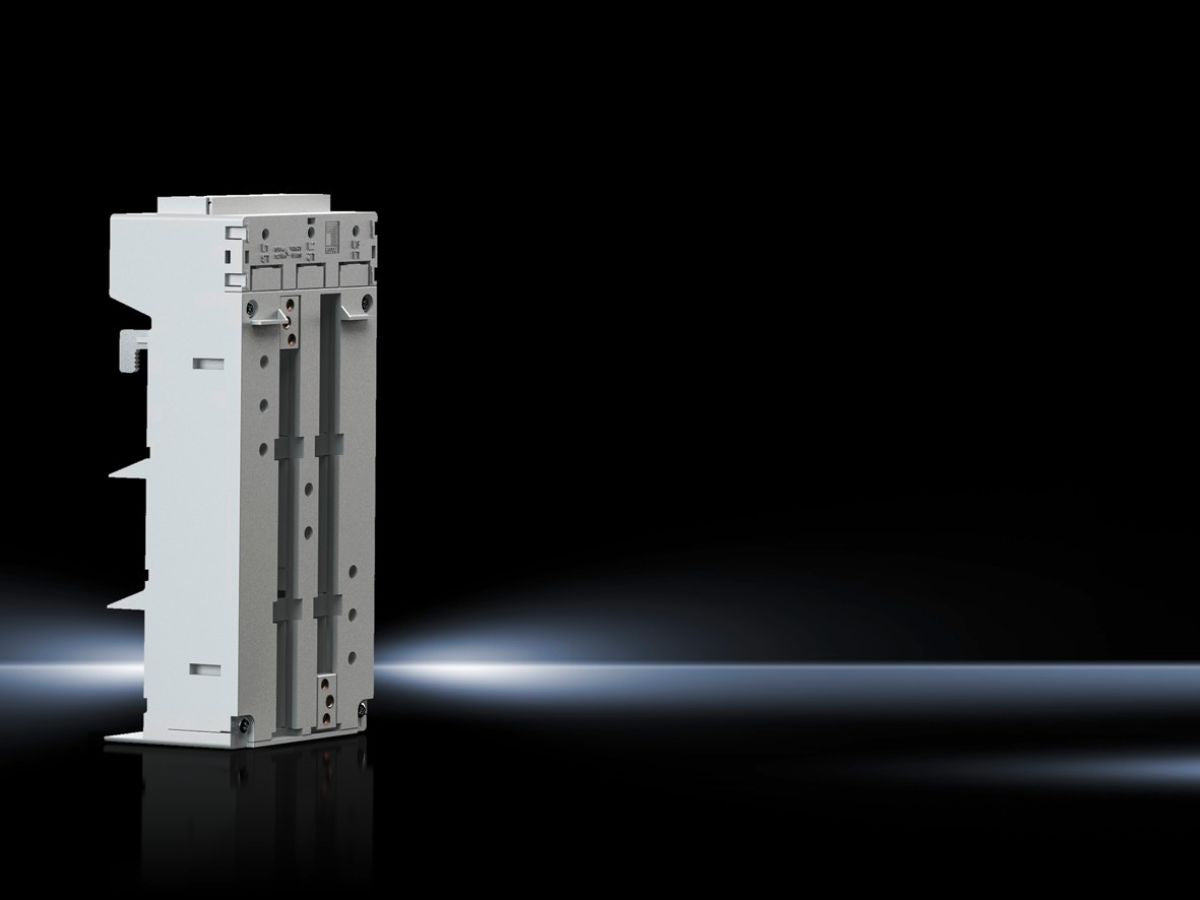

Rittal SV 9342.610, Circuit-breaker component adaptor 3-pole
Rittal SV 9342.610, Circuit-breaker component adaptor 3-pole
Regular price
€93,60
Regular price
Sale price
€93,60
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9342.610
Circuit-breaker adaptor for universal, simplified assembly of circuit-breakers.
| Article number: | SV 9342.610 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Supply includes | Terminal coverSliding blocks |
| Type of electrical connection | Box terminal |
| Rated current max. | 250 A |
| Rated operating voltage | 690 V, 3~ |
| Electrical ratings UL (SCCR) | 65 kA - 480 V, circuit breaker max. 250 A, DIVQ/7 |
| Cable outlet | Bottom |
| For bar systems with centre-to-centre spacing | 60 mm |
| Note | Cable outlet: Switch outlet or as outgoing cable from the switchgear |
| Number of poles | 3-pole |
| Dimensions | Width: 105 mmHeight: 240 mm |
| Connection of round conductors | 35 ‐ 120 mm² |
| To fit busbars | Height: 5, 10 mm |
| Clamping area for laminated copper bars (W x H) | 18.5 x 15.5 mm |
| To fit manufacturer (model) | ABB (S3, T3, T4/320 A, T3 UL, T4 UL, XT3, XT4) |
| Packs of | 1 pc(s). |
| Net weight | 1.299 kg |
| Gross weight | 1.311 kg |
| Copper weight (kg per piece) | 0.426 |
| Customs tariff number | 85369095 |
| EAN | 4028177503809 |
| ETIM 9 | EC001531 |
| ECLASS 8.0 | 27370304 |
| Product description | CB component adaptor 250 A, 3-pole, cable outlet bottom (60 mm), RAL 7035 |
