Rittal

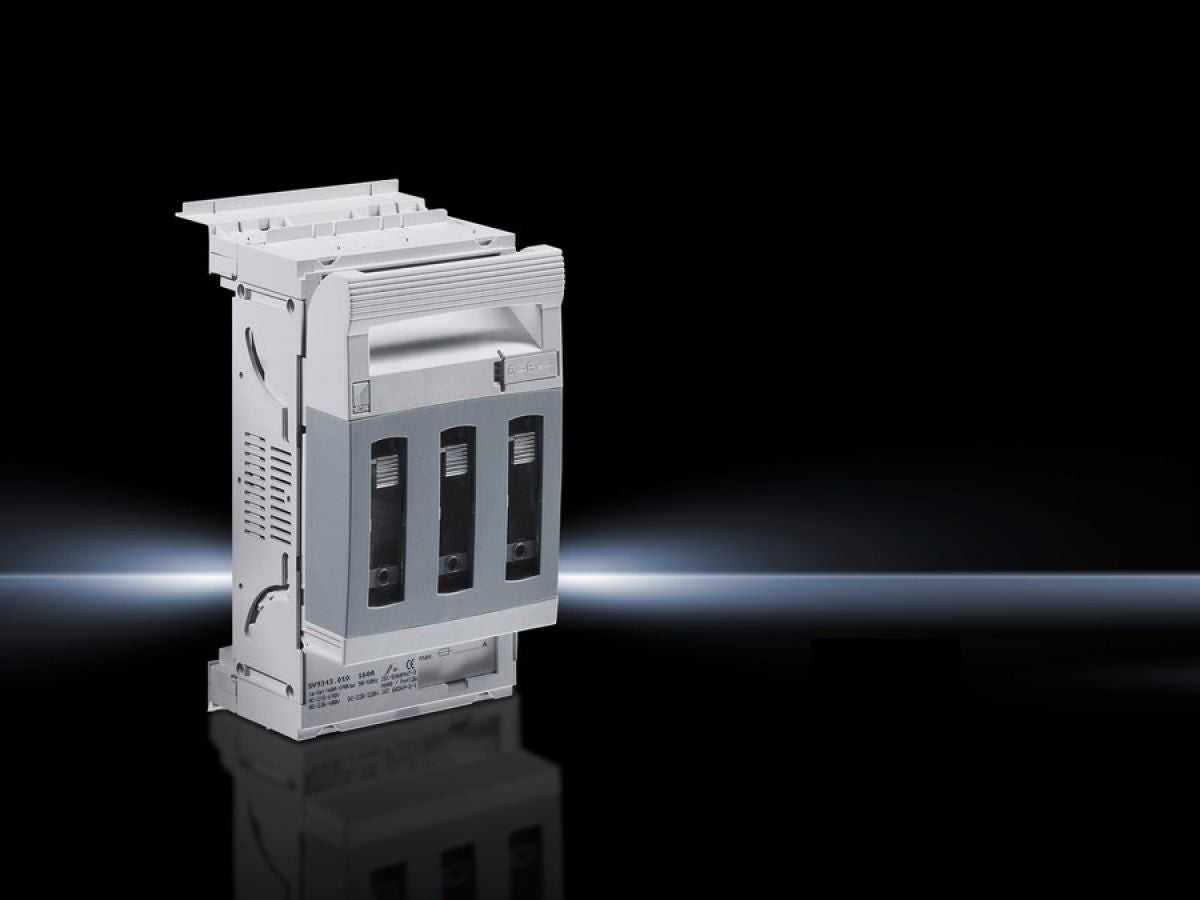

Rittal SV 9343.010, NH fuse-switch disconnector
Rittal SV 9343.010, NH fuse-switch disconnector
Regular price
€67,32
Regular price
Sale price
€67,32
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9343.010
NH fuse-switch disconnector
| Article number: | SV 9343.010 |
| Material | PolyamideFire protection corresponding to UL 94Contact tracks: Electrolytic copper, silver-plated |
| Colour | Chassis: RAL 7035Cover: RAL 7035/7001 |
| Clamping area for laminated copper bars | Clamping area width: 20 mmClamping area height: 5 mm |
| For bar systems with centre-to-centre spacing | 60 mm |
| Cable outlet | Top/bottom |
| Type of electrical connection | Screw M8 |
| Rated operating current max. | 160 A |
| Rated operating voltage | 690 V, 3~ |
| For NH size | 00 |
| Note | The technical data may vary for UR applications. Applications to UR only in conjunction with "Special Purpose Fuses". |
| Test specification | IEC/DIN EN 60 947-3 |
| Dimensions | Width: 106 mmHeight: 194 mm |
| Connection of round conductors | 10 ‐ 95 mm² |
| To fit busbars | Height: 5, 10 mm |
| Number of poles | 3-pole |
| Packs of | 1 pc(s). |
| Net weight | 0.84 kg |
| Gross weight | 0.94 kg |
| Copper weight (kg per piece) | 0.2 |
| Customs tariff number | 85369095 |
| EAN | 4028177540262 |
| ETIM 9 | EC000249 |
| ECLASS 8.0 | 27371401 |
| Product description | SV NH fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8 |
