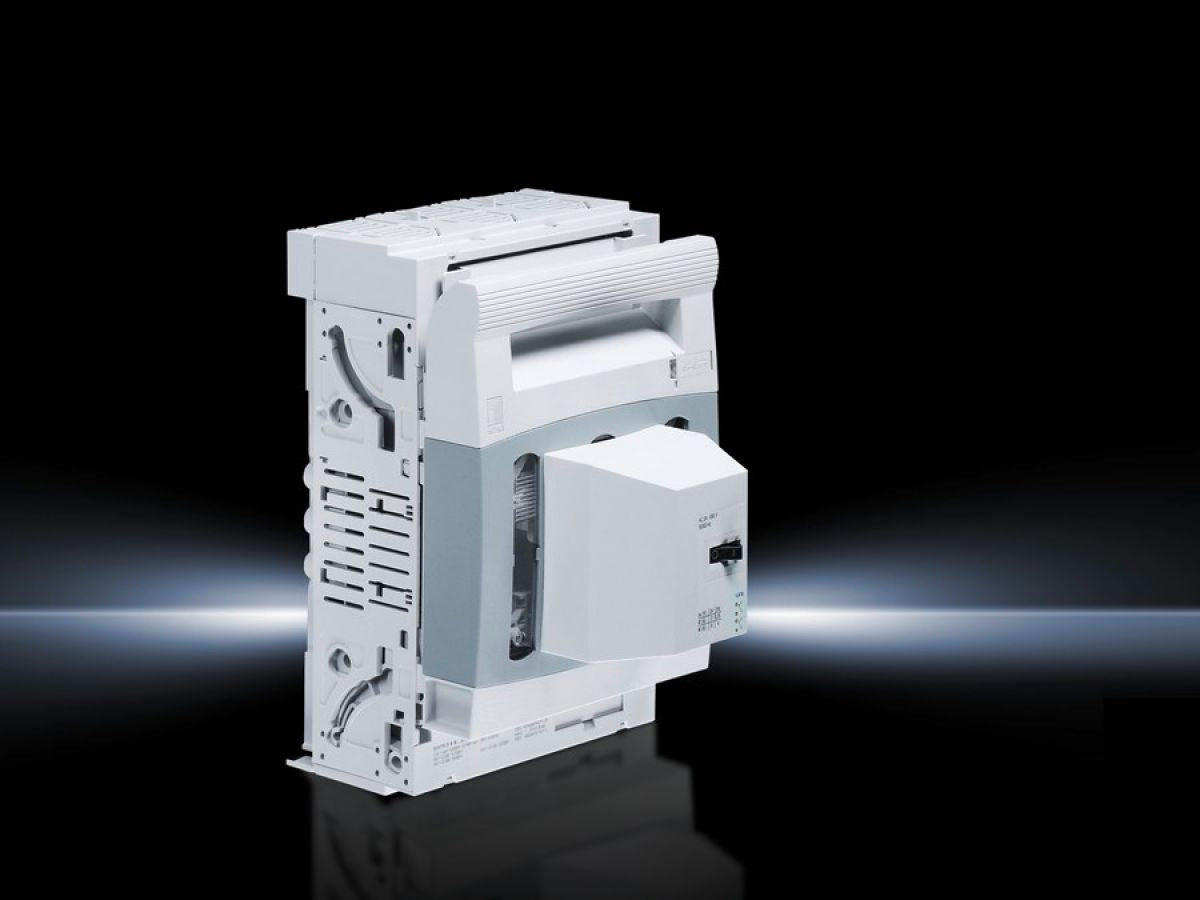

Rittal SV 9343.250, NH fuse-switch disconnector with electromechanical fuse monitoring
Rittal SV 9343.250, NH fuse-switch disconnector with electromechanical fuse monitoring
Regular price
€493,33
Regular price
Sale price
€493,33
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9343.250
NH fuse-switch disconnector with electromechanical fuse monitoring
| Article number: | SV 9343.250 |
| Material | PolyamideFire protection corresponding to UL 94Contact tracks: Electrolytic copper, silver-plated |
| Colour | Chassis: RAL 7035Cover: RAL 7035/7001 |
| Clamping area for laminated copper bars | Clamping area width: 50 mmClamping area height: 10 mm |
| For bar systems with centre-to-centre spacing | 60 mm |
| Cable outlet | Top/bottom |
| Type of electrical connection | Screw M10 |
| Rated operating current max. | 400 A |
| Rated operating voltage | 690 V, 3~ |
| For NH size | 2 |
| Test specification | IEC/DIN EN 60 947-3 |
| Dimensions | Width: 210 mmHeight: 298 mm |
| Connection of round conductors | 10 ‐ 240 mm² |
| To fit busbars | Height: 5, 10 mm |
| Number of poles | 3-pole |
| Packs of | 1 pc(s). |
| Net weight | 3.66 kg |
| Gross weight | 3.71 kg |
| Copper weight (kg per piece) | 1 |
| Customs tariff number | 85369095 |
| EAN | 4028177540439 |
| ETIM 9 | EC000249 |
| ECLASS 8.0 | 27371401 |
| Product description | SV NH fuse-switch disconnector, size 2, 400 A, 690 V, 3-pole, screw M10, with electromechanical fuse monitoring |
