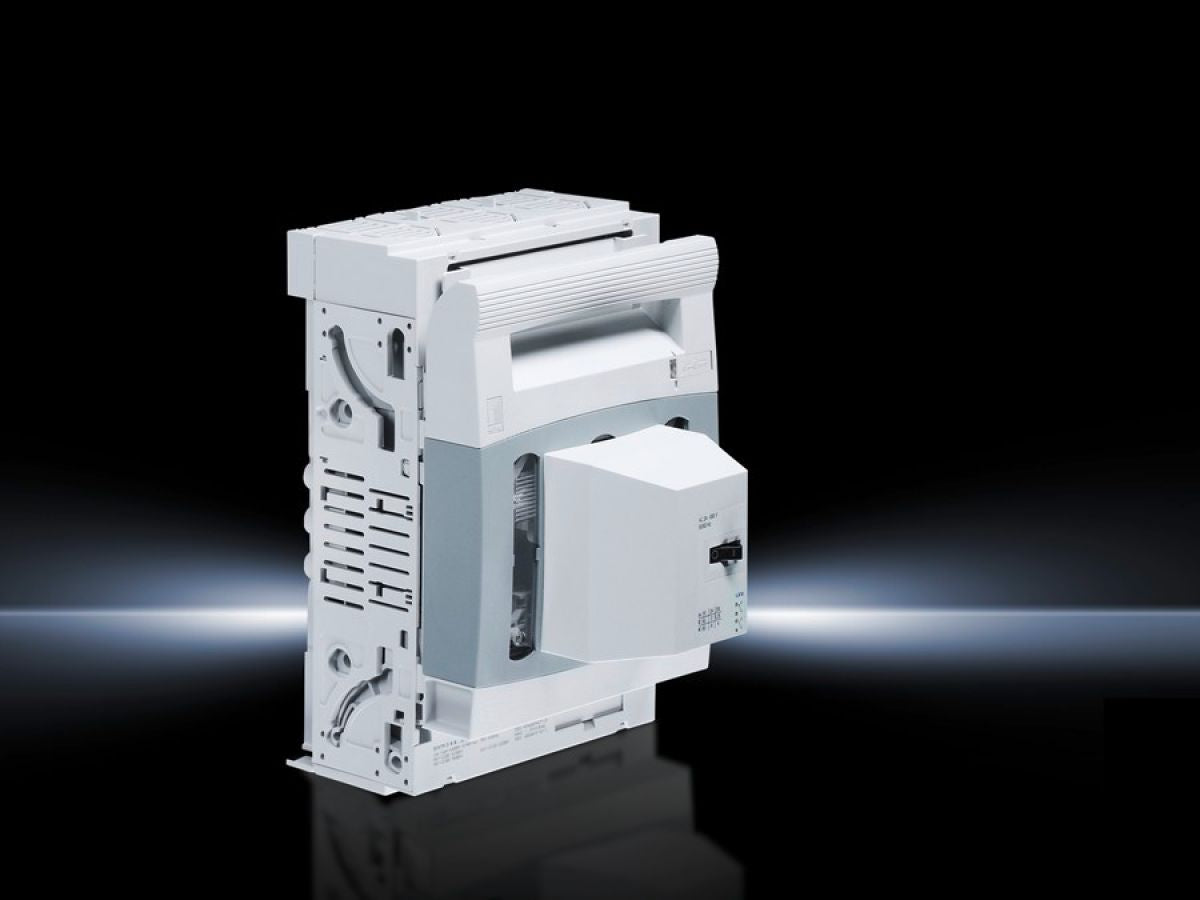

Rittal SV 9344.350, NH fuse-switch disconnector with electromechanical fuse monitoring
Rittal SV 9344.350, NH fuse-switch disconnector with electromechanical fuse monitoring
Regular price
€463,88
Regular price
Sale price
€463,88
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9344.350
NH fuse-switch disconnector with electromechanical fuse monitoring
| Article number: | SV 9344.350 |
| Material | PolyamideFire protection corresponding to UL 94Contact tracks: Electrolytic copper, silver-plated |
| Colour | Chassis: RAL 7035Cover: RAL 7035/7001 |
| Clamping area for laminated copper bars | Clamping area width: 50 mmClamping area height: 10 mm |
| for mounting plate assembly | Yes |
| Cable outlet | Top/bottom |
| Type of electrical connection | Screw M10 |
| Rated operating current max. | 630 A |
| Rated operating voltage | 690 V, 3~ |
| For NH size | 3 |
| Test specification | IEC/DIN EN 60 947-3 |
| Dimensions | Width: 250 mmHeight: 298 mm |
| Connection of round conductors | 10 ‐ 300 mm² |
| Number of poles | 3-pole |
| Packs of | 1 pc(s). |
| Net weight | 4.159 kg |
| Gross weight | 4.16 kg |
| Copper weight (kg per piece) | 1.06 |
| Customs tariff number | 85369095 |
| EAN | 4028177540750 |
| ETIM 9 | EC000249 |
| ECLASS 8.0 | 27371401 |
| Product description | SV NH fuse-switch disconnector, size 3, 630 A, 690 V, 3-pole, screw M10, with electromechanical fuse monitoring, for mounting plate assembly |
