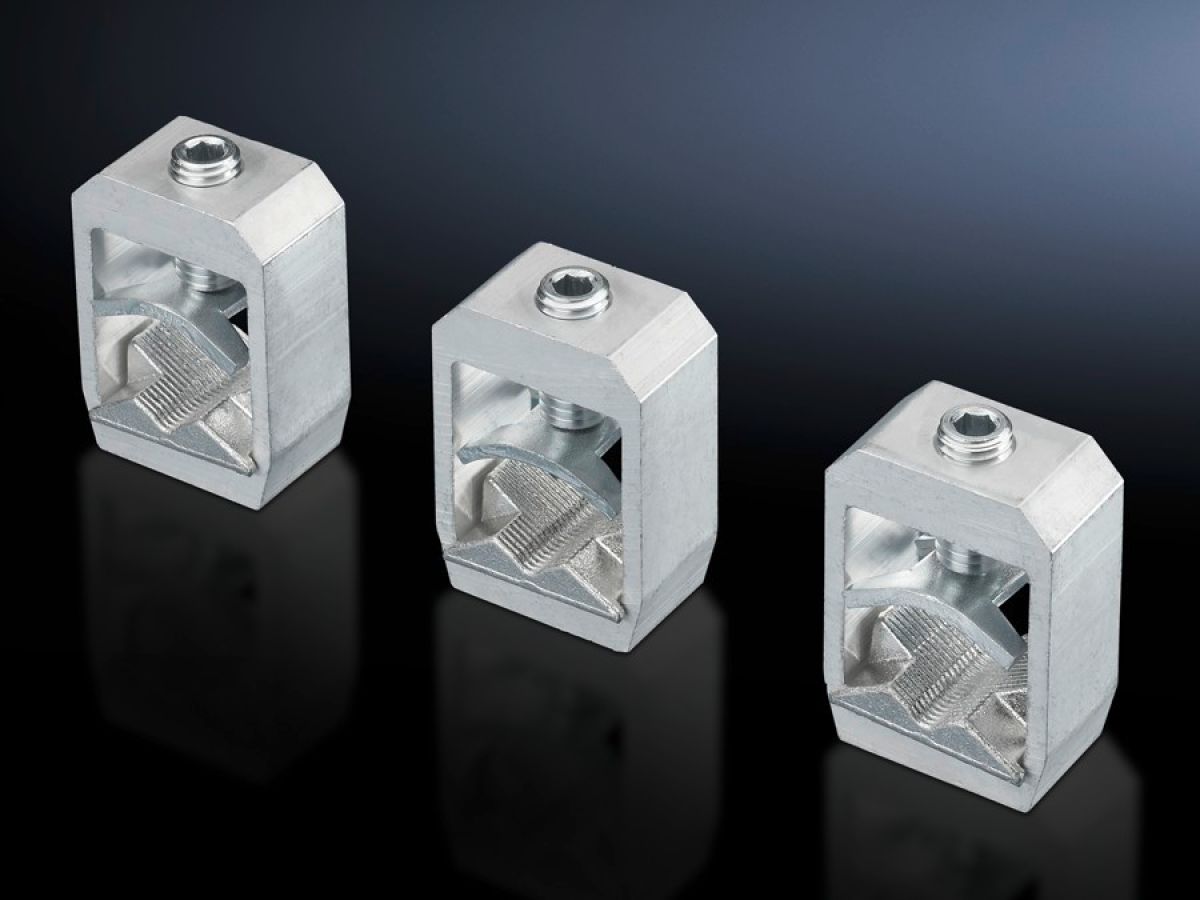

Rittal SV 9344.620, Box terminal for NH fuse-switch disconnectors
Rittal SV 9344.620, Box terminal for NH fuse-switch disconnectors
Regular price
€36,48
Regular price
Sale price
€36,48
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9344.620
For NH fuse-switch disconnectors size 1 to 3 with screw terminal. For direct connection of round and sector-shaped conductors.
| Article number: | SV 9344.620 |
| Product description | For direct connection of round and sector-shaped conductors and laminated copper bars. Suitable for NH fuse-switch disconnectors with screw terminal. |
| Material | Cast brass |
| Surface finish | Nickel-plated |
| Clamping area for laminated copper bars | Clamping area width: 32 mmClamping area height: 20 mm |
| For size | 2/3 |
| OUT_COL_CROSS_SECTION_SECTOR_CONDUCTOR | 120 ‐ 300 mm² |
| Connection of round conductors | 95 ‐ 300 mm² |
| Packs of | 3 pc(s). |
| Net weight | 0.39 kg |
| Gross weight | 0.397 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177541016 |
| ETIM 9 | EC001894 |
| ECLASS 8.0 | 27400609 |
| Product description | SV Box terminal, for NH fuse-switch disconnector, size 2/3 (with screw terminal), round conductor connection 95-300 mm², clamping area WH: 32x20 mm |
