Rittal SV 9345.005, Fuse holders 31 A to 60 A
Rittal SV 9345.005, Fuse holders 31 A to 60 A
Regular price
€157,15
Regular price
Sale price
€157,15
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9345.005

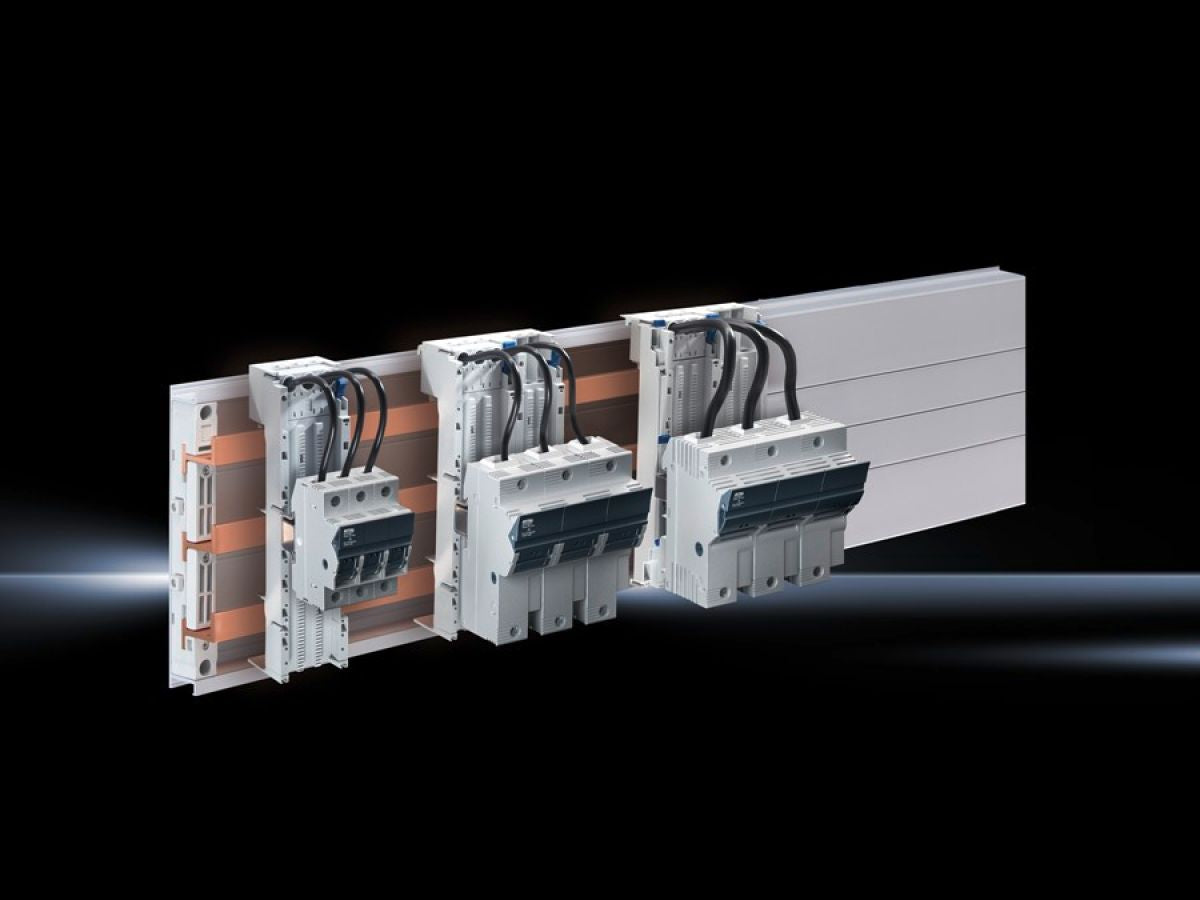

Fuse holders up to 60 A, 3-pole. Simple mounting on support rails or via OM component adaptors on busbars.
| Article number: | SV 9345.005 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Connection for round conductor | AWG 8 - 18 |
| For fuse type (class) | CC |
| Rated operating current max. | 30 A |
| Rated operating voltage | 600 V, 3~ |
| Fuse standard | UL 248-4 |
| Note | For snap-on mounting on 35 mm (7.5 mm/15 mm high) support rails to DIN EN 60 715 or RiLine component adaptor combinations (OM adaptors/supports) |
| Test specification | UL 4248-1 |
| Note on Model No. | Not suitable for accommodating fuses 10 x 38 mm to IEC 60 269-2/-4/-6 |
| Dimensions | Width: 54 mmHeight: 81 mm |
| Connection of round conductors | 0.75 ‐ 25 mm² |
| To fit fuses | Diameter: 10 mmLength: 38 mm |
| Voltage range for indicator lights | 110 ‐ 600 V |
| Electrical ratings UL (SCCR) | 200 kA - 600 V, Fuse Class CC max. 30 A, JDDZ/7 |
| Number of poles | 3-pole |
| Packs of | 4 pc(s). |
| Net weight | 0.4 kg |
| Gross weight | 0.634 kg |
| Copper weight (kg per piece) | 0.018 |
| Customs tariff number | 85369095 |
| EAN | 4028177805385 |
| ETIM 9 | EC001644 |
| ECLASS 8.0 | 27400613 |
| Product description | SV Fuseholder, Class CC, 30 A, 600 V, 3-pole, (60 mm) |
