Rittal SV 9345.015, Fuse holders 31 A to 60 A
Rittal SV 9345.015, Fuse holders 31 A to 60 A
Regular price
€179,42
Regular price
Sale price
€179,42
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9345.015

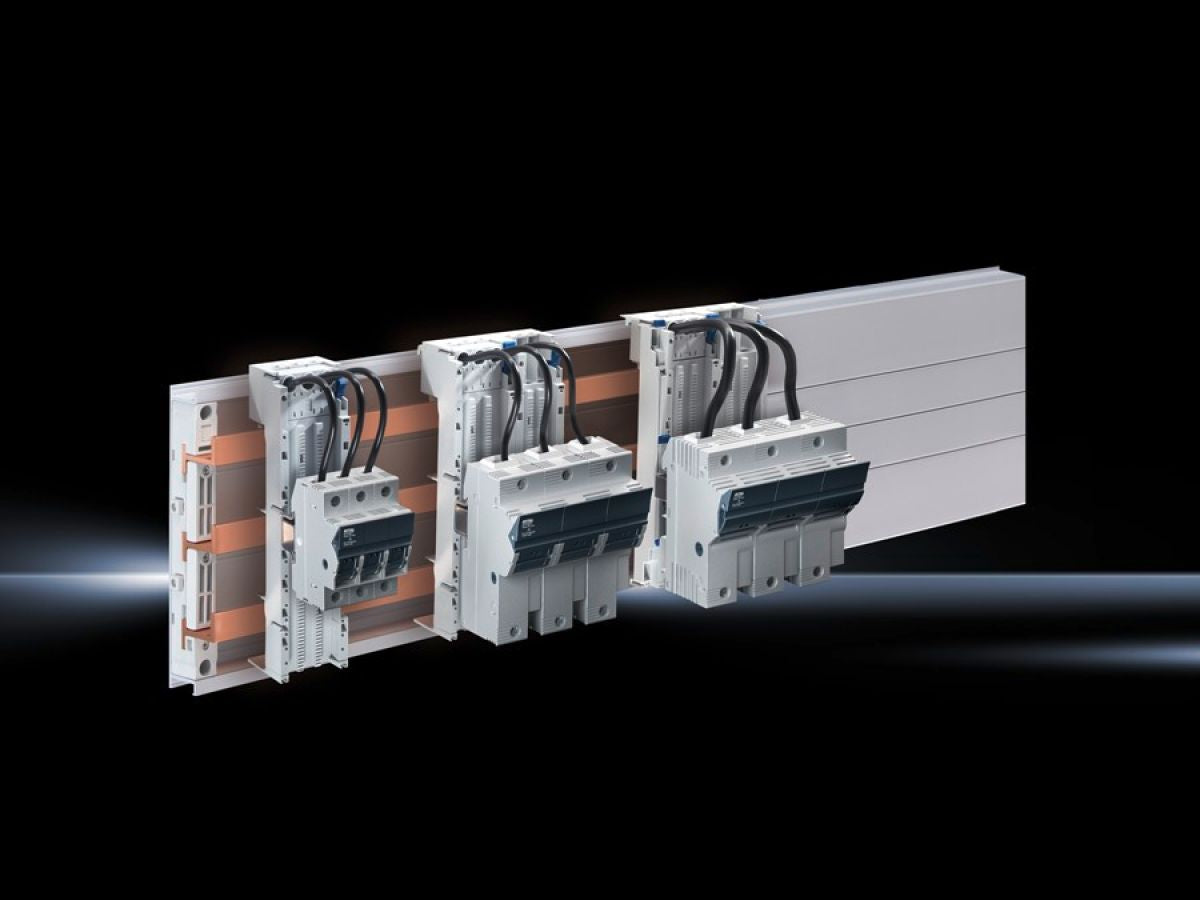

Fuse holders up to 60 A, 3-pole. Simple mounting on support rails or via OM component adaptors on busbars.
| Article number: | SV 9345.015 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Connection for round conductor | AWG 1 - 18 |
| For fuse type (class) | J |
| Rated operating current max. | 30 A |
| Rated operating voltage | 600 V, 3~ |
| Fuse standard | UL 248-8 |
| Note | For snap-on mounting on 35 mm (7.5 mm/15 mm high) support rails to DIN EN 60 715 or RiLine component adaptor combinations (OM adaptors/supports) |
| Test specification | UL 4248-1 |
| Dimensions | Width: 108 mmHeight: 115 mm |
| Connection of round conductors | 1.5 ‐ 50 mm² |
| To fit fuses | Diameter: 21 mmLength: 57 mm |
| Voltage range for indicator lights | 110 ‐ 600 V |
| Electrical ratings UL (SCCR) | 200 kA - 600 V, Fuse Class J max. 30 A, JDDZ/7 |
| Number of poles | 3-pole |
| Packs of | 2 pc(s). |
| Net weight | 0.84 kg |
| Gross weight | 0.966 kg |
| Copper weight (kg per piece) | 0.072 |
| Customs tariff number | 85361090 |
| EAN | 4028177805392 |
| ETIM 9 | EC001644 |
| ECLASS 8.0 | 27400613 |
| Product description | SV Fuseholder, Class J, 30 A, 600 V, 3-pole, (60 mm) |
