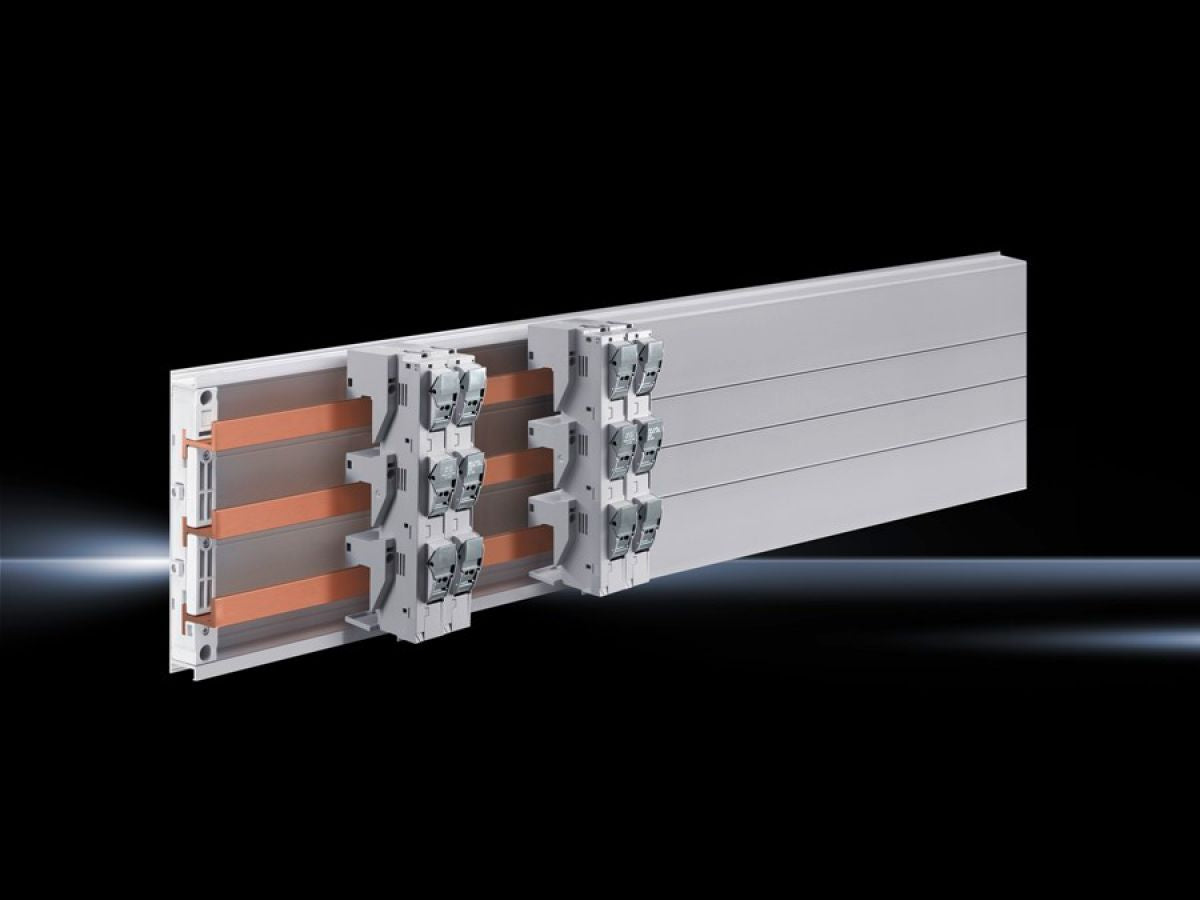

Rittal SV 9345.040, Fuse holders 30 A
Rittal SV 9345.040, Fuse holders 30 A
Regular price
€225,40
Regular price
Sale price
€225,40
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9345.040
3-pole, for busbar systems with 60 mm bar centre distance.
| Article number: | SV 9345.040 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Connection for round conductor | AWG 10 - 16 |
| For bar systems with centre-to-centre spacing | 60 mm |
| For fuse type (class) | CC |
| Rated operating current max. | 30 A |
| Rated operating voltage | 600 V, 3~ |
| Fuse standard | UL 248-4 |
| Note | Not suitable for accommodating fuses 10 x 38 mm to IEC 60 269-2/-4/-6 |
| Test specification | UL 4248-4 |
| Dimensions | Width: 27 mmHeight: 200 mm |
| Connection of round conductors | 1.5 ‐ 6 mm² |
| To fit fuses | Diameter: 10 mmLength: 38 mm |
| To fit busbars | Height: 5, 10 mm |
| Voltage range for indicator lights | 110 ‐ 600 V |
| Electrical ratings UL (SCCR) | 200 kA - 600 V, Fuse Class CC max. 30 A, JDDZ/7 |
| Number of poles | 3-pole |
| Packs of | 4 pc(s). |
| Net weight | 0.4 kg |
| Gross weight | 0.84 kg |
| Copper weight (kg per piece) | 0.032 |
| Customs tariff number | 85361050 |
| EAN | 4028177709294 |
| ETIM 9 | EC001644 |
| ECLASS 8.0 | 27400613 |
| Product description | SV Fuse holder, Class CC, 30 A, 600 V, 3-pole, (60 mm) |
