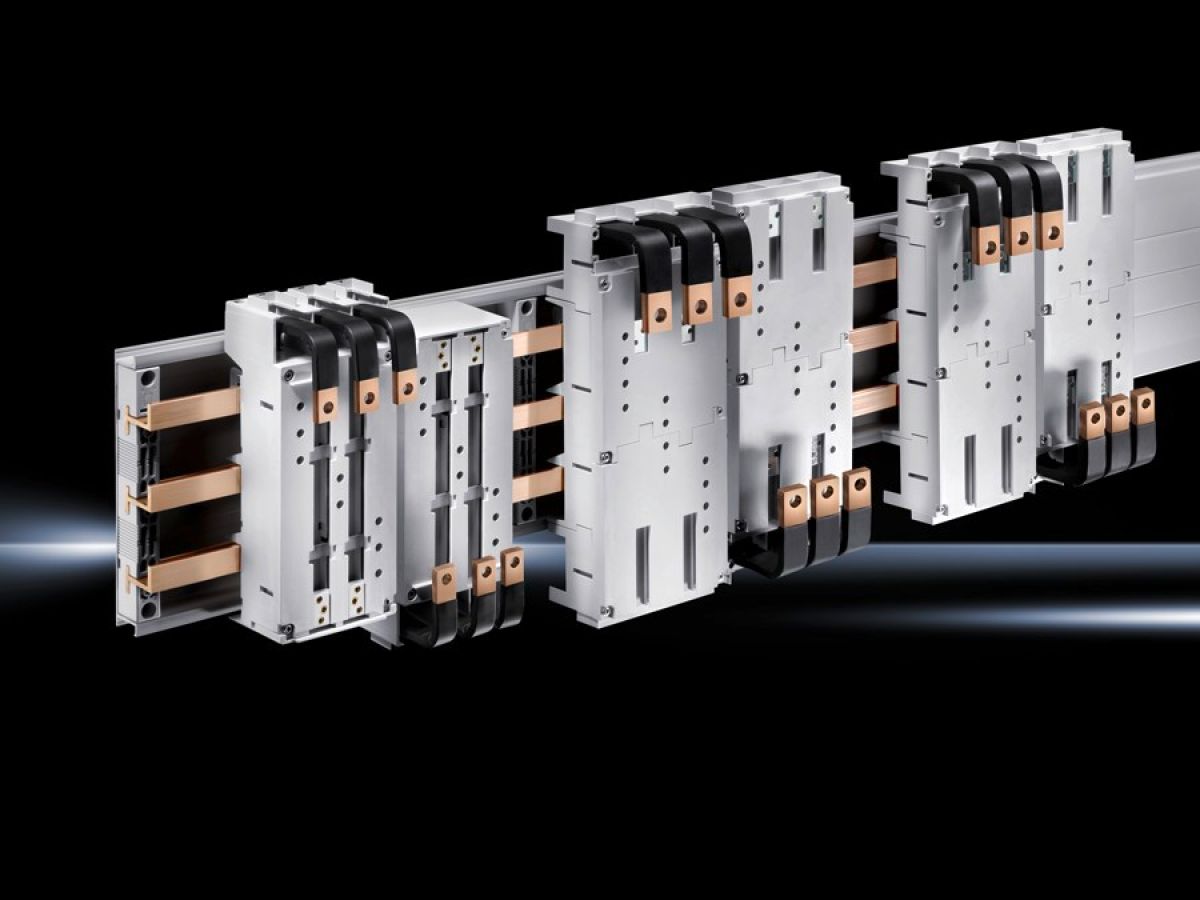

Rittal SV 9345.610, Circuit-breaker component adaptor 3-pole
Rittal SV 9345.610, Circuit-breaker component adaptor 3-pole
Regular price
€97,60
Regular price
Sale price
€97,60
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9345.610
Circuit-breaker adaptor for universal, simplified assembly of circuit-breakers.
| Article number: | SV 9345.610 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Supply includes | Connection strapsSliding blocks |
| Rated current max. | 250 A |
| Rated operating voltage | 690 V, 3~ |
| Electrical ratings UL (SCCR) | 65 kA - 480 V, circuit breaker max. 250 A, DIVQ/7 |
| Cable outlet | Bottom |
| For bar systems with centre-to-centre spacing | 60 mm |
| Note | Cable outlet: Switch outlet or as outgoing cable from the switchgear |
| Number of poles | 3-pole |
| Dimensions | Width: 105 mmHeight: 240 mm |
| To fit busbars | Height: 5, 10 mm |
| To fit manufacturer (model) | ABB (S3, T3, T4/320 A, T3 UL, T4 UL, XT3, XT4) |
| Packs of | 1 pc(s). |
| Net weight | 1.433 kg |
| Gross weight | 1.515 kg |
| Copper weight (kg per piece) | 0.77 |
| Customs tariff number | 85369095 |
| EAN | 4028177679986 |
| ETIM 9 | EC001531 |
| ECLASS 8.0 | 27370304 |
| Product description | SV Circuit-breaker component adaptor, 250 A, 690 V, 3-pole, cable outlet bottom, with connection straps |
