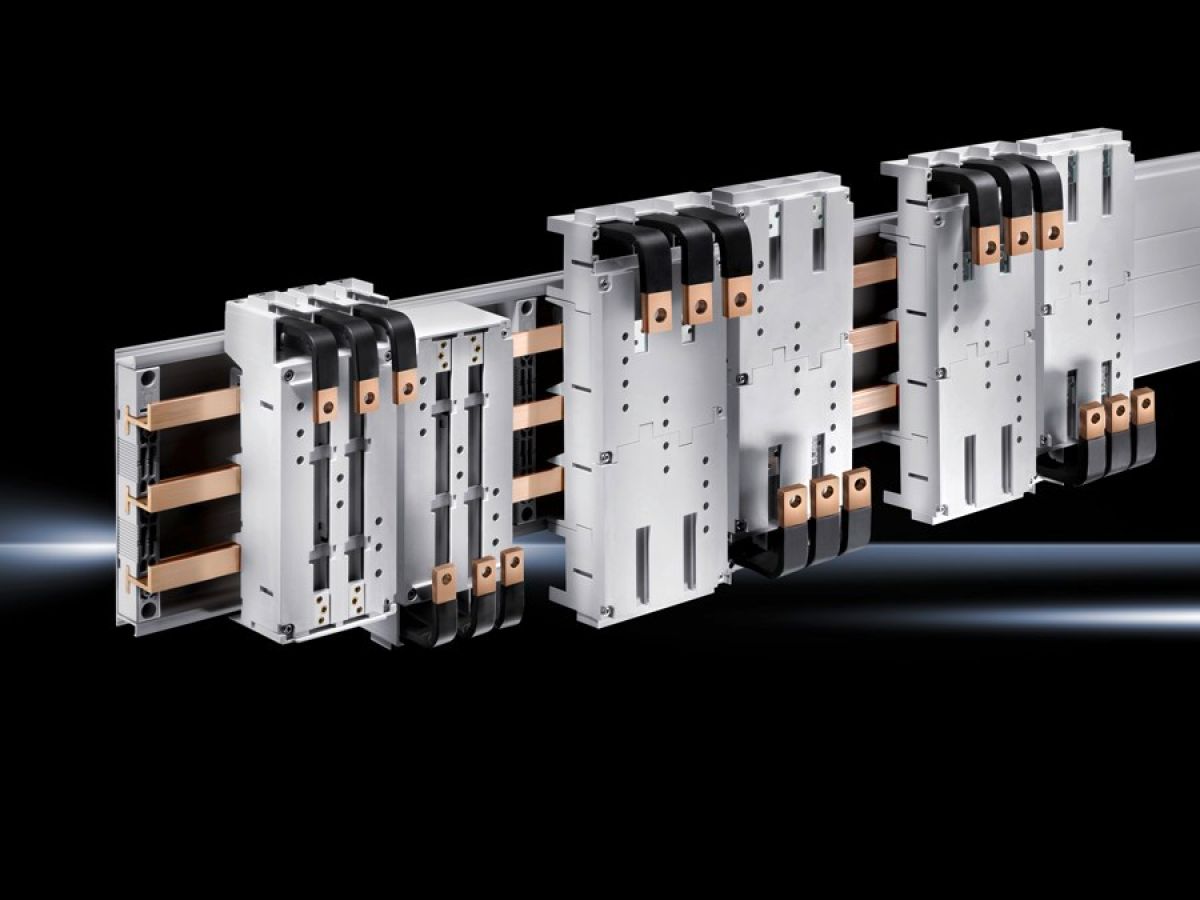

Rittal SV 9345.710, Circuit-breaker component adaptor 3-pole
Rittal SV 9345.710, Circuit-breaker component adaptor 3-pole
Regular price
€165,00
Regular price
Sale price
€165,00
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9345.710
Circuit-breaker adaptor for universal, simplified assembly of circuit-breakers.
| Article number: | SV 9345.710 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Supply includes | Connection strapsSliding blocks |
| Rated current max. | 630 A |
| Rated operating voltage | 690 V, 3~ |
| Electrical ratings UL (SCCR) | 65 kA - 480 V, circuit breaker max. 600 A, DIVQ/7 |
| Cable outlet | Bottom |
| For bar systems with centre-to-centre spacing | 60 mm |
| Note | Cable outlet: Switch outlet or as outgoing cable from the switchgear |
| Number of poles | 3-pole |
| Note on Model No. | When using the Siemens VL630 switchgear, insert strip 9342.720 is additionally required |
| Dimensions | Width: 140 mmHeight: 345 mm |
| To fit busbars | Height: 5, 10 mm |
| To fit manufacturer (model) | ABB (S5, T5, T5 UL) |
| Packs of | 1 pc(s). |
| Net weight | 3.65 kg |
| Gross weight | 3.8 kg |
| Copper weight (kg per piece) | 2.44 |
| Customs tariff number | 85369095 |
| EAN | 4028177680012 |
| ETIM 9 | EC001531 |
| ECLASS 8.0 | 27370304 |
| Product description | SV Circuit-breaker component adaptor, 630 A, 690 V, 3-pole, cable outlet bottom, with connection straps |
