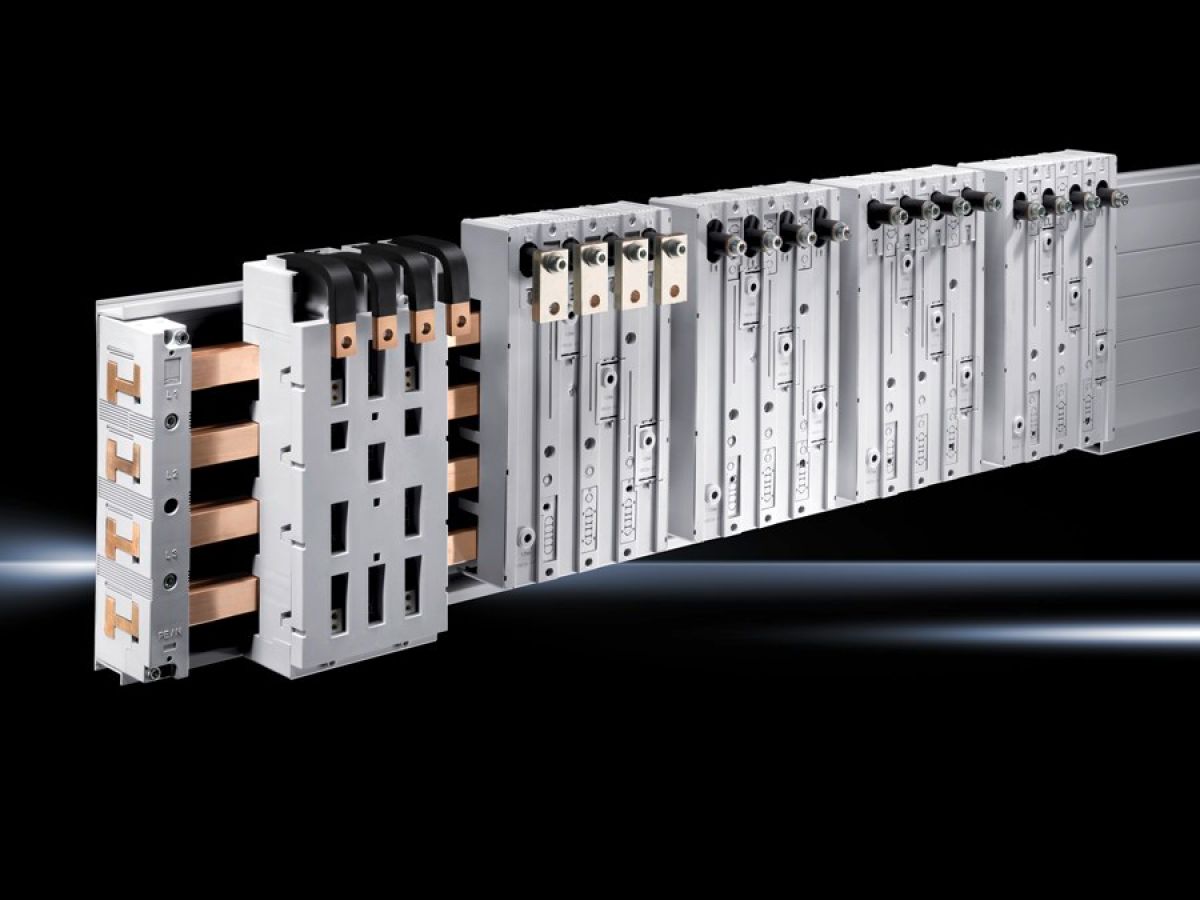

Rittal SV 9345.734, Circuit-breaker component adaptor 4-pole
Rittal SV 9345.734, Circuit-breaker component adaptor 4-pole
Regular price
€204,56
Regular price
Sale price
€204,56
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9345.734
Circuit-breaker component adaptor 4-pole
| Article number: | SV 9345.734 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Supply includes | Copper spacer rollConnection screws |
| Rated current max. | 500 A |
| Rated operating voltage | 690 V, 4~ |
| Cable outlet | Bottom |
| For bar systems with centre-to-centre spacing | 60 mm |
| Note | Cable outlet: Switch outlet or as outgoing cable from the switchgear |
| Number of poles | 4-pole |
| Dimensions | Width: 185 mmHeight: 300 mm |
| To fit busbars | Height: 5, 10 mm |
| To fit manufacturer (model) | Siemens |
| To fit manufacturer (model) | Siemens (VL400) |
| Packs of | 1 pc(s). |
| Net weight | 3.36 kg |
| Gross weight | 3.489 kg |
| Copper weight (kg per piece) | 2.103 |
| Customs tariff number | 85369095 |
| EAN | 4028177684546 |
| ETIM 9 | EC001531 |
| ECLASS 8.0 | 27370304 |
| Product description | SV Circuit-breaker component adaptor, 500 A, 690 V, 4-pole, cable outlet bottom, for switchgear make:, Siemens |
