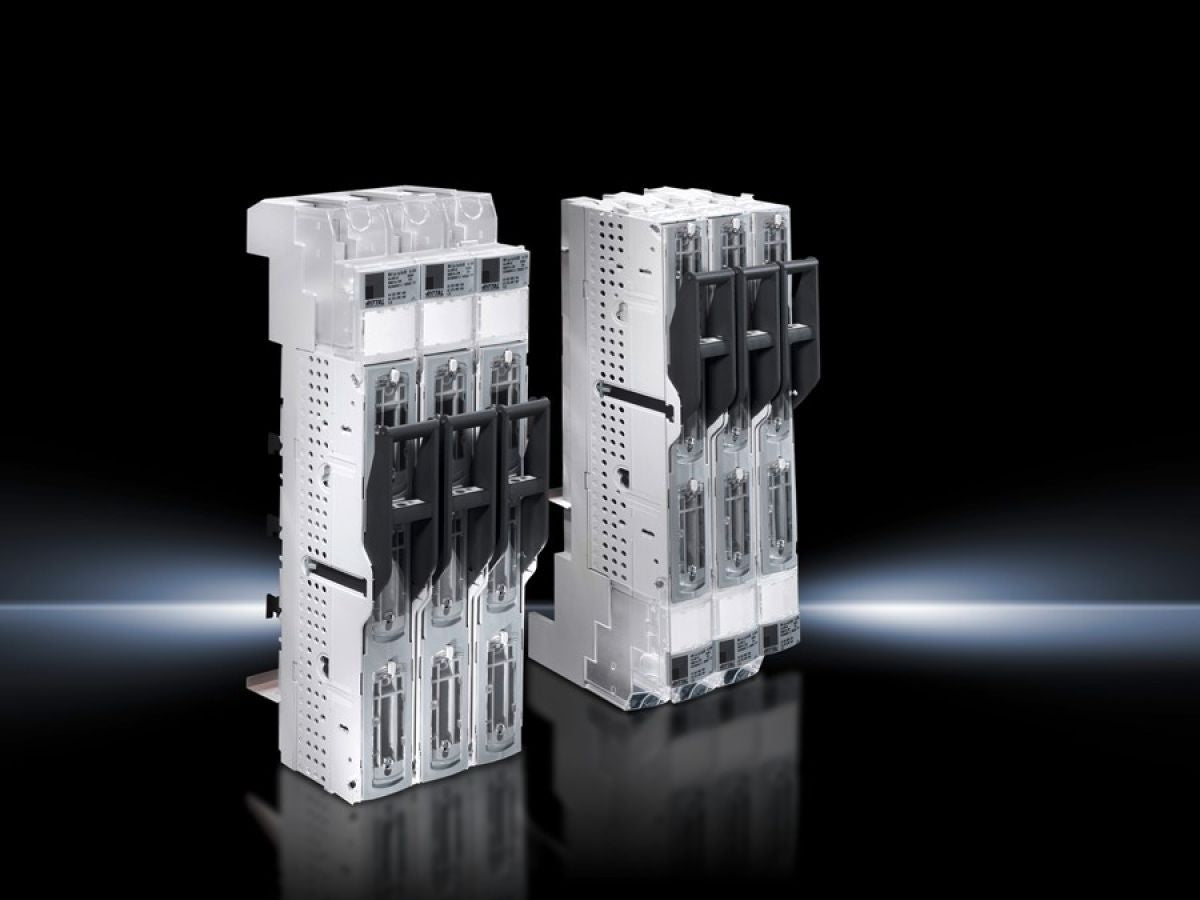

Rittal SV 9346.000, NH slimline fuse-switch disconnector
Rittal SV 9346.000, NH slimline fuse-switch disconnector
Regular price
€89,03
Regular price
Sale price
€89,03
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9346.000
NH slimline fuse-switch disconnector
| Article number: | SV 9346.000 |
| Material | Fibreglass-reinforced polyamideFire protection corresponding to UL 94-V0Contact tracks: Silver-plated hard copper |
| Colour | Chassis: RAL 7035Cover: RAL 7001Handle: RAL 7016 |
| Supply includes | 3 mounting hooks |
| For bar systems with centre-to-centre spacing | 60 mm |
| Cable outlet | Top/bottom |
| Type of electrical connection | Box terminal |
| Rated operating current max. | 160 A |
| Rated operating voltage | 690 V, 3~ |
| For NH size | 00 |
| Test specification | IEC/DIN EN 60 947-3 |
| Dimensions | Width: 50 mmHeight: 400 mm |
| Connection of round conductors | 2.5 ‐ 95 mm² |
| To fit busbars | Height: 5, 10 mm |
| Number of poles | 3-pole |
| Packs of | 1 pc(s). |
| Net weight | 1.1 kg |
| Gross weight | 1.3 kg |
| Copper weight (kg per piece) | 0.75 |
| Customs tariff number | 85369095 |
| EAN | 4028177628748 |
| ETIM 9 | EC001046 |
| ECLASS 8.0 | 27371402 |
| Product description | SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, box terminal, 60 mm |
