Rittal

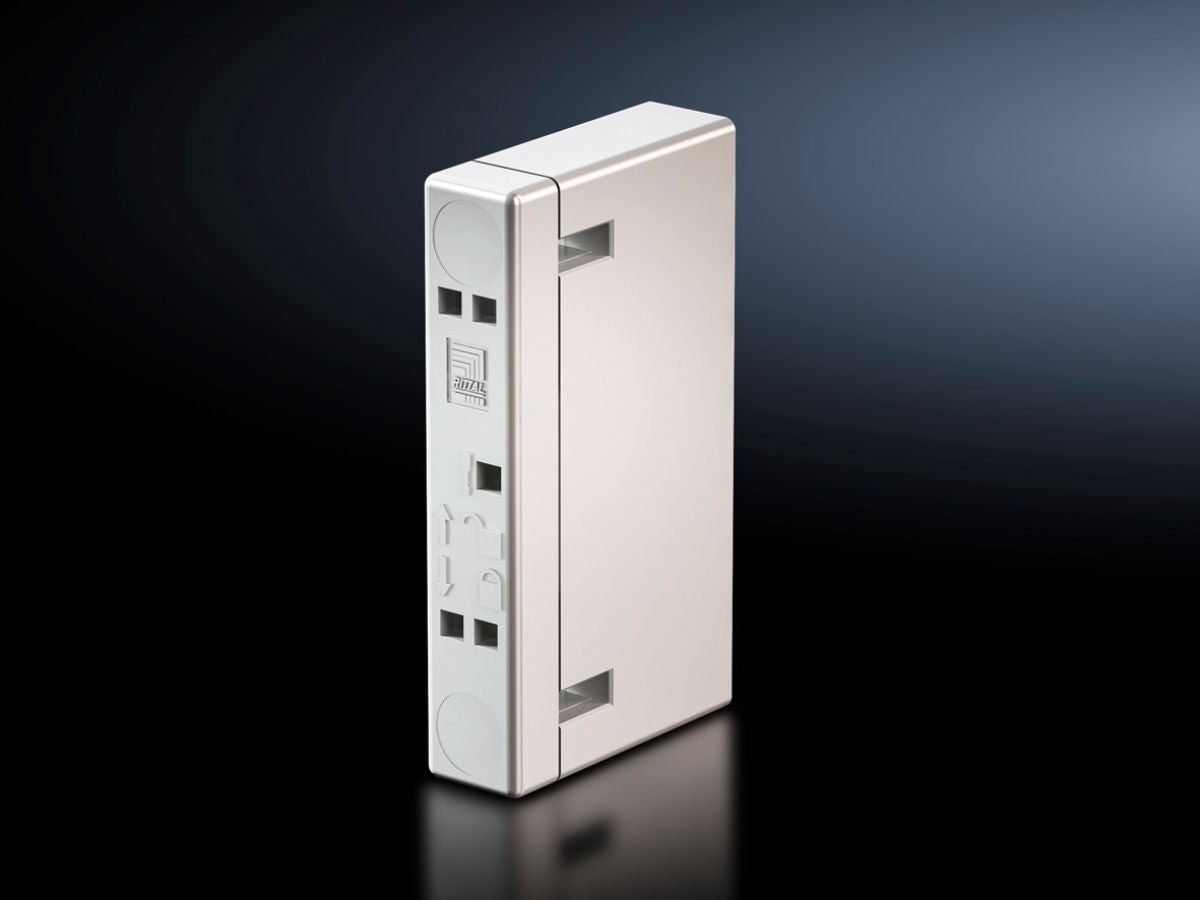

Rittal SV 9600.005, Busbar support 2-pole
Rittal SV 9600.005, Busbar support 2-pole
Regular price
€30,77
Regular price
Sale price
€30,77
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9600.005
For PEN/N/PE and N/PE applications.
| Article number: | SV 9600.005 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| To fit busbars | 12 x 5 mm |
| Number of poles | 2-pole |
| Centre-to-centre spacing of busbars | 70 mm |
| Rated operating voltage | 1000 V, 2~ |
| N/PE support | Yes |
| PEN/N/PE support | Yes |
| Packs of | 4 pc(s). |
| Net weight | 0.24 kg |
| Gross weight | 0.246 kg |
| Customs tariff number | 85469010 |
| EAN | 4028177809031 |
| ETIM 9 | EC001166 |
| ECLASS 8.0 | 27400607 |
| Product description | SV Busbar support, 2-pole, 70 mm bar centre distance, for busbar WH: 12x5 mm |
