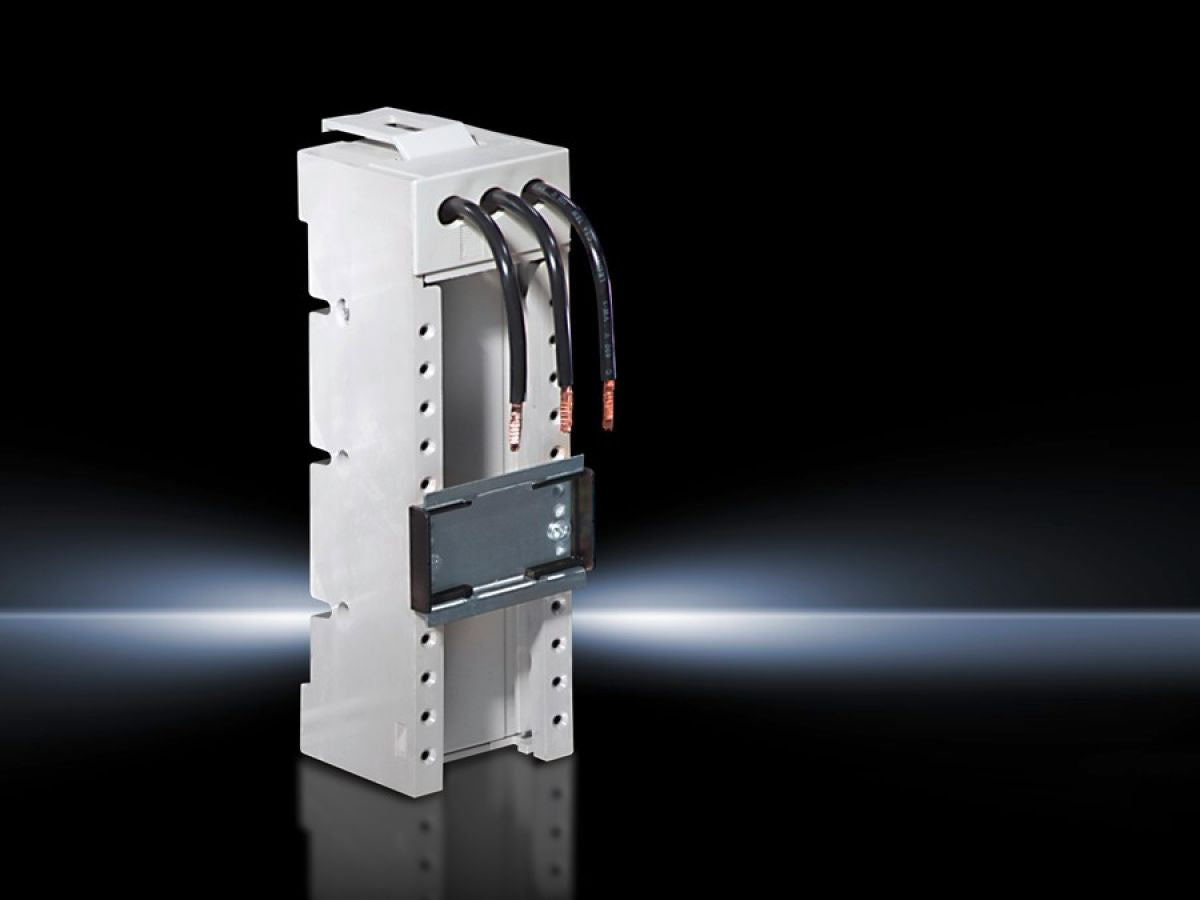

Rittal SV 9614.000, Mini-PLS component adaptor
Rittal SV 9614.000, Mini-PLS component adaptor
Regular price
€27,20
Regular price
Sale price
€27,20
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9614.000
Maximum rated current from 12 A to 100 A.
| Article number: | SV 9614.000 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Connection cables (AWG) | AWG 12 |
| Rated operating voltage | 690 V, 3~ |
| Rated current max. | 25 A |
| Dimensions | Width: 54 mmHeight: 160 mm |
| Support rails Qty/height | 1 / 7.5 mm |
| To fit manufacturer (model) | ABBEatonSiemensMS325MS450 max. 25 AMS451 max. 25 APKZM4 bis 25 APKE65 bis 25 A3RV10 31 bis 25 A |
| Packs of | 1 pc(s). |
| Net weight | 0.27 kg |
| Gross weight | 0.318 kg |
| Copper weight (kg per piece) | 0.041 |
| Customs tariff number | 85369095 |
| EAN | 4028177140745 |
| ETIM 9 | EC001531 |
| ECLASS 8.0 | 27370304 |
| Product description | SV Mini-PLS component adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 54x160 mm, support rail H: 7,5 mm |
