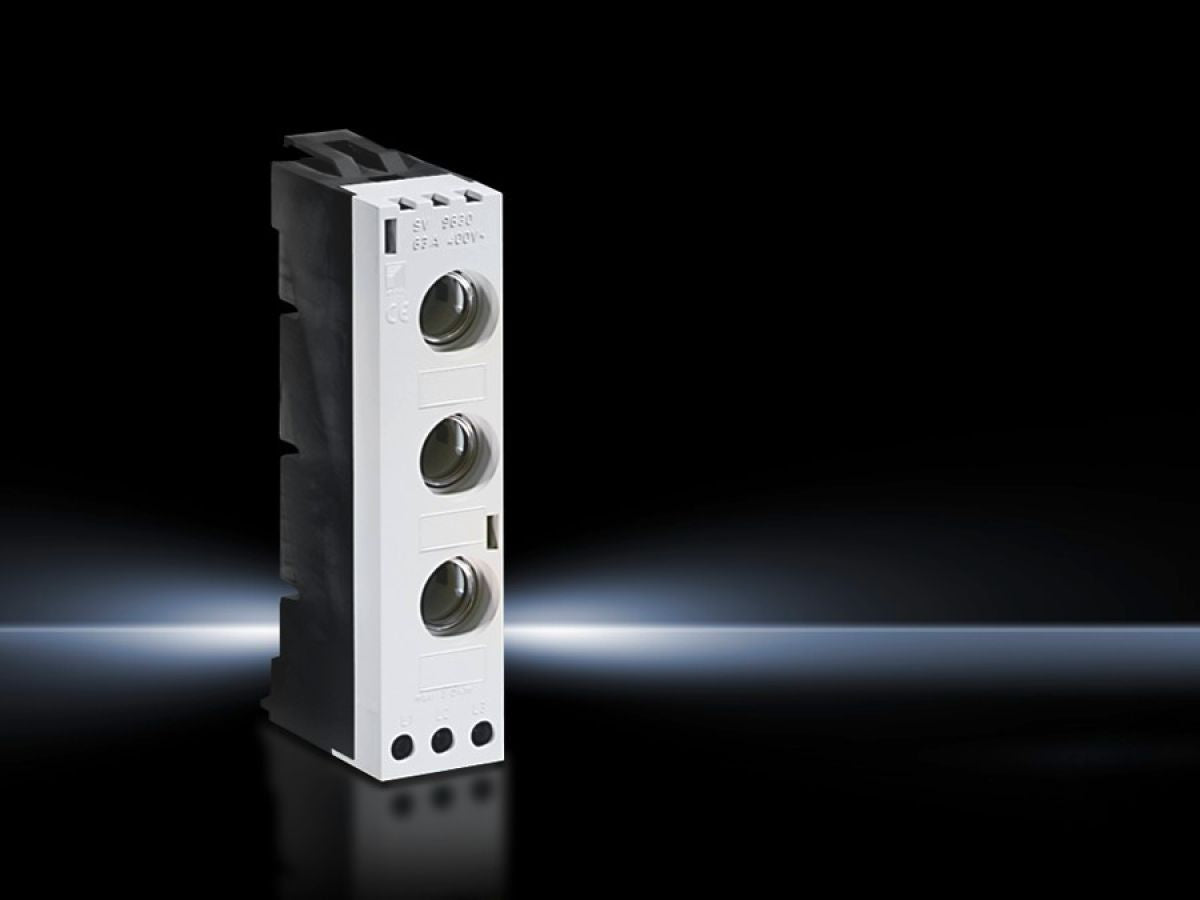

Rittal SV 9630.000, Mini-PLS bus-mounting fuse bases
Rittal SV 9630.000, Mini-PLS bus-mounting fuse bases
Regular price
€34,48
Regular price
Sale price
€34,48
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9630.000
Rated current 63 A
| Article number: | SV 9630.000 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | Chassis: RAL 9011Cover: RAL 7035 |
| Note | Wire end ferrules should be used with fine wire conductors |
| Type of electrical connection | Box terminal |
| Fuse inserts | D 02-E 18 (adaptor sleeve) |
| Rated operating voltage | 400 V |
| Rated current max. | 63 A |
| Dimensions | Width: 38 mmHeight: 160 mm |
| Connection of round conductors | 1.5 ‐ 16 mm² |
| Packs of | 1 pc(s). |
| Net weight | 0.3 kg |
| Gross weight | 0.308 kg |
| Copper weight (kg per piece) | 0.11 |
| Customs tariff number | 85369095 |
| EAN | 4028177149908 |
| ETIM 9 | EC001644 |
| ECLASS 8.0 | 27142120 |
| Product description | SV Mini-PLS bus-mounting fuse base, D02-E18, 63 A, 400 V, 3-pole, round conductor connection 1,5-16 mm², adaptor sleeve, including cover plate |
