Rittal

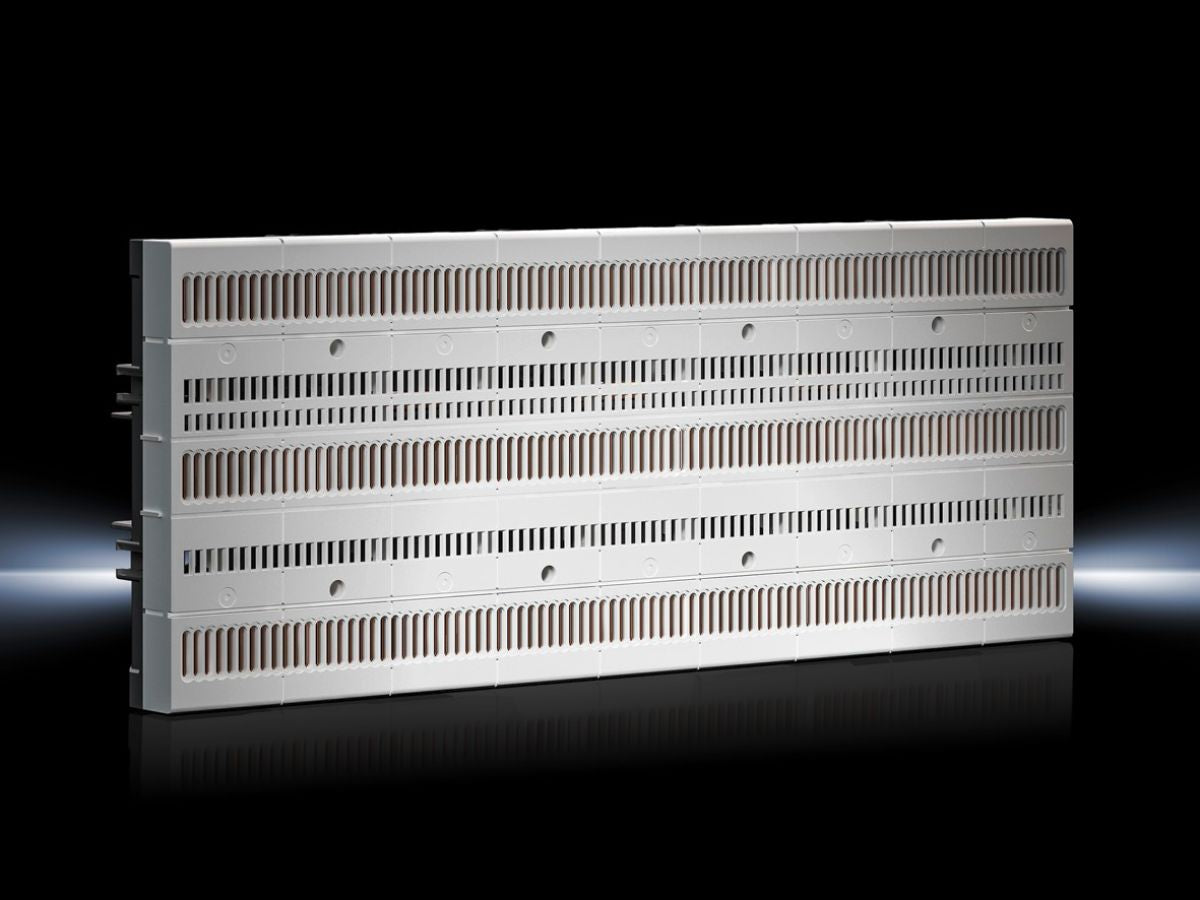

Rittal SV 9635.010, Board RiLine Compact
Rittal SV 9635.010, Board RiLine Compact
Regular price
€65,18
Regular price
Sale price
€65,18
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9635.010
Board with integral busbars.
| Article number: | SV 9635.010 |
| Function principle | Shock-hazard-protected busbar board for the safe accommodation and contacting of components, thanks to simple plug-in mounting |
| Material | PolyamidePolycarbonateE-CuFire protection corresponding to UL 94 |
| Colour | RAL 7035 |
| Supply includes | Integral busbars |
| IP protection category to IEC 60 529 | IP 2X |
| Standards | UL 508 |
| Rated current max. | 125 A |
| Rated current (UL) | 100 A |
| Rated operating voltage | 690 V (AC) |
| Rated operating voltage (max.) UL | 600 V (AC) |
| Max. pitch units @ 45 mm | 9 |
| Note | The technical data may vary for UL applications |
| For mounting on support rails | Yes |
| for mounting plate assembly | Yes |
| Number of poles | 3-pole |
| Dimensions | Width: 405 mmHeight: 160 mmDepth: 45.1 mm |
| Packs of | 1 pc(s). |
| Net weight | 1.3 kg |
| Gross weight | 1.46 kg |
| Copper weight (kg per piece) | 0.551 |
| Customs tariff number | 85469010 |
| EAN | 4028177817401 |
| ETIM 9 | EC001900 |
| ETIM 8 | EC001900 |
| ECLASS 8.0 | 27400613 |
| Product description | SV Board, 125 A, 690 V (AC). 600 V (DC), 3-pole, WHD: 405x160x45,1 mm |
