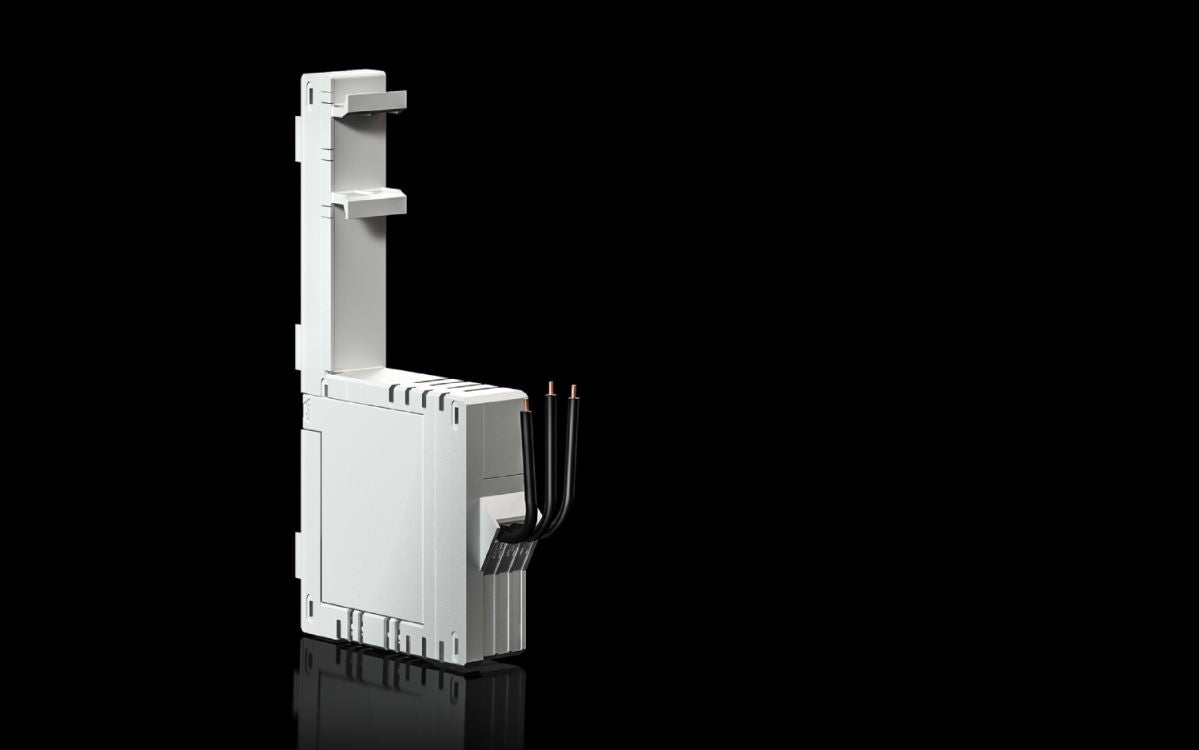

Rittal SV 9635.300, Component adaptor 3-pole
Rittal SV 9635.300, Component adaptor 3-pole
Regular price
€42,33
Regular price
Sale price
€42,33
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9635.300
For assembly of switchgear and protective gear.
| Article number: | SV 9635.300 |
| Design | With integral fuse holder |
| Function principle | For mechanical attachment and direct contacting of electrical equipment on the board |
| Material | PolyamideFire protection corresponding to UL 94 |
| Colour | RAL 7035 |
| Note | The technical data may vary for UL applications |
| Rated current max. | 16 A |
| Rated operating voltage | 690 V (AC) |
| Number of poles | 3-pole |
| For fuse type (class) | CC |
| Electrical ratings UL | Rated operating voltage (max.) UL: 600 V AC |
| Connection cables (AWG) | AWG 14 |
| Length of connection cable | 125 mm |
| Support rails Qty/height | 1 / 10 mm |
| Support rail type | static |
| Dimensions | Width: 22.5 mmHeight: 160 mmDepth: 80 mm |
| Packs of | 1 pc(s). |
| Net weight | 0.124 kg |
| Gross weight | 0.134 kg |
| Copper weight (kg per piece) | 0.02 |
| Customs tariff number | 85369095 |
| EAN | 4028177817388 |
| ETIM 9 | EC001531 |
| ECLASS 8.0 | 27370304 |
| Product description | SV Component adaptor, 16 A, 690 V (AC), 600 V (DC), 3-pole, for fuse 10x38 mm/Class CC, connection cable AWG 14 (L: 125 mm), WH: 22,5x160 mm |
