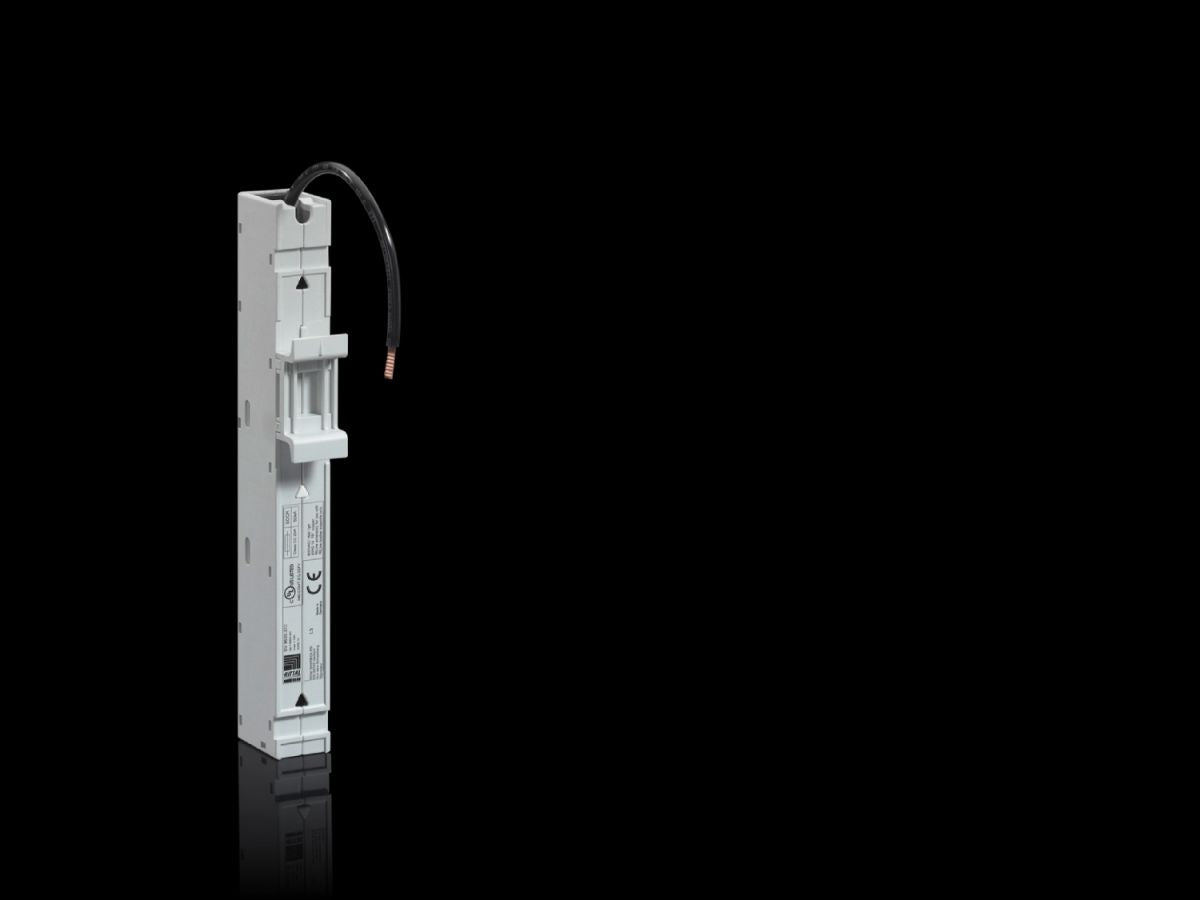

Rittal SV 9635.372, Component adaptor 1-pole
Rittal SV 9635.372, Component adaptor 1-pole
Regular price
€61,76
Regular price
Sale price
€61,76
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9635.372
For assembly of switchgear and protective gear.
| Article number: | SV 9635.372 |
| Design | L2 |
| Function principle | For mechanical attachment and direct contacting of electrical equipment on the board |
| Material | PolyamideFire protection corresponding to UL 94 |
| Colour | RAL 7035 |
| Note | Different adaptor versions are required depending on the preferred phase connection |
| Rated current max. | 16 A |
| Rated operating voltage | 690 V (AC), 1~ |
| Number of poles | Single-pole |
| Connection cables (AWG) | AWG 14 |
| Length of connection cable | 100 mm |
| Support rails Qty/height | 1 / 10 mm |
| Support rail type | static |
| Dimensions | Width: 18 mmHeight: 160 mmDepth: 35 mm |
| Packs of | 6 pc(s). |
| Net weight | 0.33 kg |
| Gross weight | 0.373 kg |
| Copper weight (kg per piece) | 0.008 |
| Customs tariff number | 85369095 |
| EAN | 4028177934580 |
| ETIM 9 | EC001531 |
| ECLASS 8.0 | 27370304 |
| Product description | SV component adaptor 16 A, 690 V (AC), 1-pole (variant L2), connection cable AWG 14, WH: 18 x 160 mm |
