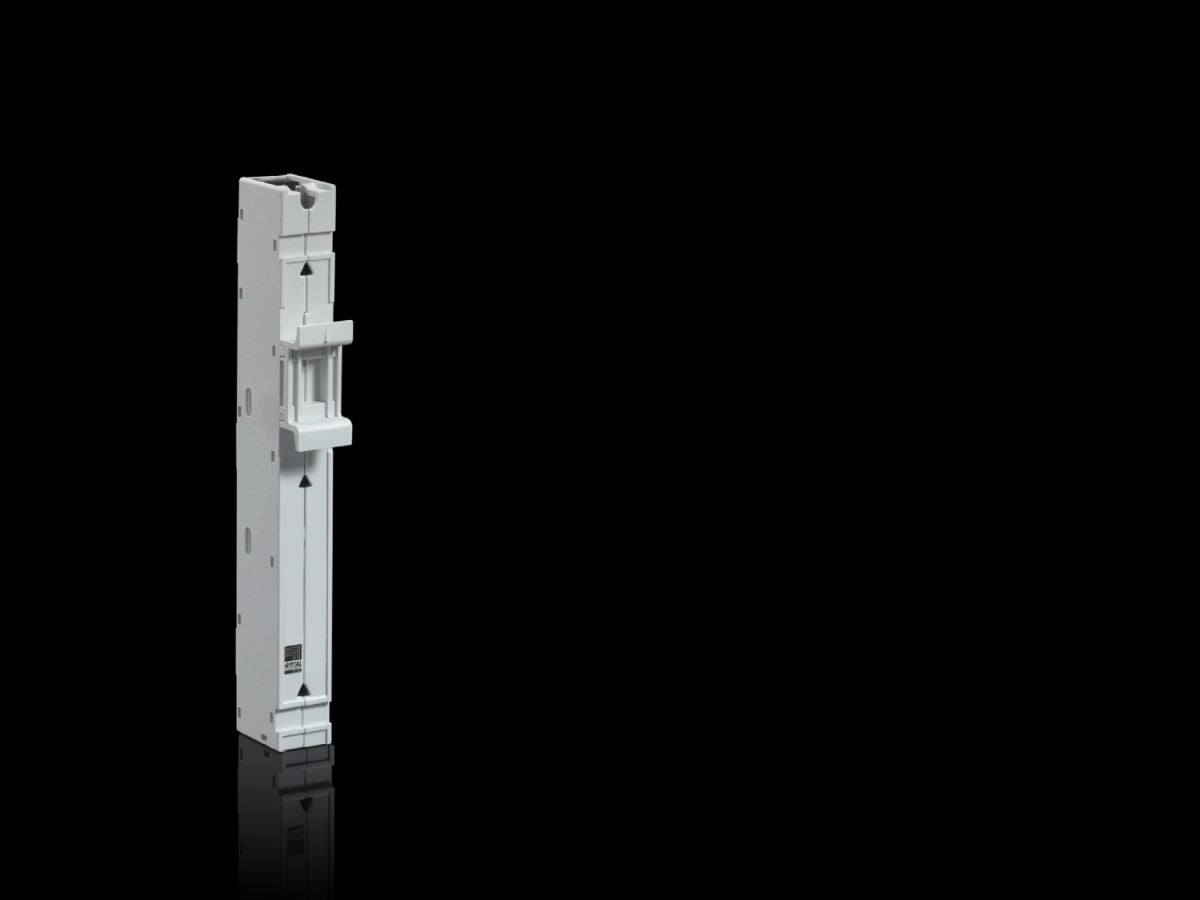

Rittal SV 9635.390, Component support without contact system
Rittal SV 9635.390, Component support without contact system
Regular price
€48,05
Regular price
Sale price
€48,05
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9635.390
For extending the mounting options on the board when using wide equipment.
| Article number: | SV 9635.390 |
| Function principle | For extending the mounting options on the board when using wide equipment |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Dimensions | Width: 18 mmHeight: 160 mmDepth: 34.5 mm |
| Support rail type | static |
| Support rails Qty/height | 1 / 10 mm |
| Packs of | 6 pc(s). |
| Net weight | 0.258 kg |
| Gross weight | 0.32 kg |
| Customs tariff number | 85369095 |
| EAN | 4028177934542 |
| ETIM 9 | EC001531 |
| ECLASS 8.0 | 27400613 |
| Product description | TS component support, WH: 18 x 160 mm, without contact system |
