Rittal

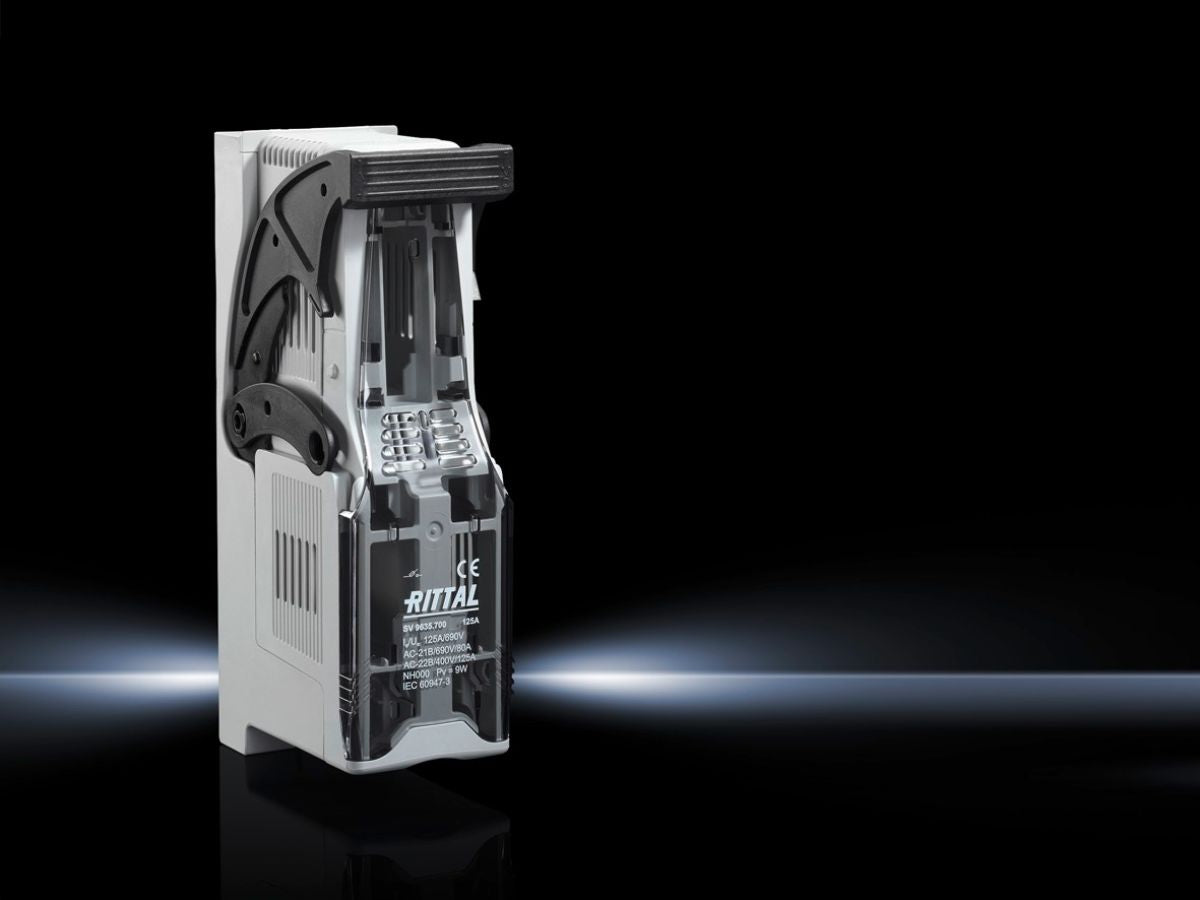

Rittal SV 9635.700, NH fuse-switch disconnector Size 000
Rittal SV 9635.700, NH fuse-switch disconnector Size 000
Regular price
€56,19
Regular price
Sale price
€56,19
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9635.700
For RiLine Compact busbar system.
| Article number: | SV 9635.700 |
| Function principle | To protect connected equipment |
| Material | PolyamideFire protection corresponding to UL 94-V0Contact tracks: Silver-plated hard copper |
| Colour | RAL 7035 |
| Test specification | IEC/DIN EN 60 947-3 |
| For NH size | 000 |
| Rated operating current max. | 125 A |
| Rated operating voltage | 440 V (DC), 3~ |
| Number of poles | 3-pole |
| Cable outlet | Top/bottom |
| Type of electrical connection | Box terminal |
| Connection of round conductors | 2.5 ‐ 50 mm² |
| Clamping area for laminated copper bars (W x H) | 10 x 10 mm |
| Dimensions | Width: 49.5 mmHeight: 174.5 mmDepth: 96 mm |
| Packs of | 1 pc(s). |
| Net weight | 0.52 kg |
| Gross weight | 0.562 kg |
| Copper weight (kg per piece) | 0.145 |
| Customs tariff number | 85369095 |
| EAN | 4028177937604 |
| ETIM 9 | EC001040 |
| ECLASS 8.0 | 27371401 |
| Product description | LV HRC fused interrupter, size 000, 690 V (RiLine Compact) |
