Rittal SV 9661.080, Busbars E-Cu with integral holes
Rittal SV 9661.080, Busbars E-Cu with integral holes
Regular price
€151,01
Regular price
Sale price
€151,01
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9661.080

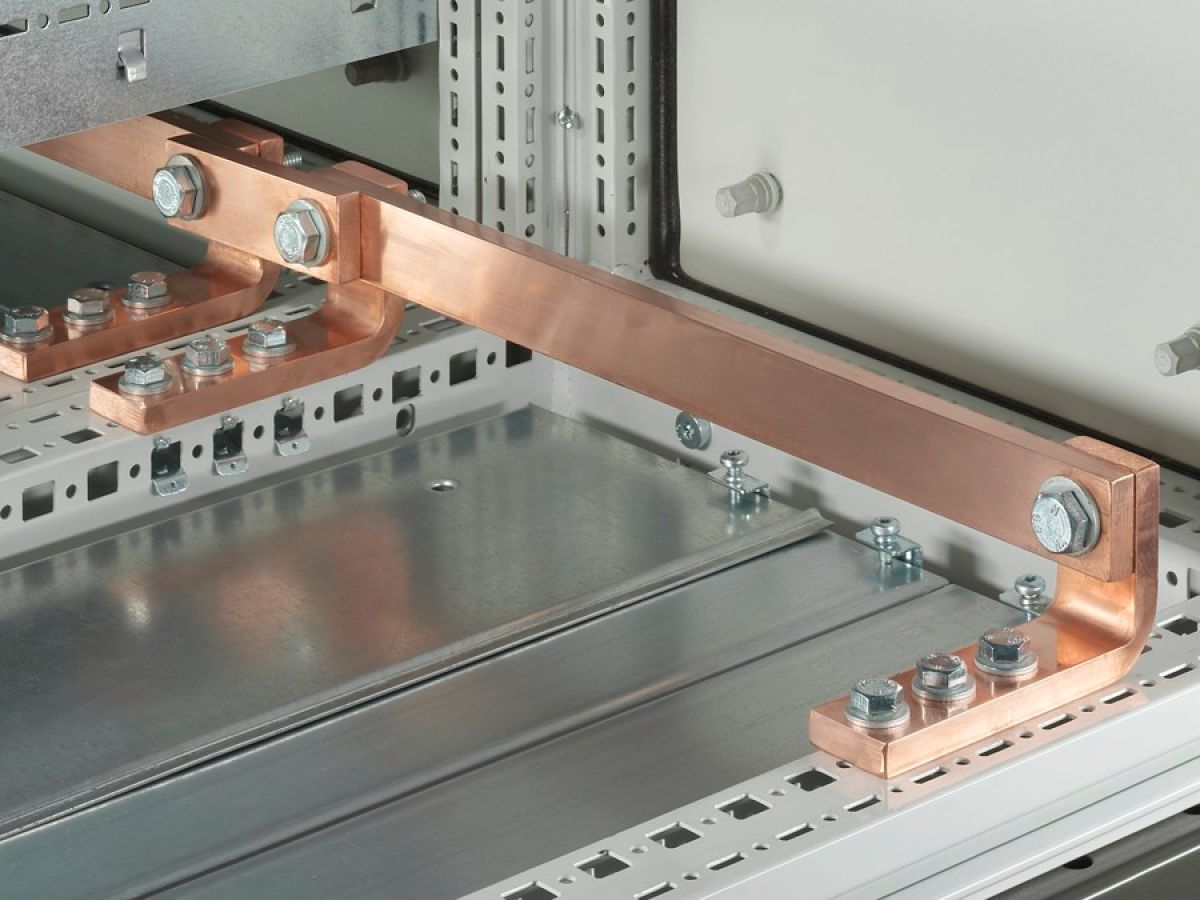

Suitable for direct installation in enclosures, busbar support, PE/PEN combination in conjunction with PE/PEN combination angle and baying bracket E-Cu.
| Article number: | SV 9661.080 |
| Product description | Suitable for direct installation in enclosures, busbar supports 9340.000/.010. 9340.004, 9342.014, 3052.000 and 3073.000. PE/PEN combinations in conjunction with PE/PEN combination angle and baying bracket E-Cu. |
| Material | E-Cu |
| Ø hole | 14 mm |
| Dimensions | Length: 792 mm |
| To fit | Width: = 800 mm |
| Cross-section | 10 mm x 40 mm |
| Packs of | 2 pc(s). |
| Net weight | 5.54 kg |
| Gross weight | 5.659 kg |
| Copper weight (kg per piece) | 2.77 |
| Customs tariff number | 74071000 |
| EAN | 4028177494725 |
| ETIM 9 | EC000329 |
| ECLASS 8.0 | 27400605 |
| Product description | SV Busbar E-Cu, WH: 40x10 mm, L: 792mm, with integral holes Ø 14 mm |
