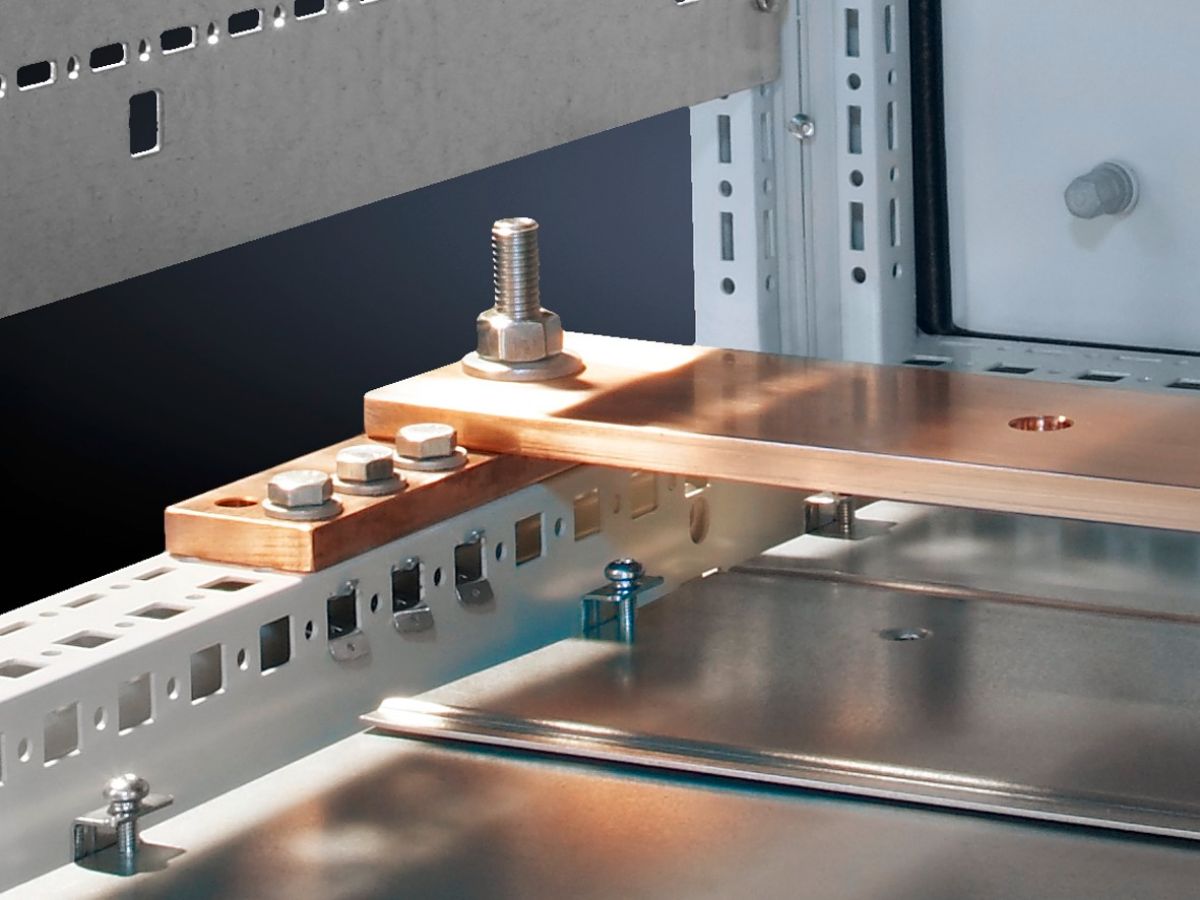

Rittal SV 9661.240, PE/PEN combination angle E-Cu for PE/PEN combinations
Rittal SV 9661.240, PE/PEN combination angle E-Cu for PE/PEN combinations
Regular price
€133,73
Regular price
Sale price
€133,73
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 05.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9661.240
The PE/PEN combination, comprising busbars, combination angles and baying brackets, supports type-tested configurations as per IEC 61 439-1.
| Article number: | SV 9661.240 |
| Product description | The PE/PEN combination, comprising busbars, combination angles and baying brackets, supports type-tested configurations as per IEC 61 439-1. |
| Benefits | Thanks to the pre-assembled combination angles, baying brackets and busbars customised to match the enclosure width, assembly is time-saving with cost reduction |
| Applications | Form 2-4 |
| Material | E-Cu |
| Supply includes | Assembly parts |
| Approved short-circuit current capability | Icw|60|kA, 1 sec. |
| To fit busbars | Busbar E-Cu with integral punchings |
| OUT_CROSS_SECTION_COL_SM | 40 ‐ 10 mm |
| To fit busbars | Width: 40, 80Height: 10, 10 mm |
| Packs of | 4 pc(s). |
| Net weight | 2.2 kg |
| Gross weight | 2.356 kg |
| Copper weight (kg per piece) | 0.44 |
| Customs tariff number | 74198090 |
| EAN | 4028177555808 |
| ETIM 9 | EC000329 |
| ECLASS 8.0 | 27400605 |
| Product description | SV PE/PEN combination angle E-Cu, WH: 40x10 mm, L: 135 mm |
