Rittal

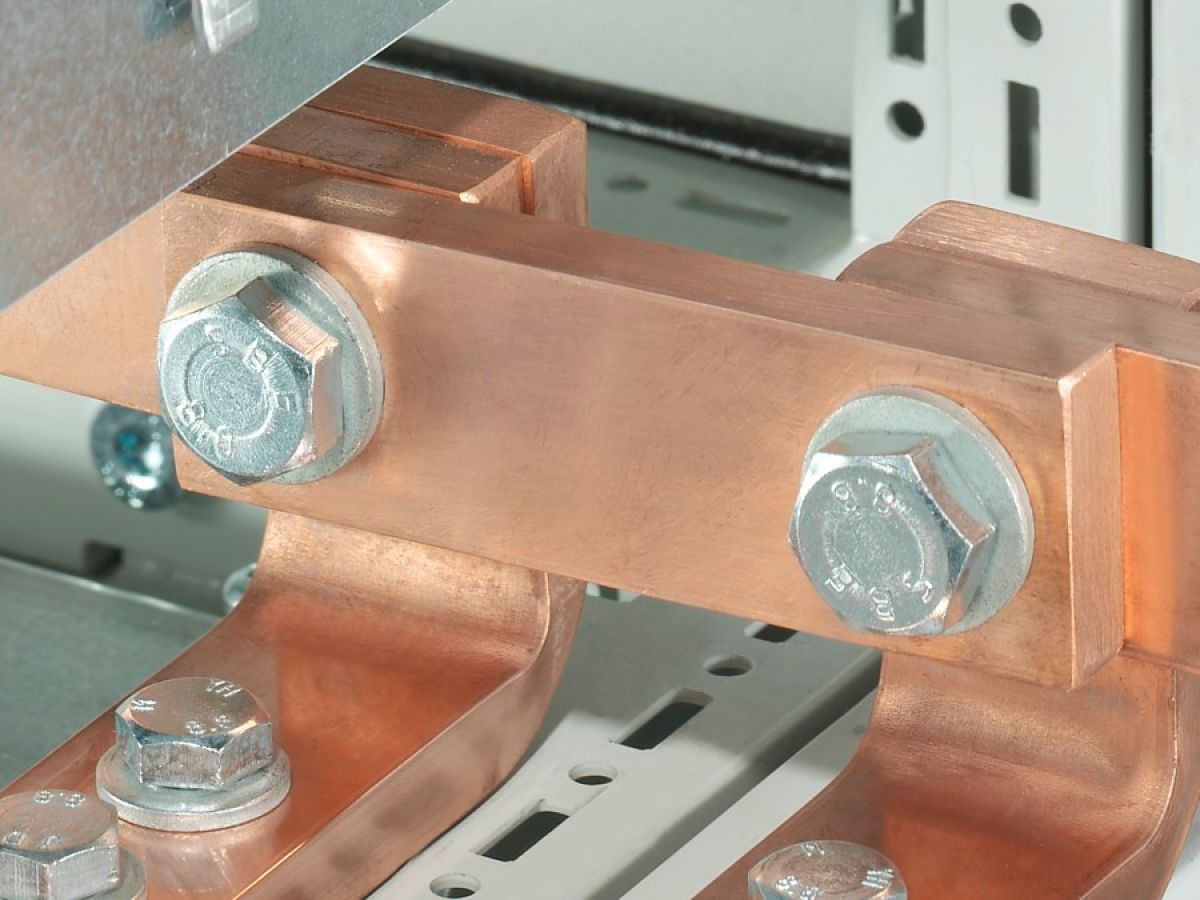

Rittal SV 9661.355, Baying bracket E-Cu
Rittal SV 9661.355, Baying bracket E-Cu
Regular price
€72,89
Regular price
Sale price
€72,89
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 03.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9661.355
The PE/PEN combination, comprising busbars, combination angles and baying brackets, supports type-tested configurations to IEC 61 439-1.
| Article number: | SV 9661.355 |
| Product description | For connecting rectangular busbars from enclosure to enclosure in conjunction with PE/PEN combination angles. |
| Material | E-Cu |
| To fit busbars | Busbar E-Cu with integral punchings |
| Dimensions | Length: 95 mm |
| To fit busbars | Width: 30Height: 5 mm |
| Packs of | 4 pc(s). |
| Net weight | 0.512 kg |
| Gross weight | 0.518 kg |
| Copper weight (kg per piece) | 0.128 |
| Customs tariff number | 74198090 |
| EAN | 4028177546707 |
| ETIM 9 | EC002270 |
| ECLASS 8.0 | 27409221 |
| Product description | SV Baying bracket E-Cu, L: 95 mm, for E-Cu 30x5 mm |
