Rittal

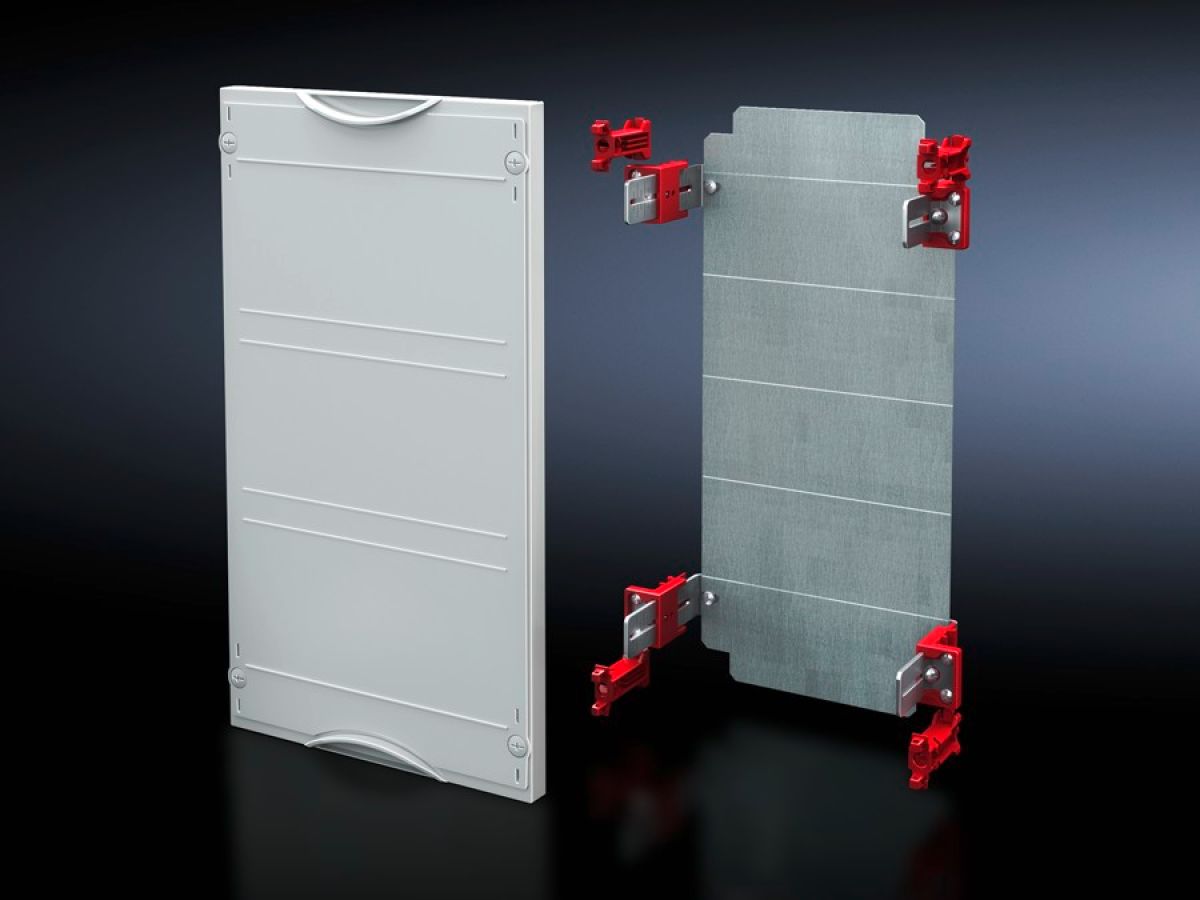

Rittal SV 9666.133, Mounting plate module
Rittal SV 9666.133, Mounting plate module
Regular price
€116,45
Regular price
Sale price
€116,45
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9666.133
With mounting plate. Cover is prepared for a lead seal.
| Article number: | SV 9666.133 |
| Product description | Possible installation depth 105 - 140 mm. Cover is prepared for a lead seal. |
| Material | Cover: PolystyreneMounting plate: Sheet steel, zinc-plated |
| Colour | RAL 7035 |
| Supply includes | Assembly parts |
| Dimensions | Width: 750 mmHeight: 300 mm |
| Size | Width units (WU) @ 250 mm: 3Height units (U) @ 150 mm: 2 |
| Dimensions mounting plate (W x H) | 688 mm x 266 mm |
| Packs of | 1 pc(s). |
| Net weight | 4.8 kg |
| Gross weight | 4.9 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177676084 |
| ETIM 9 | EC001893 |
| ECLASS 8.0 | 27400608 |
| Product description | SV Mounting plate module (ISV), 3 WU (750 mm), 2 U (300 mm), mounting plate WH: 688x266 mm |
