Rittal

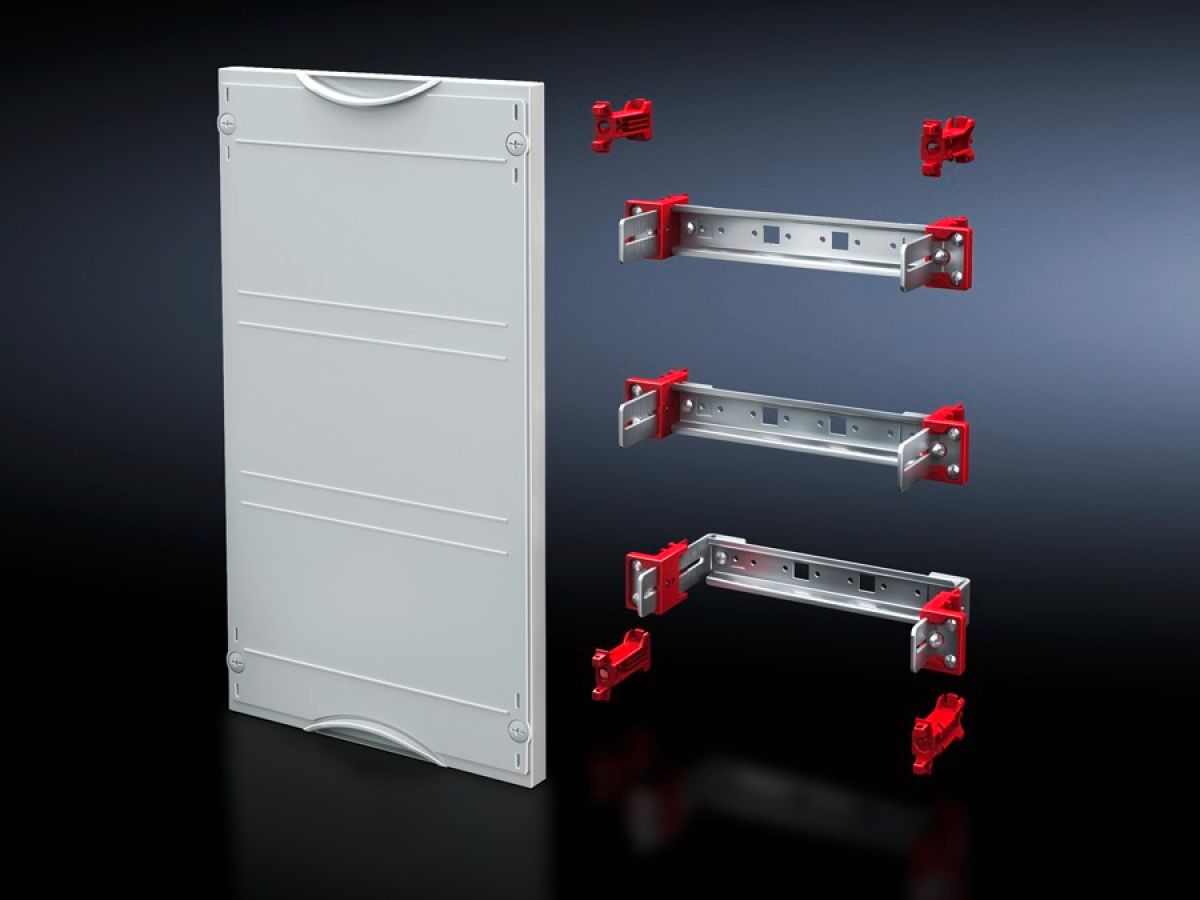

Rittal SV 9666.180, Support rail module
Rittal SV 9666.180, Support rail module
Regular price
€62,04
Regular price
Sale price
€62,04
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9666.180
For installing terminal blocks, switchgear, etc. With support rails 35/15 mm. Cover is prepared for a lead seal.
| Article number: | SV 9666.180 |
| Product description | For installing terminal blocks, switchgear, etc. with support rails 35 x 15 mm. Adjustable on a 25 mm pitch pattern. Cover is prepared for a lead seal. |
| Material | Cover: PolystyreneSupport rail: Sheet steel, zinc-plated |
| Colour | RAL 7035 |
| Supply includes | Assembly parts |
| Dimensions | Width: 250 mmHeight: 450 mm |
| Size | Width units (WU) @ 250 mm: 1Height units (U) @ 150 mm: 3 |
| Number of support rails 35/15 | 3 |
| Packs of | 1 pc(s). |
| Net weight | 1.55 kg |
| Gross weight | 1.557 kg |
| Customs tariff number | 85369001 |
| EAN | 4028177676145 |
| ETIM 9 | EC000264 |
| ECLASS 8.0 | 27142411 |
| Product description | SV Support rail module (ISV), 1 WU (250 mm), 3 U (450 mm), 3 support rails |
