Rittal

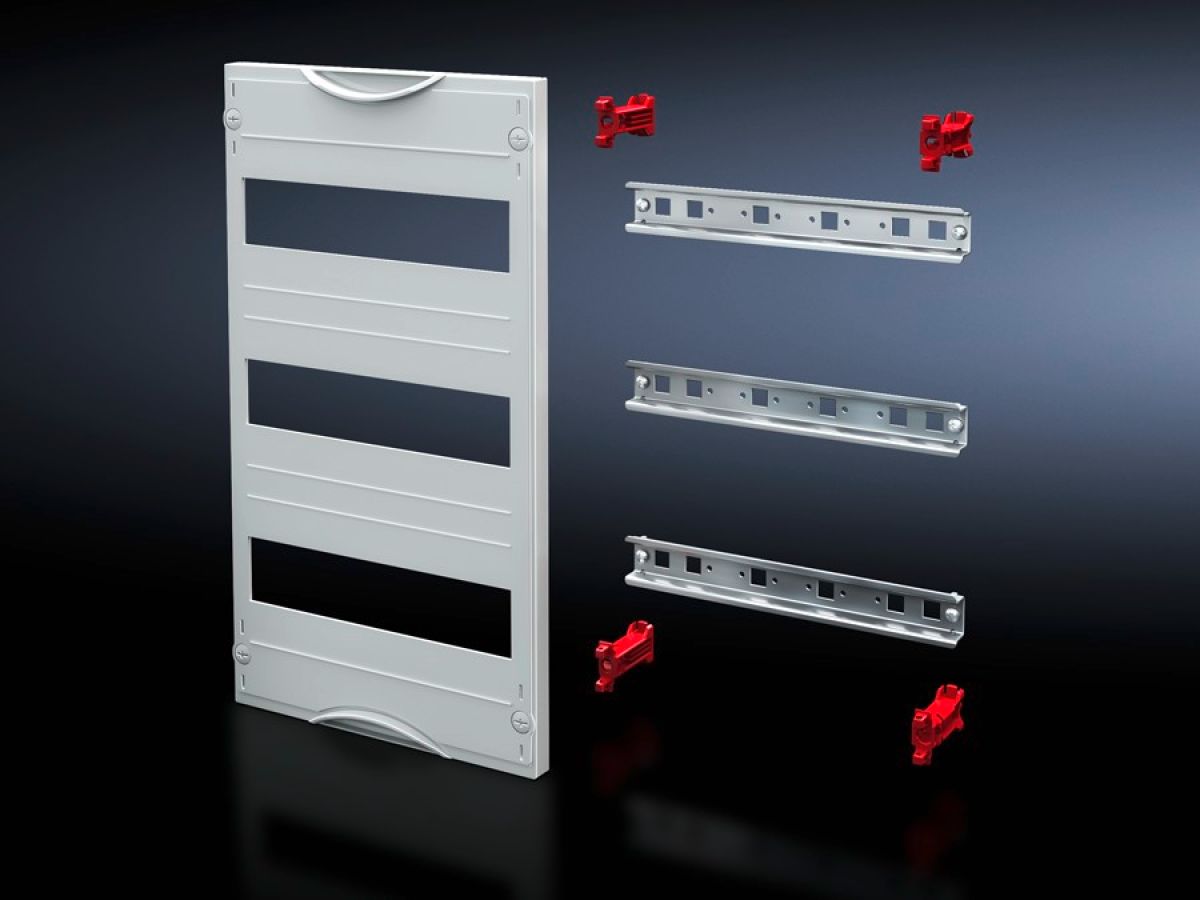

Rittal SV 9666.293, DIN rail mounted device module
Rittal SV 9666.293, DIN rail mounted device module
Regular price
€96,03
Regular price
Sale price
€96,03
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9666.293
Cover is prepared for a lead seal.
| Article number: | SV 9666.293 |
| Product description | To accommodate DIN rail mounted devices. With support rails 35 x 15 mm. Cover is prepared for a lead seal. |
| Material | Cover: PolystyreneSupport rail: Sheet steel, zinc-platedCover: Polystyrene |
| Colour | RAL 7035 |
| Supply includes | Assembly parts |
| Dimensions | Width: 750 mmHeight: 300 mm |
| Size | Width units (WU) @ 250 mm: 3Height units (U) @ 150 mm: 2Max. pitch units @ 18 mm: 72 |
| Number of support rails | 2 |
| Number of cut-outs | 6 |
| Packs of | 1 pc(s). |
| Net weight | 2.45 kg |
| Gross weight | 2.46 kg |
| Customs tariff number | 85369001 |
| EAN | 4028177676282 |
| ETIM 9 | EC000264 |
| ECLASS 8.0 | 27142411 |
| Product description | SV DIN rail mounted device module (ISV), 3 WU (750 mm), 2 U (300 mm), 6 x 12 divider units |
